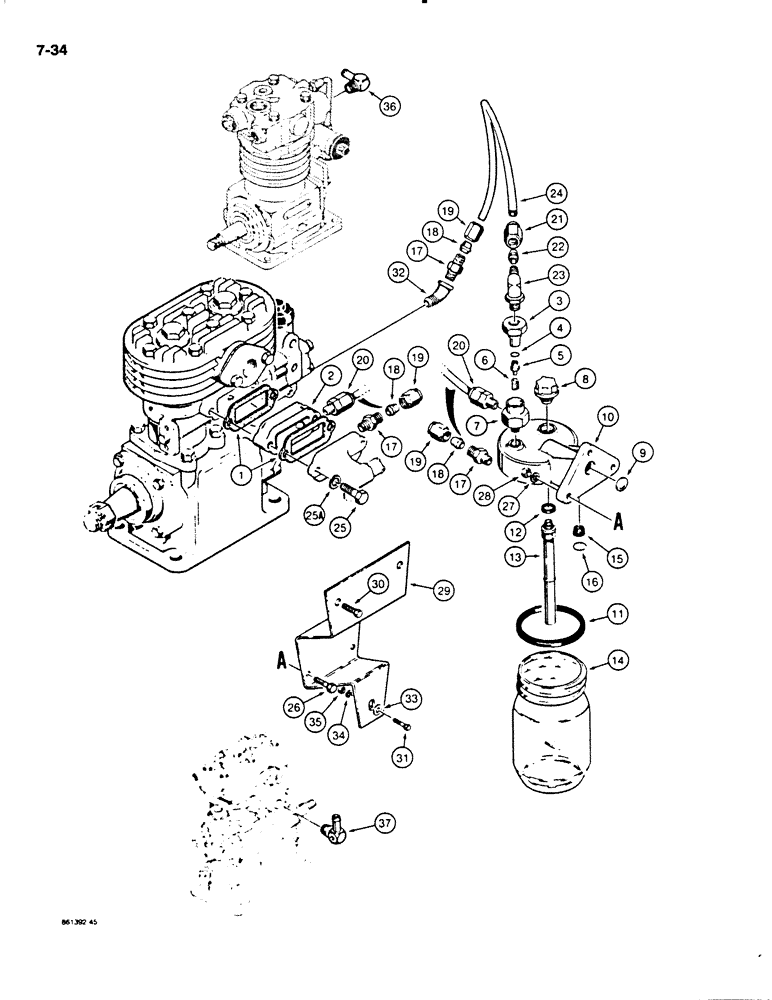

Запчасти Case W20C (7-34) - ALCOHOL EVAPORATOR (07) - BRAKES

L73283

KIT

ALCOHOL EVAPORATOR ASSEMBLY - air compressor, Includes: Ref. 1 - 37

1шт.

L46372

KIT

- alcohol evaporator, Includes: Ref. 1 - 16

1шт.

The L46372 alcohol evaporator kit used only on the two-cylinder Midland Ross compressor. No alcohol evaporator released for the one-cylinder Bendix compressor.

1шт.

1

L31457

GASKET

- adapter

2шт.

2

L32930

ADAPTER

- compressor

1шт.

L33157

VALVE

ASSEMBLY - check, at evaporator

1шт.

3

L33162

NUT

- cap

1шт.

4

L33161

O-RING,0.299" ID x 0.072" Width

GROMMET - valve

1шт.

5

L33160

VALVE

CHECK VALVE - evaporator

1шт.

6

L33159

SPRING

- valve

1шт.

7

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

L33145

EVAPORATOR

ALCOHOL EVAPORATOR - body and jar assembly

1шт.

8

L33151

PLUG

- filter

1шт.

9

41-102

PLUG,Exp, 1/2"

- expansion, steel, 1/2" diameter

1шт.

10

L33146

BODY

- alcohol evaporator

1шт.

11

L33153

SEALING RING

-, Serial Range: housing-jar

1шт.

12

L33156

RING

- sealing, evaporator tube

1шт.

13

L33152

TUBE,0.25" ID x 0.33" OD x 4.87" L

- evaporator

1шт.

14

L33154

RESERVOIR

JAR - alcohol evaporator, plastic

1шт.

15

L33150

FILTER

- air intake

1шт.

16

A58439

RETAINER

RING - retaining, filter

1шт.

222-5002

HYD CONNECTOR,1/2"-20 x 1/8" NPT, Hi-seal

FITTING ASSEMBLY - flex tube, Includes: Ref. 17 & 18

3шт.

17

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

18

222-5047

SLEEVE,1/4" Tube

- fitting

1шт.

19

222-5060

NUT,1/2"-20

NUT - fitting

1шт.

20

L46110

TUBE,17" L

- 1/4" (6 mm) OD, cut to length

1шт.

222-5023

ELBOW,90º, 1/2"-20 x 1/8" NPT, Hi-seal

FITTING ASSEMBLY - flex tube, 90 degree, Includes: Ref. 21 - 23

1шт.

21

222-5060

NUT,1/2"-20

NUT - fitting

1шт.

22

222-5047

SLEEVE,1/4" Tube

- fitting

1шт.

23

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

24

L48192

TUBE,0.25" OD

- check valve to governor

1шт.

25

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex head, 5/16"- 18 NC x 1-1/2"

2шт.

25a

192-110

LOCK WASHER,5/16"

WASHER - lock, 5/16"

2шт.

26

13-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5, Full Thd

3шт.

27

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

28

25-104

NUT,1/4"-20, G5

3шт.

29

L46593

BRACKET

- evaporator mounting

1шт.

30

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

31

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

32

221-401

ELBOW,45 Degree, 1/8"-27, NPT

STREET ELBOW - 45 degree

1шт.

33

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

34

92-6

LOCK WASHER,3/8"

1шт.

35

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

36

L114542

ELBOW

- 90 degree, special, used with Bendix manufactured water cooled compressor

1шт.

37

L107160

FITTING

ELBOW - 90 degree, special, used with Midland-Ross manufactured water cooled compressor

1шт.
