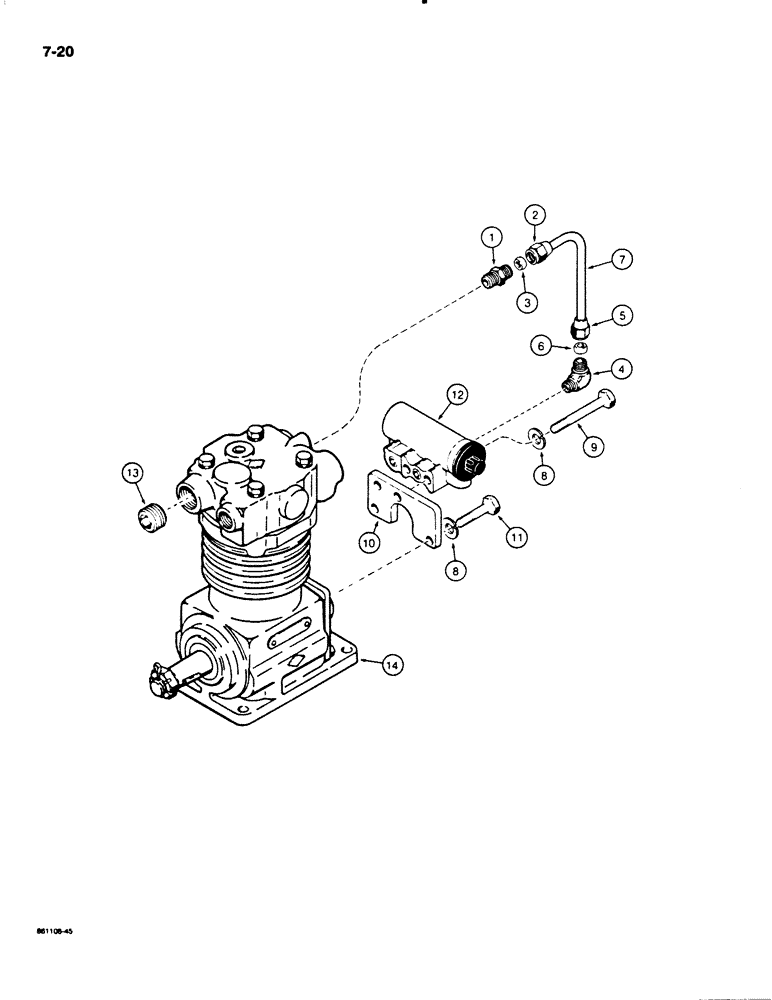

Запчасти Case W20C (7-20) - L111007 AIR COMPRESSOR, WATER COOLED (07) - BRAKES

L111007

COMPRESSOR

AIR COMPRESSOR ASSEMBLY - water cooled, Bendix part No. 102795, Includes: Ref. 1 - 14

1шт.

222-1838

FITTING,7/16"-24 x 1/8" NPT

ADAPTER - straight, compression fitting, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - compression fitting

1шт.

2

NSS

NOT SOLD SEPARAT

NUT - compression fitting

1шт.

3

NSS

NOT SOLD SEPARAT

SLEEVE - compression fitting

1шт.

222-1845

ELBOW,90 Degree, 7/16"-24 x 1/8" NPT, Comp

- 90 degree, compression fitting, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - compression fitting

1шт.

5

NSS

NOT SOLD SEPARAT

NUT - compression fitting

1шт.

6

NSS

NOT SOLD SEPARAT

SLEEVE - compression fitting

1шт.

7

NSS

NOT SOLD SEPARAT

TUBE - governor

1шт.

8

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

9

113-133

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

- hex head, 5/16" - 18 NC x 3-1/4", plated

2шт.

10

NSS

NOT SOLD SEPARAT

BRACKET - governor mount

1шт.

11

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

12

D82776

GOVERNOR

ASSEMBLY - air compressor, parts list Figure 7-28

1шт.

13

221-845

PLUG,Hex Soc, 3/4"-14

- hex socket head, 3/4" NPT

1шт.

14

N9712

COMPRESSOR

AIR COMPRESSOR - water cooled, parts list Figure 7-22

1шт.
