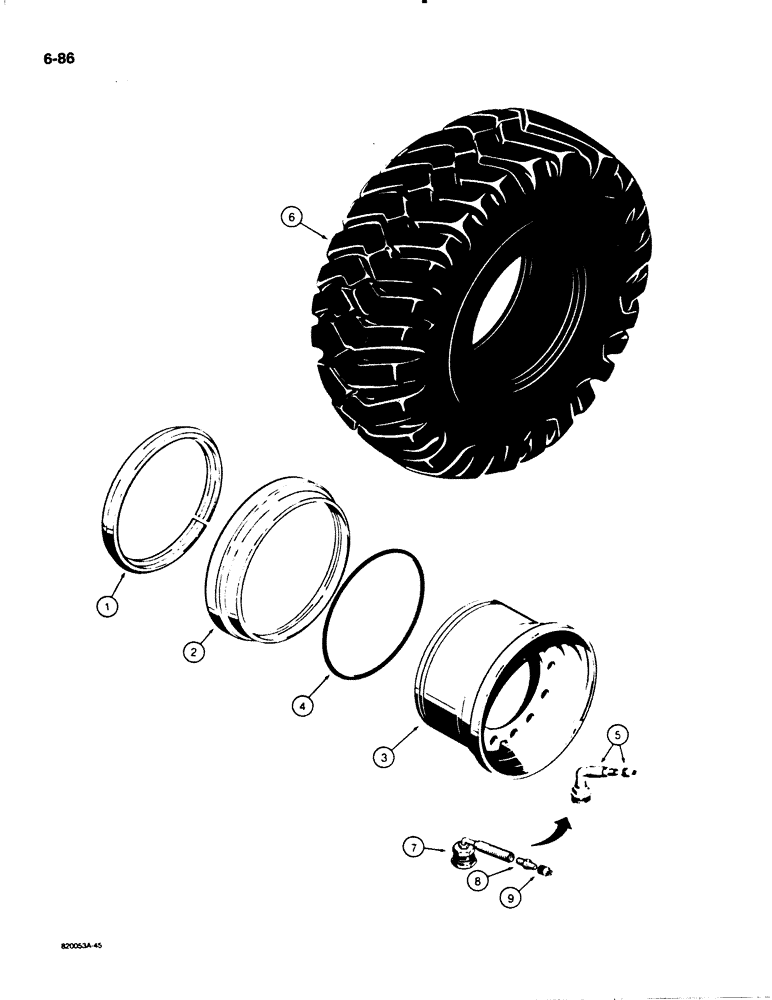

Запчасти Case W20C (6-86[B]) - RIMS AND TIRES, 20.5 X 25 (06) - POWER TRAIN

L111879

RIM

WHEEL ASSEMBLY - GKN or EWC

4шт.

1

A19100

LOCKING RING

RING - lock, used on EWC

1шт.

1

N8338

RING

- lock, used on GKN

1шт.

2

N8337

RING

- side, rim, used on GKN

1шт.

2

L12685

RING

- side, rim, used on EWC

1шт.

3

L102650

WHEEL

RIM - tire, used on EWC

1шт.

3

NSS

NOT SOLD SEPARAT

RIM - tire, used on GKN

1шт.

4

A19101

O-RING,6.6mm Thk x 590.55mm ID

- seal

4шт.

6

REF

INSTRUCTION

TIRE - 17.50 x 25, purchase locally

4шт.

7

L11405

VALVE

- 80 degree

4шт.

8

L11406

ADAPTER

- valve

4шт.

9

L19664

VALVE STEM

CAP - valve

4шт.
