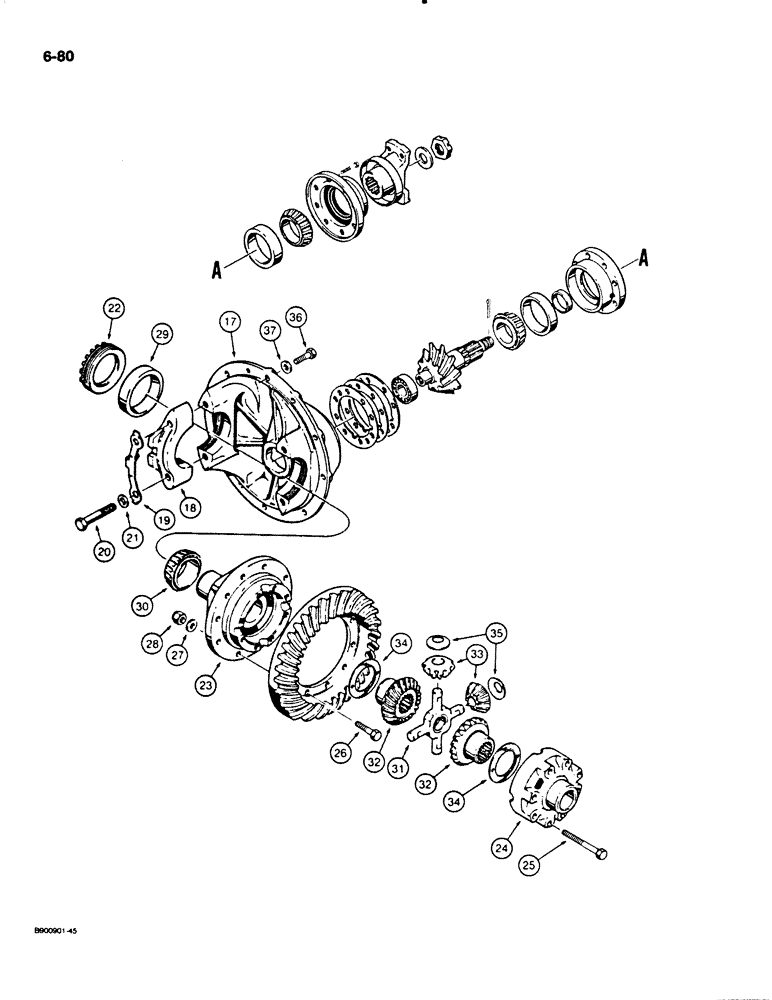

Запчасти Case W20C (6-80) - W20C AXLE DIFFERENTIAL, L126097 AND L126098 AXLES (06) - POWER TRAIN

L126097

AXLE HOUSING

AXLE ASSEMBLY - front, GKN No. RP12.10-314, continued from previous page

1шт.

See Figure 6-56 for identification and service information.

1шт.

L126098

AXLE HOUSING

AXLE ASSEMBLY - rear, GKN No. RP10.10-321, continued from previous page

1шт.

See Figure 6-56 for identification and service information.

1шт.

S300273

DIFFERENTIAL

ASSEMBLY - axle, continued

1шт.

D80558

DIFFERENTIAL

CARRIER ASSEMBLY - differential

1шт.

17

NSS

NOT SOLD SEPARAT

CASE - carrier

1шт.

18

NSS

NOT SOLD SEPARAT

CAP - bearing

2шт.

19

D74484

PLATE ASSY.

PLATE - lock

2шт.

20

826-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

- hex, 16 - 2 x 90 mm, class 10.9

4шт.

21

D74504

WASHER

- flat

4шт.

22

D74477

NUT

RING - bearing adjusting

2шт.

D74449

CAGE ASSY.

CASE ASSEMBLY

1шт.

23

NSS

NOT SOLD SEPARAT

CASE - flange half

1шт.

24

NSS

NOT SOLD SEPARAT

CASE - plain half

1шт.

25

514-807

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

- hex, self-locking, 12 - 1.75 x 100 mm, class 10.9

8шт.

26

S300023

WHEEL BOLT

BOLT - special, ring gear to case flange half

12шт.

27

D74508

WASHER

- special, ring gear bolt

12шт.

28

131-1248

LOCK NUT,1/2"-20, GC

NUT, LOCK, 1/2"-20, GC

12шт.

29

13363D

TAPERED BEARING

CUP - bearing

2шт.

30

ST2007A

TAPERED BEARING,2.625" ID x 4.4375" OD x 1.1875"

BEARING - tapered roller

2шт.

31

N9844

TOGGLE

SPIDER - differential

1шт.

32

D74472

GEAR

SIDE GEAR - differential

2шт.

33

D74473

BEVEL GEAR

PINION GEAR - differential

4шт.

34

D74474

WASHER

THRUST WASHER - side gear

2шт.

35

N9843

CONE WASHER

THRUST WASHER - pinion

4шт.

36

514-806

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9

- hex, self-locking, 12 - 1.75 x 35 mm, class 10.9

10шт.

37

D74508

WASHER

- flat, special, differential carrier mounting bolt

10шт.
