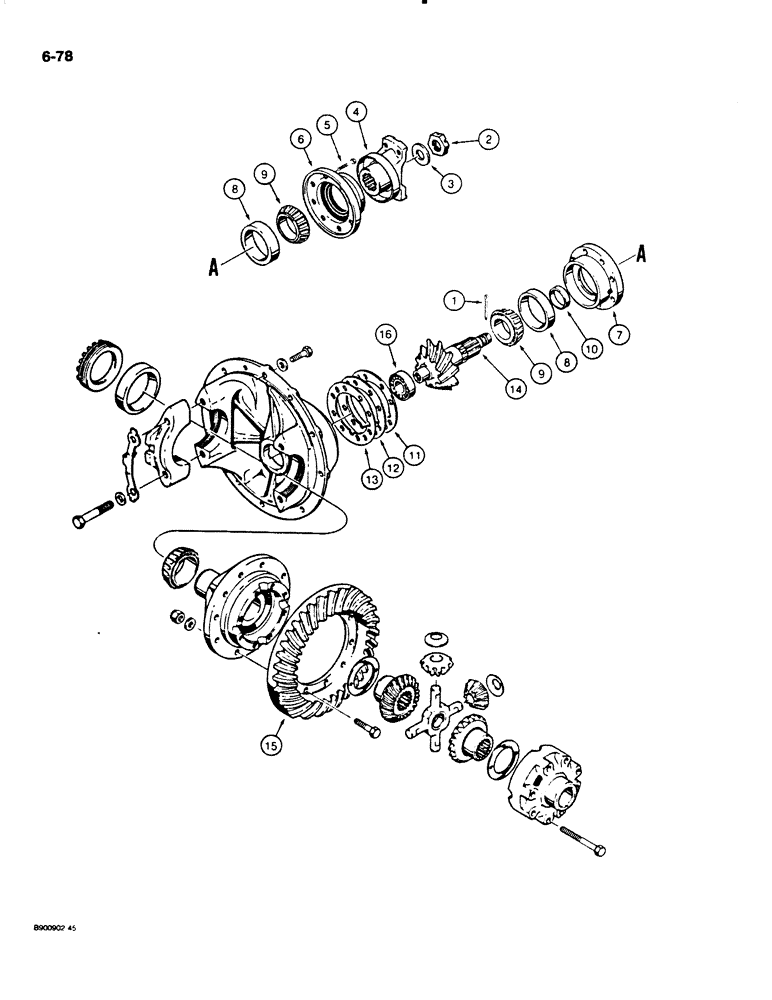

Запчасти Case W20C (6-78) - W20C AXLE DIFFERENTIAL, L126097 AND L126098 AXLES (06) - POWER TRAIN

L126097

AXLE HOUSING

AXLE ASSEMBLY - front, GKN No. RP12.10-314, Includes: Ref. 1 - 37

1шт.

See Figure 6-56 for identification and service information.

1шт.

L126098

AXLE HOUSING

AXLE ASSEMBLY - rear, GKN No. RP10.10-321, Includes: Ref. 1 - 37

1шт.

See Figure 6-56 for identification and service information.

1шт.

S300273

DIFFERENTIAL

ASSEMBLY - axle, Includes: Ref. 1- 37

1шт.

1

632-135

COTTER PIN,M3.2 x 45

- 3 mm x 45 mm

1шт.

2

D74513

SLOTTED NUT

CASTLE NUT - yoke

1шт.

3

D74512

WASHER

- flat

1шт.

4

D74480

FORK

YOKE AND SLINGER - coupling

1шт.

5

514-701

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

- hex, self-locking, 10 -1.5 x 45 mm, class 10.9

8шт.

6

D74479

COVER

AND SEAL - pinion shaft

1шт.

7

N7071

CAGE ASSY.

CAGE AND BEARINGS - pinion shaft

1шт.

8

917217R1

BEARING, CUP

CUP - bearing

2шт.

9

917218R1

TAPERED BEARING

- tapered roller

2шт.

D80557

SET

KIT - spacer, bearing, set of 10

1шт.

10

NSS

NOT SOLD SEPARAT

SPACER - .2145 inch (5.450 mm)

1шт.

10

NSS

NOT SOLD SEPARAT

SPACER - .2155 inch (5.475 mm)

1шт.

10

NSS

NOT SOLD SEPARAT

SPACER - .2165 inch (5.500 mm)

1шт.

10

NSS

NOT SOLD SEPARAT

SPACER - .2175 inch (5.525 mm)

1шт.

10

NSS

NOT SOLD SEPARAT

SPACER - .2185 inch (5.550 mm)

1шт.

10

NSS

NOT SOLD SEPARAT

SPACER - .2195 inch (5.575 mm)

1шт.

10

NSS

NOT SOLD SEPARAT

SPACER - .2244 inch (5.700 mm)

1шт.

10

NSS

NOT SOLD SEPARAT

SPACER - .228 inch (5.79 mm)

1шт.

10

NSS

NOT SOLD SEPARAT

SPACER - .232 inch (5.89 mm)

1шт.

10

NSS

NOT SOLD SEPARAT

SPACER - .236 inch (5.99 mm)

1шт.

11

D74481

SHIM,.076mm Thk

(.003") .076mm Thk

1шт.

12

D74482

SHIM,0.127mm Thk

(.005") 0.127mm Thk

1шт.

13

D74483

SHIM,0.254mm Thk

(.010") 0.254mm Thk

1шт.

D80555

GEAR WHEEL

KIT - gear and pinion differential

1шт.

14

NSS

NOT SOLD SEPARAT

PINION SHAFT - differential

1шт.

15

NSS

NOT SOLD SEPARAT

RING GEAR - differential

1шт.

16

A18182

BALL BEARING,27.75mm ID x 62mm OD x 18mm W

BEARING - pinion shaft

1шт.
