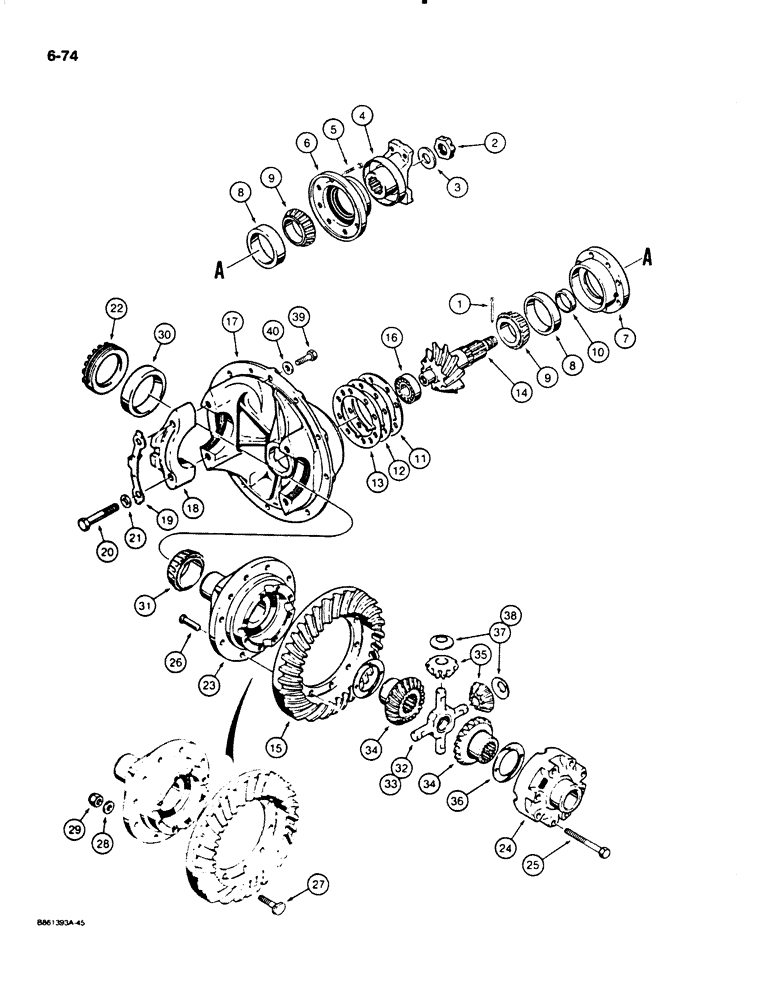

Запчасти Case W20C (6-74) - W20C AXLE DIFFERENTIAL (06) - POWER TRAIN

L60900

AXLE

ASSEMBLY - front, GKN No. RP10.10H-10133-00307, Includes: Ref. 1 -40

1шт.

See Figure 6-56 for identification and service information.

1шт.

L78001

AXLE HOUSING

AXLE ASSEMBLY - rear, GKN No. RP10.10H-10133-00306, Includes: Ref. 1 -40

1шт.

See Figure 6-56 for identification and service information.

1шт.

L113584

AXLE

ASSEMBLY - front, GKN No. RP12.10-301, Includes: Ref. 1 -40

1шт.

See Figure 6-56 for identification and service information.

1шт.

L113585

AXLE

ASSEMBLY - rear, GKN No. RP10.10-309, Includes: Ref. 1 -40

1шт.

See Figure 6-56 for identification and service information.

1шт.

L118129

AXLE HOUSING

AXLE ASSEMBLY - front, GKN No. RP12.10-305, Includes: Ref. 1 -40

1шт.

See Figure 6-56 for identification and service information.

1шт.

L118130

AXLE HOUSING

AXLE ASSEMBLY - rear, GKN No. RP10.10-314, Includes: Ref. 1 -40

1шт.

See Figure 6-56 for identification and service information.

1шт.

L118897

AXLE HOUSING

AXLE ASSEMBLY - front, GKN No. RP12.10-313, Includes: Ref. 1 -40

1шт.

See Figure 6-56 for identification and service information.

1шт.

L118896

AXLE HOUSING

AXLE ASSEMBLY - rear, GKN No. RP10.10-319, Includes: Ref. 1 -40

1шт.

See Figure 6-56 for identification and service information.

1шт.

N9842

DIFFERENTIAL

ASSEMBLY - axle, Includes: Ref. 1 -38

1шт.

1

632-135

COTTER PIN,M3.2 x 45

- 3 mm x 45 mm

1шт.

2

D74513

SLOTTED NUT

CASTLE NUT - yoke

1шт.

3

D74512

WASHER

- flat

1шт.

4

D74480

FORK

YOKE AND SLINGER - coupling

1шт.

5

514-701

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

- hex, self-locking, 10 - 1.5 x 45 mm, class 10.9

8шт.

6

D74479

COVER

AND SEAL - pinion shaft

1шт.

7

N7071

CAGE ASSY.

CAGE AND BEARINGS - pinion shaft

1шт.

8

917217R1

BEARING, CUP

CUP - bearing

2шт.

9

917218R1

TAPERED BEARING

- tapered roller

2шт.

D80557

SET

KIT - spacer, bearing, set of 10

1шт.

10

NSS

NOT SOLD SEPARAT

SPACER - .2145 inch (5.450 mm)

1шт.

10

NSS

NOT SOLD SEPARAT

SPACER - .2155 inch (5.475 mm)

1шт.

10

NSS

NOT SOLD SEPARAT

SPACER - .2165 inch (5.500 mm)

1шт.

10

NSS

NOT SOLD SEPARAT

SPACER - .2175 inch (5.525 mm)

1шт.

10

NSS

NOT SOLD SEPARAT

SPACER - .2185 inch (5.550 mm)

1шт.

10

NSS

NOT SOLD SEPARAT

SPACER - .2195 inch (5.575 mm)

1шт.

10

NSS

NOT SOLD SEPARAT

SPACER - .2244 inch (5.700 mm)

1шт.

10

NSS

NOT SOLD SEPARAT

SPACER - .228 inch (5.79 mm)

1шт.

10

NSS

NOT SOLD SEPARAT

SPACER - .232 inch (5.89 mm)

1шт.

10

NSS

NOT SOLD SEPARAT

SPACER - .236 inch (5.99 mm)

1шт.

11

D74481

SHIM,.076mm Thk

(.003") .076mm Thk

1шт.

12

D74482

SHIM,0.127mm Thk

(.005") 0.127mm Thk

1шт.

13

D74483

SHIM,0.254mm Thk

(.010") 0.254mm Thk

1шт.

D80555

GEAR WHEEL

KIT - gear and pinion, differential

1шт.

14

NSS

NOT SOLD SEPARAT

PINION SHAFT - differential

1шт.

15

NSS

NOT SOLD SEPARAT

RING GEAR - differential

1шт.

16

A18182

BALL BEARING,27.75mm ID x 62mm OD x 18mm W

BEARING - pinion shaft

1шт.

N9842

DIFFERENTIAL

ASSEMBLY - axle, continued

1шт.

D80558

DIFFERENTIAL

CARRIER ASSEMBLY - differential

1шт.

17

NSS

NOT SOLD SEPARAT

CASE - carrier

1шт.

18

NSS

NOT SOLD SEPARAT

CAP - bearing

2шт.

19

D74484

PLATE ASSY.

PLATE - lock

2шт.

20

826-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

- hex, 16 - 2 x 90 mm, class 10.9

4шт.

21

D74504

WASHER

- flat

4шт.

22

D74477

NUT

RING - bearing adjusting

2шт.

D74449

CAGE ASSY.

CASE ASSEMBLY

1шт.

23

NSS

NOT SOLD SEPARAT

CASE - flange half

1шт.

24

NSS

NOT SOLD SEPARAT

CASE - plain half

1шт.

25

514-807

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

- hex, self-locking, 12 - 1.75 x 100 mm, class 10.9

8шт.

26

D74511

RIVET

- ring gear, used in production only, for service order items 27, 28 and 29

12шт.

27

N6408

BOLT

- special, ring gear to case flange half

12шт.

28

D74508

WASHER

- special, ring gear bolt

12шт.

29

232-4618

LOCK NUT,1/2"-20, GC

NUT - hex, self-locking, 1/2inch NF

12шт.

30

13363D

TAPERED BEARING

CUP - bearing

2шт.

31

ST2007A

TAPERED BEARING,2.625" ID x 4.4375" OD x 1.1875"

BEARING - tapered roller

2шт.

32

D74476

U-JOINT SPIDER

SPIDER - differential, no longer available, order N9844 spider and (4) N9843 thrust washers

1шт.

33

N9844

TOGGLE

SPIDER - differential

1шт.

34

D74472

GEAR

SIDE GEAR - differential

2шт.

35

D74473

BEVEL GEAR

PINION GEAR - differential

4шт.

36

D74474

WASHER

THRUST WASHER - side gear

2шт.

37

D74475

WASHER

THRUST WASHER - pinion, used with D74476 spider

4шт.

38

N9843

CONE WASHER

THRUST WASHER - pinion, used with N9844 spider

4шт.

39

514-806

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9

- hex, self-locking, 12 -1.75 x 35 mm, class 10.9

10шт.

40

D74508

WASHER

- flat, special, differential carrier mounting bolt

10шт.
