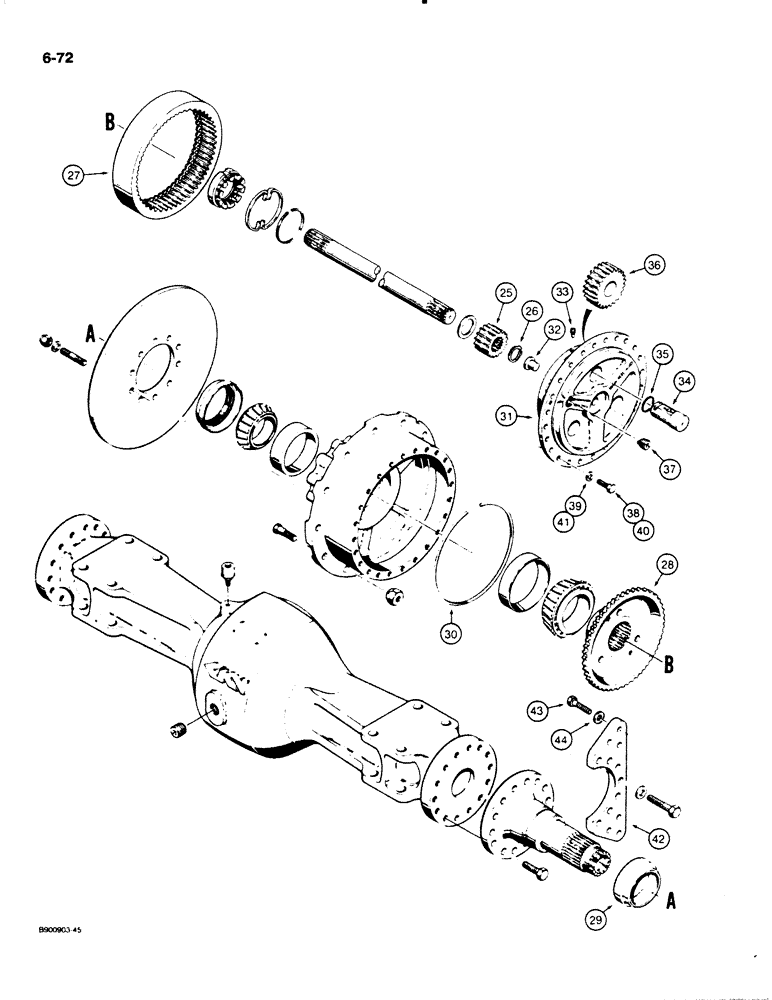

Запчасти Case W20C (6-72) - W20C AXLE HOUSING AND PLANETARY, FRONT AXLES - L118897 AND L126097 (06) - POWER TRAIN

L118897

AXLE HOUSING

AXLE ASSEMBLY - front, GKN No. RP12.10-313, continued from Fig. 6-70,, Includes: Ref. 25 - 42 & Ref. 1 - 24 on Fig. 6-70

1шт.

See Figure 6-56 for identification and service information.

1шт.

L126097

AXLE HOUSING

AXLE ASSEMBLY - front, GKN No. RP12.10-314, continued from Fig. 6-70, Includes: Ref. 25 - 42 & Ref. 1 - 24 on Fig. 6-70

1шт.

See Figure 6-56 for identification and service information.

1шт.

25

N9839

SUN GEAR

- planetary

2шт.

26

K12922

RING, SNAP

SNAP RING - sun gear

2шт.

27

N9835

SLEWING RING

RING GEAR - planetary

2шт.

28

N9836

RING, FLYWHEEL

HUB - ring gear

2шт.

29

S300013

SPACER

- hub

2шт.

30

D74456

RING

SNAP RING - ring gear

2шт.

31

D74451

COVER

SPIDER - planetary

2шт.

32

D74467

PLUG

BUTTON - thrust

2шт.

33

D74502

SET SCREW,M10 x 1.5 x 1.50mm, Gr 8.8

SET SCREW - spider

6шт.

34

D74453

SHAFT

- pinion

6шт.

35

D80559

O-RING,41.6 mm ID

- shaft seal

6шт.

36

N9837

GEAR

PINION GEAR - planetary

6шт.

37

D74516

PLUG

- oil fill, spider

2шт.

38

514-806

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9

- hex, self-locking, 12 - 1.75 x 35 mm, class 10.9

46шт.

39

D74508

WASHER

- flat, special

46шт.

40

514-901

BOLT,Hex, M14 x 2 x 35mm, Cl 10.9

- hex, self-locking, 14 - 2 x 35 mm, class 10.9, oil drain

2шт.

41

D74509

WASHER

- flat, special

2шт.

42

D74463

PLATE ASSY.

PLATE - caliper mount

2шт.

43

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex, 3/4 NC x 2-1/2 inch, grade 8, brake caliper mounting to plate

24шт.

44

L79179

WASHER

- flat, special

24шт.
