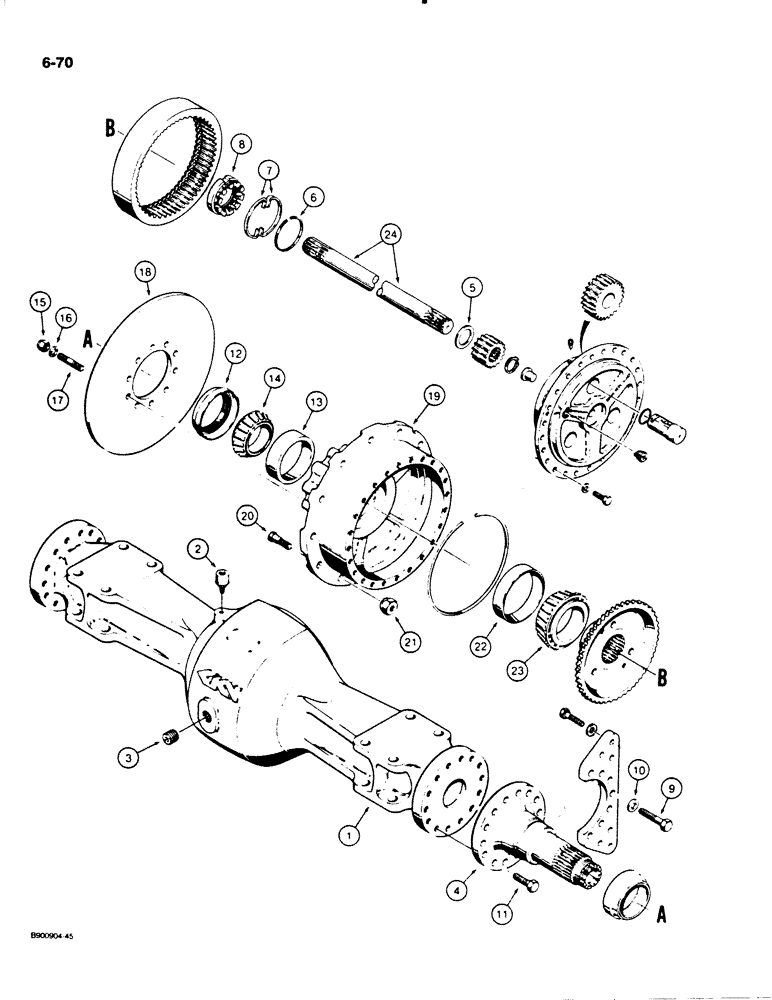

Запчасти Case W20C (6-70) - W20C AXLE HOUSING AND PLANETARY, FRONT AXLES - L118897 AND L126097 (06) - POWER TRAIN

L118897

AXLE HOUSING

AXLE ASSEMBLY - front, GKN No. RP12.10-313, Includes: Ref. 1 - 24 & Ref. 25 - 42 on Fig. 6-72

1шт.

See Figure 6-56 for identification and service information.

1шт.

L126097

AXLE HOUSING

AXLE ASSEMBLY - front, GKN No. RP12.10-314, Includes: Ref. 1 - 24 & Ref. 25 - 42 on Fig. 6-72

1шт.

See Figure 6-56 for identification and service information.

1шт.

1

N14079

HOUSING

- axle

1шт.

2

D74469

BREATHER

- axle

1шт.

3

K12362

PLUG

- housing

1шт.

4

S300014

SHAFT

SPINDLE - front axle

2шт.

5

D77572

WASHER

THRUST WASHER - spindle

2шт.

6

D77571

VALVE SPRING

RETAINING RING - spring

2шт.

7

D77570

RING

- spring

4шт.

8

D77568

LOCK NUT

- locking

2шт.

9

514-1203

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

- hex, self-locking, 20 - 2.5 x 80 mm, class 10.9

14шт.

10

D80556

WASHER

- flat, special

14шт.

11

514-1202

BOLT,Hex, M20 x 2.5 x 55mm, Cl 10.9

- hex, self-locking, 20 - 2.5 x 55 mm, class 10.9

14шт.

12

S300015

OIL SEAL

SEAL - oil, spindle

1шт.

13

L33255

BEARING, CUP

CUP - hub bearing, inner

2шт.

14

A52289

ROLLER BEARING,3.8125" ID x 1.1406"

BEARING - tapered roller

2шт.

15

D74505

NUT

- lock

20шт.

16

D74504

WASHER

- flat, special

20шт.

17

D74503

STUD

- hub

20шт.

18

N9832

BRAKE DISC

DISC - brake

2шт.

19

N9830

HUB

- wheel

2шт.

20

D80560

STUD

BOLT - wheel mounting, press in type

24шт.

21

A12522

WHEEL NUT

- wheel mounting bolt

24шт.

22

L30842

BEARING CUP,159.99mm OD x 26.99mm W

CUP - hub bearing, outer

2шт.

23

L35045

ROLLER BEARING

BEARING - tapered roller

2шт.

24

D74465

SHAFT

- axle, left-hand, 39.724 inch (1009 mm) long

1шт.

24

D74466

SHAFT

- axle, right-hand, 42.008 inch (1067 mm) long

1шт.
