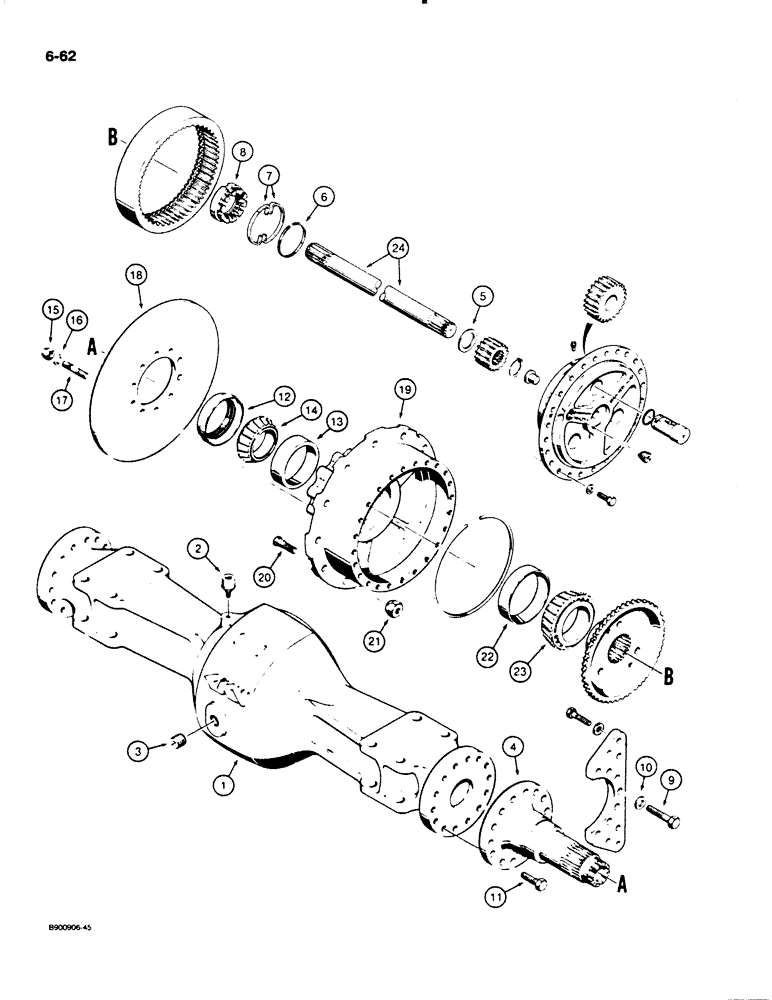

Запчасти Case W20C (6-62) - W20C AXLE HOUSING AND PLANETARY, REAR AXLES - L118896 AND L126098 (06) - POWER TRAIN

L118896

AXLE HOUSING

AXLE ASSEMBLY - rear, GKN No. RP10.10-319, Includes: Ref. 1 - 24 & Ref. 25 - 41 on Fig. 6-64

1шт.

See Figure 6-56 for identification and service information.

1шт.

L126098

AXLE HOUSING

AXLE ASSEMBLY - rear, GKN No. RP10.10-321, Includes: Ref. 1 - 24 & Ref. 25 - 41 on Fig. 6-64

1шт.

See Figure 6-56 for identification and service information.

1шт.

1

N14079

HOUSING

- axle

1шт.

2

D74469

BREATHER

- axle

1шт.

3

K12362

PLUG

- housing

1шт.

4

S300021

SHAFT

SPINDLE - rear axle

2шт.

5

D77572

WASHER

THRUST WASHER - spindle

1шт.

6

D77571

VALVE SPRING

RETAINING RING - spring

1шт.

7

D77570

RING

- spring

2шт.

8

D77568

LOCK NUT

- locking

1шт.

9

514-1203

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

- hex, self-locking, 20 - 2.5 x 80 mm, class 10.9

14шт.

10

D80556

WASHER

- flat

14шт.

11

514-1202

BOLT,Hex, M20 x 2.5 x 55mm, Cl 10.9

- hex, self-locking, 20 - 2.5 x 55 mm, class 10.9

14шт.

12

S300019

OIL SEAL

- oil, spindle

2шт.

13

A7892

BEARING, CUP

CUP - bearing, inner

2шт.

14

ST2040

TAPERED BEARING,3.375" ID x 5.376" OD x 1.2015"

BEARING - tapered roller

2шт.

15

D74505

NUT

- lock

20шт.

16

D74504

WASHER

- flat

20шт.

17

D74503

STUD

- hub

20шт.

18

D74461

DISC

- brake

2шт.

19

D74450

HUB

- wheel

2шт.

20

D80560

STUD

BOLT - press in

24шт.

21

A12522

WHEEL NUT

- hex

24шт.

22

64371H

BEARING ASSY

CUP - bearing, outer

2шт.

23

64370H

BEARING, ROLLER,101.6mm ID x 36.12mm W

BEARING - tapered roller

2шт.

24

D74465

SHAFT

- axle, right-hand, 39.724 inch (1009 mm) long

1шт.

24

D74466

SHAFT

- axle, left-hand, 42.008 inch (1067 mm) long

1шт.
