Артикул
Название
Примечание
Количество
L60900
AXLE
ASSEMBLY - front, GKN No. RP10.10H-10133-00307, Includes: Ref. 1 - 43
1шт.

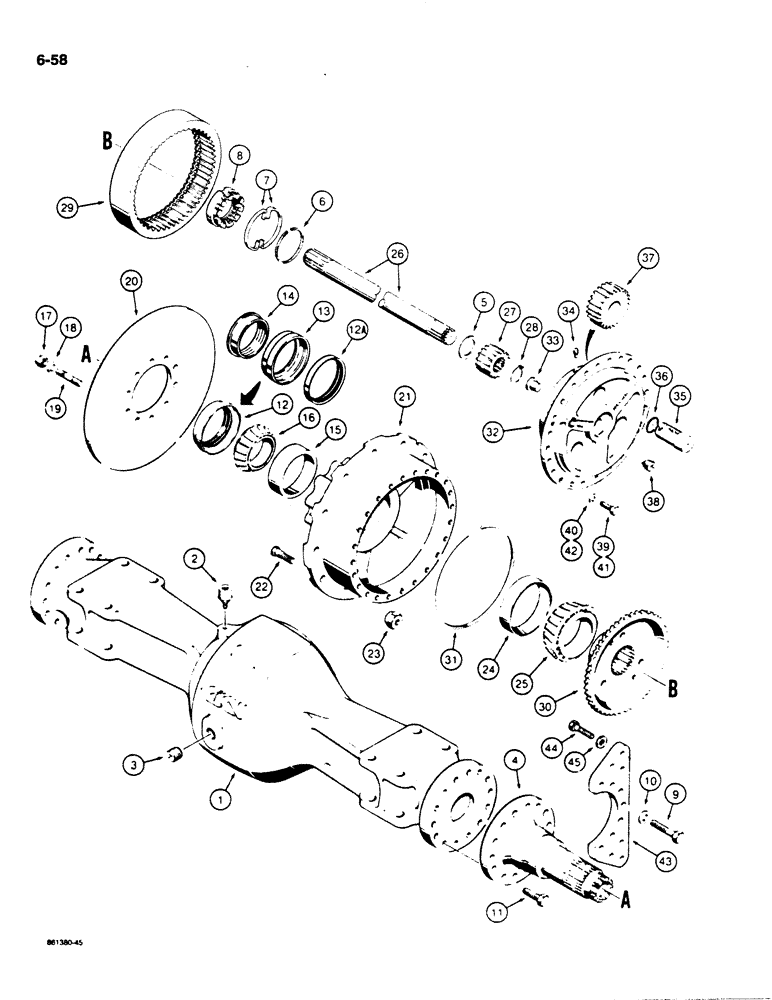

See Figure 6-56 for identification and service information.
1шт.
L78001
AXLE HOUSING
AXLE ASSEMBLY - rear, GKN No. RP10.10H-10133-00306, Includes: Ref. 1 - 43
1шт.
See Figure 6-56 for identification and service information.
1шт.
L113585
AXLE
ASSEMBLY - rear, GKN No. RP10.10-309, Includes: Ref. 1 - 43
1шт.
See Figure 6-56 for identification and service information.
1шт.
L118130
AXLE HOUSING
AXLE ASSEMBLY - rear, GKN No. RP10.10-314, Includes: Ref. 1 - 43
1шт.
See Figure 6-56 for identification and service information.
1шт.
1
N14079
HOUSING
- axle
1шт.
2
D74469
BREATHER
- axle
1шт.
3
K12362
PLUG
- housing
1шт.
4
D77567
SPINDLE
- rear axle original production, order N7769 kit
2шт.
N7769
KIT
- spindle, front or rear axle, Includes: Ref. 4 - 8
2шт.
4
N6813
SPINDLE
- front axle original production
1шт.
5
D77572
WASHER
THRUST WASHER - spindle
1шт.
6
D77571
VALVE SPRING
RETAINING RING - spring
1шт.
7
D77570
RING
- spring, Includes: Ref. 12A - 14
2шт.
8
D77568
LOCK NUT
- locking
1шт.
9
514-1203
BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9
- hex, self-locking, 20 - 2.5 x 80 mm, class 10.9
14шт.
10
D80556
WASHER
- flat
14шт.
11
514-1202
BOLT,Hex, M20 x 2.5 x 55mm, Cl 10.9
- hex, self-locking, 20 - 2.5 x 55 mm, class 10.9
14шт.
12
D80561
OIL SEAL
SEAL - spindle, one piece, 102 mm ID, if used
2шт.
L36208
SLEEVE
KIT - seal, spindle, used with D77567 spindle, includes 8-30240 installation instructions, Includes: Ref. 12A - 14
2шт.
L105250
SLEEVE
ASSEMBLY - wear
1шт.
N6593
SEAL RETAINER
SEAL ASSEMBLY - spindle, two piece, if used
1шт.
12a
NSS
NOT SOLD SEPARAT
OIL SEAL - spindle, 110 mm ID
1шт.
13
NSS
NOT SOLD SEPARAT
RETAINER - oil seal
1шт.
14
NSS
NOT SOLD SEPARAT
SLEEVE - wear
1шт.
15
A7892
BEARING, CUP
CUP - bearing, inner
2шт.
16
A7893
ROLLER BEARING,3.375" ID x 1.172"
BEARING - tapered roller
2шт.
17
D74505
NUT
- lock
20шт.
18
D74504
WASHER
- flat
20шт.
19
D74503
STUD
- hub
20шт.
20
D74461
DISC
- brake
2шт.
21
D74450
HUB
- wheel
2шт.
22
D80560
STUD
BOLT - press in
24шт.
23
A12522
WHEEL NUT
- hex
24шт.
24
64371H
BEARING ASSY
CUP - bearing, outer
2шт.
25
A14984
ROLLER BEARING
BEARING - tapered roller
2шт.
26
D74465
SHAFT
- axle, left-hand front and right-hand rear, 39.724 inch (1009 mm) long
1шт.
26
D74466
SHAFT
- axle, right-hand front and left-hand rear, 42.008 inch (1067 mm) long
1шт.
27
D74464
GEAR
SUN GEAR - planetary, used with L60900 and L78001 axles
2шт.
27
N9839
SUN GEAR
- planetary, used with L113585 and L118130 axles
2шт.
If items are ordered for L60900 and L78001 axles, Service Bulletin W06-85 must be consulted.
1шт.
28
K12922
RING, SNAP
SNAP RING - sun gear
2шт.
29
D74454
GEAR
RING GEAR - planetary, used with L60900 and L78001 axles
2шт.
29
N9835
SLEWING RING
RING GEAR - planetary, used with L113585 and L118130 axles
2шт.
If items are ordered for L60900 and L78001 axles, Service Bulletin W06-85 must be consulted.
1шт.
30
D77569
GEAR
HUB - ring gear, used with L60900 and L78001 axles
2шт.
30
N9841
RING, FLYWHEEL
HUB - ring gear, used with L113585 and L118130 axles
2шт.
If items are ordered for L60900 and L78001 axles, Service Bulletin W06-85 must be consulted.
1шт.
31
D74456
RING
SNAP RING - ring gear
2шт.
32
D74451
COVER
SPIDER - planetary
2шт.
33
D74467
PLUG
BUTTON - thrust
2шт.
34
D74502
SET SCREW,M10 x 1.5 x 1.50mm, Gr 8.8
SET SCREW - spider
6шт.
35
D74453
SHAFT
- pinion
6шт.
36
D80559
O-RING,41.6 mm ID
- shaft seal
6шт.
37
D74452
PINION
GEAR - planetary, used with L60900 and L78001 axles
6шт.
37
N9837
GEAR
PINION GEAR - planetary, used with L113585 and L118130 axles
6шт.
If items are ordered for L60900 and L78001 axles, Service Bulletin W06-85 must be consulted.
1шт.
38
D74516
PLUG
- oil fill, spider
2шт.
39
514-806
BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9
- hex, self-locking, 12 - 1.75 x 35 mm, class 10.9
46шт.
40
D74508
WASHER
- flat, special
46шт.
41
514-901
BOLT,Hex, M14 x 2 x 35mm, Cl 10.9
- hex, self-locking, 14 - 2 x 35 mm, class 10.9, oil drain
2шт.
42
D74509
WASHER
- flat, special
2шт.
43
D74463
PLATE ASSY.
PLATE - caliper mount
2шт.
44
26-1240
BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8
- hex, 3/4 NC x 2-1/2 inch, grade 8, brake caliper mounting to plate
24шт.
45
L79179
WASHER
- flat, special
24шт.
Выбрано товаров: 68
