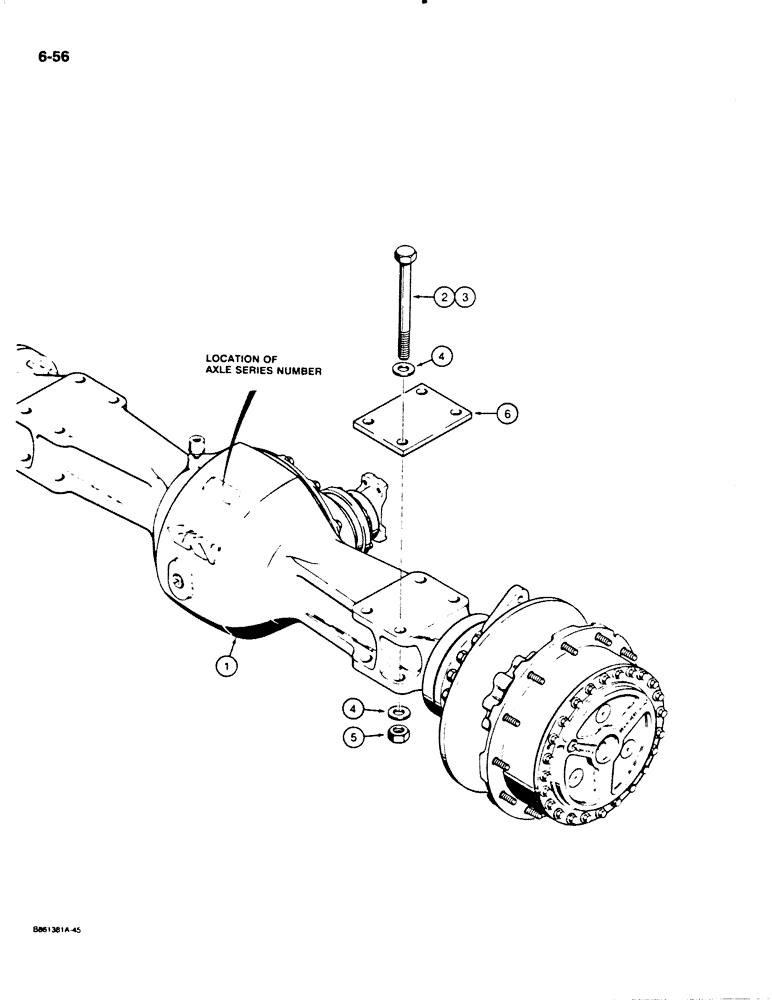

Запчасти Case W20C (6-56) - W20C AXLE ASSEMBLIES, AXLE IDENTIFICATION (06) - POWER TRAIN

1

L60900

AXLE

ASSEMBLY - front, GKN No. RP10.10H-10133-00307, parts list Figures 6-59 and 6-74, no longer available, order L126097 axle

1шт.

GKN axle series number is stamped on serial number plate located at upper differential housing.

1шт.

1

L113584

AXLE

ASSEMBLY - front, GKN No. RP12.10-301, parts list Figures 6-66, 6-74 and 6-76, no longer available, order L126097 axle

1шт.

GKN axle series number is stamped on serial number plate located at upper differential housing.

1шт.

1

L118129

AXLE HOUSING

AXLE ASSEMBLY - front, GKN No. RP12.10-305, parts list Figures 6-66, 6-74 and 6-76, no longer available, order L126097 axle

1шт.

GKN axle series number is stamped on serial number plate located at upper differential housing.

1шт.

1

L118897

AXLE HOUSING

AXLE ASSEMBLY - front, GKN No. RP12.10-313, parts list Figures 6-70, 6-72, 6-74 and 6-76, no longer available, order L126097 axle

1шт.

GKN axle series number is stamped on serial number plate located at upper differential housing.

1шт.

1

L126097

AXLE HOUSING

AXLE ASSEMBLY - front, GKN No. RP12.10-314, parts list Figures 6-70, 6-72, 6-78 and 6-80

1шт.

GKN axle series number is stamped on serial number plate located at upper differential housing.

1шт.

1

L78001

AXLE HOUSING

AXLE ASSEMBLY - rear, GKN No. RP10.10H-10133-00306, parts list Figures 6-58, 6-74 and 6-76, no longer available, order L126098 axle

1шт.

GKN axle series number is stamped on serial number plate located at upper differential housing.

1шт.

1

L113585

AXLE

ASSEMBLY - rear, GKN No. RP10.10-309, parts list Figures 6-58, 6-74 and 6-76, no longer available, order L126098 axle

1шт.

GKN axle series number is stamped on serial number plate located at upper differential housing.

1шт.

1

L118130

AXLE HOUSING

AXLE ASSEMBLY - rear, GKN No. RP10.10-314, parts list Figures 6-58, 6-74 and 6-76, no longer available, order L126098 axle

1шт.

GKN axle series number is stamped on serial number plate located at upper differential housing.

1шт.

1

L118896

AXLE HOUSING

AXLE ASSEMBLY - rear, GKN No. RP10.10-319, parts list Figures 6-62, 6-64, 6-74 and 6-76, no longer available, order L126098 axle

1шт.

GKN axle series number is stamped on serial number plate located at upper differential housing.

1шт.

1

L126098

AXLE HOUSING

AXLE ASSEMBLY - rear, GKN No. RP10.10-321, parts list Figures 6-62, 6-64, 6-78 and 6-80

1шт.

GKN axle series number is stamped on serial number plate located at upper differential housing.

1шт.

2

116-901

BOLT,Hex, 1" - 14 x 9-1/2", Gr 8

- hex head, 1" - 14 NF x 9-1/2", front and rear axle mounting parts

8шт.

3

116-904

BOLT,Hex, 1" - 14 x 10", Gr 8

- hex head, 1" - 14 NF x 10", front and rear axle mounting parts

8шт.

4

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- special, if used, front and rear axle mounting parts

32шт.

5

131-188

LOCK NUT,1"-14, GB

NUT - hex, self-locking, 1" - 14 NF, front and rear axle mounting parts

16шт.

6

L71348

SPACER

PAD - axle, front and rear mounting parts

4шт.
