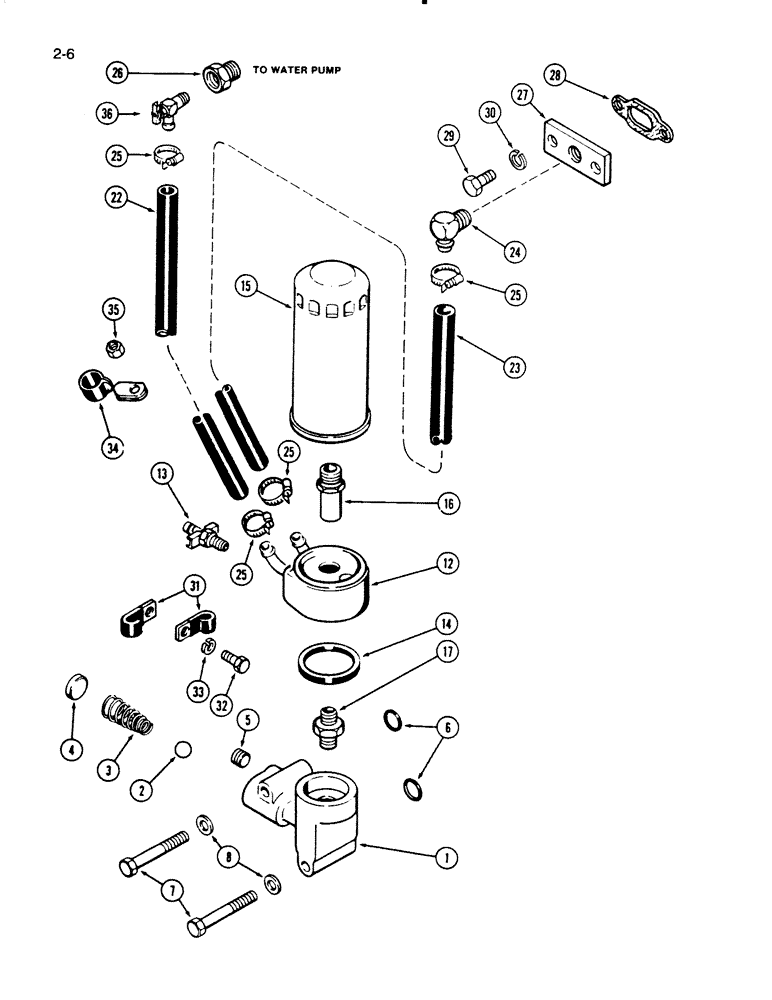

Запчасти Case W20C (2-06) - OIL FILTER AND COOLER, 504BD ENGINE (02) - ENGINE

A154788

BASE

ASSEMBLY - oil filter and cooler, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

BASE - filter

1шт.

2

211-219

BALL

- 3/4 inch, Grade 25, chrome alloy steel

1шт.

3

A146897

SPRING

- relief

1шт.

4

41-1020

PLUG,Cup, 1 1/4"

- cup, 1-1/4 inch diameter

1шт.

5

221-844

PLUG,Hex Soc, 1/2"-14

- hex socket, 1/2 inch PT

1шт.

6

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- base to block

2шт.

7

13-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

2шт.

8

195-533

WASHER,1/2", SAE

- flat, 1/2" (17/32 x 1-1/16 x 3/32")

2шт.

12

A66295

COOLER

- oil

1шт.

13

217-107

VALVE

- 1/8 inch PT (Discard 1/8 inch pipe plug in cooler)

1шт.

14

A153806

SEALING RING

- oil, Serial Range: cooler-base

1шт.

15

A44081

ENGINE OIL FILTER

ELEMENT - filter

1шт.

16

A66992

ADAPTER

- upper (1 inch NF external thread with 3/4 inch NF internal thread)

1шт.

17

A58831

ADAPTER

- lower (1 inch NC external thread with 3/4 inch NF external thread)

1шт.

22

NSS

NOT SOLD SEPARAT

HOSE - water outlet, 15 inch long (Order A42610)

1шт.

23

NSS

NOT SOLD SEPARAT

HOSE - water inlet, 29 inch long (Order A42610)

1шт.

A42610

LARGE HOSE

HOSE - 5/8 ID x 1 inch OD, bulk length, 50 feet long (Cut to length required)

1шт.

24

217-134

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

- 90 degree, 5/8 stem end x 1/2 inch PT

1шт.

25

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - adj, 9/16 - 1-1/16 inch dia

4шт.

26

221-1092

REDUCER,Hex, 3/4" x 3/8" NPT

- pipe, 3/4 male x 3/8 inch female

1шт.

27

A66993

FLANGE

- outlet hose (To block)

1шт.

28

A58670

GASKET

-, Serial Range: tube-block

1шт.

29

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

30

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

31

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- hose retaining

2шт.

32

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

33

492-11038

LOCK WASHER,3/8"

1шт.

34

R45966

CLAMP,0.94mm, Coat, 90 Degree Twist

- hose retaining

1шт.

35

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

36

A16764

VALVE

- water shutoff

1шт.
