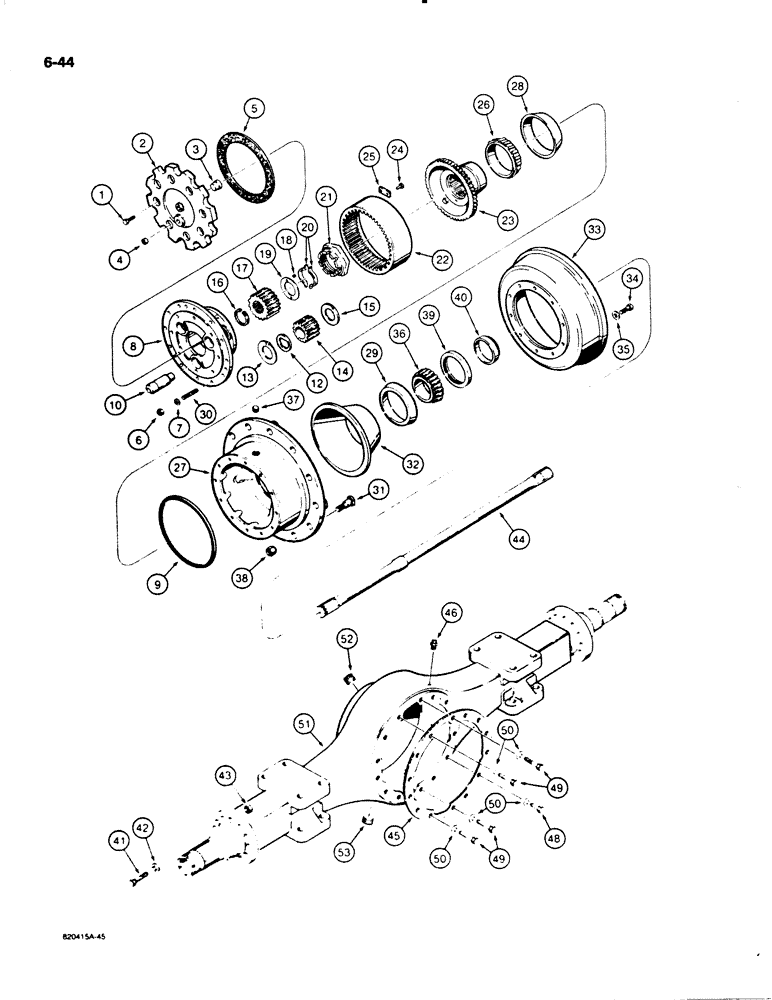

Запчасти Case W20C (6-44) - W18B AXLE HOUSING AND PLANETARY (06) - POWER TRAIN

L103014

AXLE

ASSEMBLY - complete, PRLS-596-H102, Includes: Ref. 1 - 53

2шт.

L112584

CENTER AXLE

AXLE ASSEMBLY - complete, PRLS-596-H105, Includes: Ref. 1 - 53

2шт.

L113185

AXLE

ASSEMBLY - complete, PRLS-596-H106, Includes: Ref. 1 - 53

2шт.

1

L30675

SCREW

BOLT - special

16шт.

2

L33952

COVER

- planetary spider, Includes: Ref. 3

2шт.

3

A12980

BUTTON

- thrust, drive shaft

2шт.

4

221-845

PLUG,Hex Soc, 3/4"-14

- hex socket, 3/4 inch PT

2шт.

5

A12910

GASKET,0.4mm Thk

- cover to spider, order M20704 form-in-place gasket

2шт.

6

129-545

NUT,1/2"-20, G8

24шт.

7

D47366

WASHER

- flat, special

24шт.

8

A12909

U-JOINT SPIDER

SPIDER - planetary

2шт.

9

A18218

O-RING,10.125" ID x 10.312" OD x 0.103"

- if used, order M20704 form-in-place gasket

2шт.

10

A40146

SHAFT

- planetary pinion, no longer available, order N9274 shaft

6шт.

10

N9274

SHAFT

- planetary pinion

6шт.

12

A12904

WASHER

THRUST WASHER - pinion, outer, if used, refer to A40146 shaft substitution information before ordering

6шт.

13

N13112

WASHER

THRUST WASHER - pinion, outer, if used

6шт.

14

A12901

GEAR

PINION - planetary

6шт.

15

A40145

WASHER

THRUST WASHER - pinion, inner

6шт.

16

A20222

RING, SNAP

RETAINING RING - sun, Serial Range: gear-shaft

2шт.

17

A12905

GEAR

SUN GEAR - planetary

2шт.

A13103

WASHER

AND PIN ASSEMBLY - sun gear, order N6182, item 19A, Includes: Ref. 18 & 19

2шт.

18

A13137

AXLE PIN

PIN - thrust washer

2шт.

19

NSS

NOT SOLD SEPARAT

THRUST WASHER - sun gear

1шт.

19a

N6182

WASHER

WITH PINS - special, not shown

2шт.

20

A12953

RETAINER

LOCK - bearing nut

4шт.

21

A13104

BEARING LOCK NUT

NUT - hub bearing

2шт.

22

A12911

GEAR

RING GEAR - hub

2шт.

23

L33735

HUB

- ring gear

2шт.

24

26-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex head, 5/16" - 18 NC x 3/4", grade 8

16шт.

25

A12914

LOCK ASSY

PLATE - lock

8шт.

26

L33737

BEARING ASSY,110 mm ID x 119 mm OD x 35 mm

BEARINGD - tapered roller, outer

2шт.

L33730

HUB ASSY.

HUB AND CUP ASSEMBLY - axle, Includes: Ref. 27 - 29

2шт.

27

NSS

NOT SOLD SEPARAT

HUB - drive wheel

1шт.

28

L33732

BEARING CUP,149 mm ID x 159 mm OD x 26.5 mm

CUP - bearing, outer

1шт.

29

L33731

BEARING CUP,154.9 mm OD x 27.9 mm

CUP - bearing, inner

1шт.

30

L30951

STUD

-, Serial Range: spider-hub

24шт.

L103014

AXLE

ASSEMBLY - complete, PRLS-596-H102 continued from Figure 6-44

2шт.

L112584

CENTER AXLE

AXLE ASSEMBLY - complete, PRLS-596-H105 continued from Figure 6-44

2шт.

L113185

AXLE

ASSEMBLY - complete, PRLS-596-H106 continued from Figure 6-44

2шт.

31

A13112

STUD

-, Serial Range: wheel-hub

24шт.

32

L33728

BRACKET

SLINGER - oil

2шт.

33

L33894

DRUM

- brake

2шт.

34

26-1026

BOLT,Hex, 5/8" - 11 x 1-5/8", Gr 8

- hex head, 5/8" - 11 NC x 1-5/8", grade 8

20шт.

35

L30737

WASHER

- special

20шт.

36

L33736

ROLLER BEARING

BEARING - tapered roller, inner

2шт.

37

221-678

DRAIN PLUG,Sq Soc, 3/4" NPT

PLUG - magnetic, 3/4" NPT

2шт.

38

A12522

WHEEL NUT

- wheel bolt, not included in axle assembly

24шт.

39

L35032

OIL SEAL,126.09mm ID x 158.95mm OD x 15.37mm Thk

- hub bearing

2шт.

L35032 is new, improved seal. Old was D47371. New seal is direct replacement. The wear sleeve , N7075, must not be removed as the ID of the new seal is fitted to the wear sleeve. A new wear sleeve is not required unless severely worn. The new seal has a .035 inch interference fit with the spindle and, therefore, fits firmly. This tight fit is required to hold the ID of the seal stationary during wheel rotation.

1шт.

40

N7075

SLEEVE

- oil seal

2шт.

41

28-830

BOLT,Hex, 1/2" - 20 x 1-7/8", Gr 8

- hex head, 1/2" - 20 NF x 1-3/4"

24шт.

42

D47366

WASHER

- special

24шт.

43

232-4618

LOCK NUT,1/2"-20, GC

NUT - hex, self-locking, 1/2" - 20 NF

24шт.

44

D80629

SHAFT

- axle

2шт.

45

L36108

GASKET

- differential carrier to housing, order M20704 form-in-place gasket

1шт.

46

A12928

BREATHER

- oil, differential

1шт.

47

A19909

SPRING SEAT

SEAT - lower spring, not shown

2шт.

48

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

10шт.

49

26-834

BOLT,Hex, 1/2" - 13 x 2-1/8", Gr 8

- hex head, 1/2" - 13 NC x 2-1/8"

4шт.

50

D47366

WASHER

- flat, special

14шт.

51

D80451

HOUSING

ASSEMBLY - axle, Includes: Ref. 52 & 53

1шт.

52

221-845

PLUG,Hex Soc, 3/4"-14

- hex socket, 3/4 inch PT

1шт.

53

221-678

DRAIN PLUG,Sq Soc, 3/4" NPT

PLUG - 3/4" NPT, magnetic

1шт.
