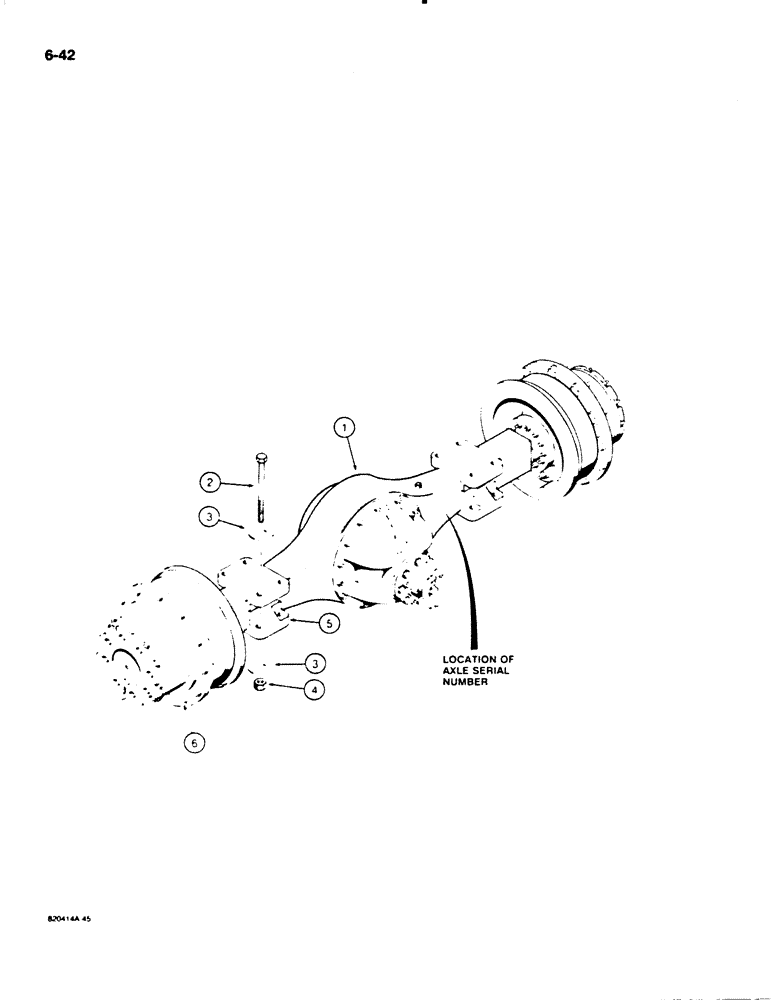

Запчасти Case W20C (6-42) - W18B AXLE ASSEMBLY (06) - POWER TRAIN

1

L103014

AXLE

ASSEMBLY - PRLS-596-H102, front and rear, parts list Figures 6-44 through 6-52

2шт.

1

L112584

CENTER AXLE

AXLE ASSEMBLY - PRLS-596-H105, front and rear, parts list Figures 6-44 through 6-52

2шт.

1

L113185

AXLE

ASSEMBLY - PRLS-596-H106, front and rear, parts list Figures 6-44 through 6-50 and 6-54

2шт.

2

116-907

BOLT,Hex, 1" - 14 x 12", Gr 8

- hex head, 1" - 14 NF x 12"

16шт.

3

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- hardened

32шт.

4

131-1253

LOCK NUT,1"-14, GC

NUT, LOCK, 1"-14, GC

16шт.

5

L79814

PAD

- axle

4шт.

6

A12522

WHEEL NUT

- wheel

48шт.
