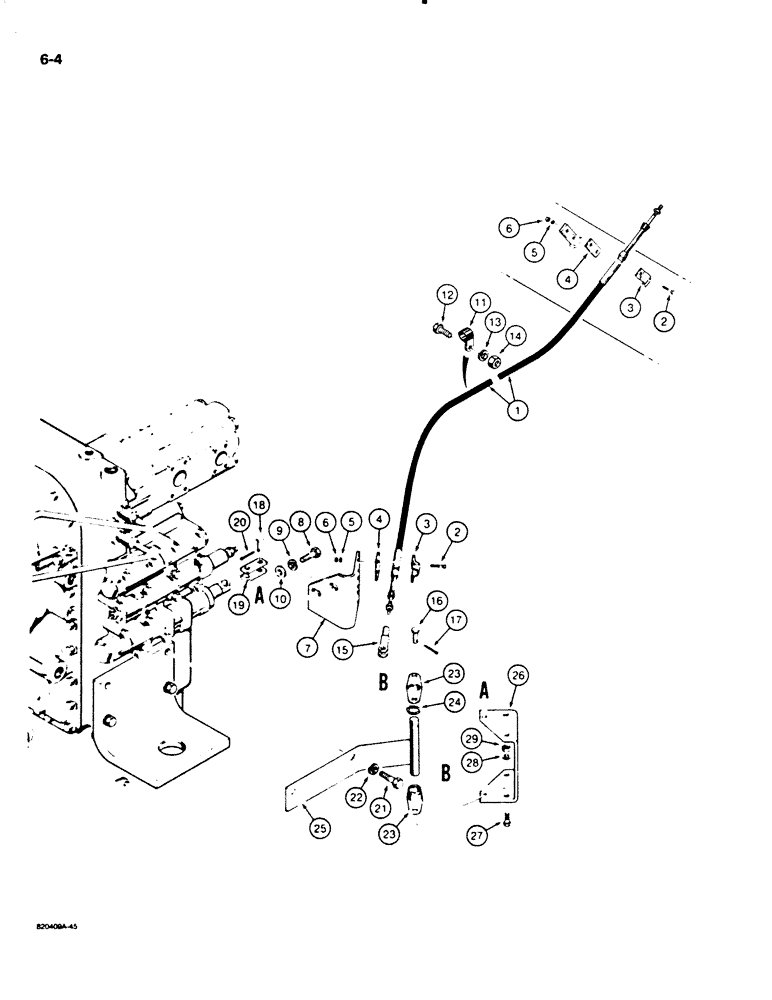

Запчасти Case W20C (6-04) - TRANSMISSION CONTROL PARTS, CABLE AND CABLE MOUNTING (06) - POWER TRAIN

1

L112447

CABLE,1346.2mm L

ASSEMBLY - transmission shift control

1шт.

2

163-13

SCREW,Hex, #10 - 24 x 3/4"

MACHINE SCREW - hex head, No. 10 - 24 NC x 3/4"

4шт.

3

L40314

CLAMP

- transmission shift control cable

2шт.

4

L40315

SHIM,5.55mm ID x 12.7mm OD x 2.28mm Thk

- cable clamping

2шт.

5

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

6

129-7

NUT,Hex, #10 - 24

- hex, No. 10 - 24 NC

4шт.

7

L109580

BRACKET

- cable mount

1шт.

8

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

9

92-6

LOCK WASHER,3/8"

2шт.

10

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

11

49838

CLAMP

- hose

1шт.

12

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

13

92-6

LOCK WASHER,3/8"

1шт.

14

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

15

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS - cable end

1шт.

16

141-2

CLEVIS PIN,1/4" x .770"

- 1/4"

1шт.

17

132-6

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter) 1/16" x 5/8"

1шт.

18

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

19

L47832

LINK

- transmission control, at transmission

2шт.

20

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

21

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

22

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

23

L48412

FLANGED BEARING

BEARING - self-aligning

2шт.

24

T25683

SNAP RING,#75, Ext

Ring, Snap, #75, Ext

1шт.

25

L77843

PLATE

BELLCRANK - transmission control

1шт.

26

L77844

LARGE PLATE

PLATE - pivot

1шт.

27

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

28

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

29

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

4шт.
