Запчасти Case W20C (6-02) - TRANSMISSION CONTROL PARTS, SHIFT LEVER (06) - POWER TRAIN

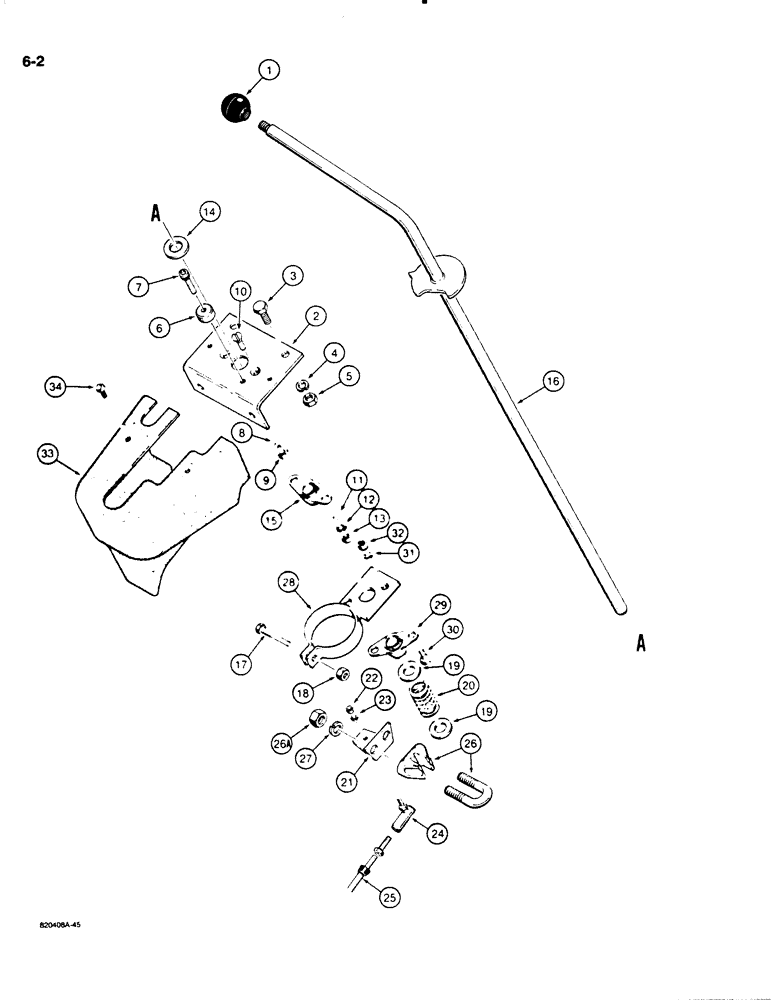

Схема запчастей Case W20C - (6-02) - TRANSMISSION CONTROL PARTS, SHIFT LEVER (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

1

A23885

KNOB

- transmission shift lever

1шт.

2

L71696

BRACKET

- shaft and steering column

1шт.

3

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

4

92-6

LOCK WASHER,3/8"

2шт.

5

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

6

L48011

WASHER

STOP - shifting lever

1шт.

7

61-416

HEX SOC SCREW,1/4"-20 x 1"

CAP SCREW - hex socket head, 1/4" - 20 NC x 1"

1шт.

8

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

9

25-104

NUT,1/4"-20, G5

1шт.

10

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

MACHINE SCREW - flat head, 1/4" - 20 NC x 5/8"

2шт.

11

195-18

WASHER,1/4"

- flat, 1/4"

2шт.

12

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

13

25-104

NUT,1/4"-20, G5

2шт.

14

L104902

WASHER

THRUST BEARING - shaft

1шт.

15

L74514

FLANGED BEARING,0.631" ID x 0.812"

BEARING - shift lever

1шт.

16

L105614

SHAFT

- transmission control

1шт.

17

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

18

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

1шт.

19

195-541

WASHER,5/8", SAE

- flat, 5/8"

2шт.

20

A26586

SPRING

- compression

1шт.

21

L79033

LEVER

- cable

1шт.

22

25-154

JAM NUT,Jam, 1/4"-28, G5

Hex Jam, 1/4"-28, G5

1шт.

23

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

24

A10329

BALL JOINT,1/4" - 28 x 1"

- cable end

1шт.

25

L112447

CABLE,1346.2mm L

- transmission shift control

1шт.

26

L79112

CLAMP

ASSEMBLY - includes nuts, Includes: Ref. 26A

1шт.

26a

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

27

92-8

LOCK WASHER,1/2"

2шт.

28

L103475

SUPPORT ASSY.

SUPPORT - transmission control shaft

1шт.

29

L74514

FLANGED BEARING,0.631" ID x 0.812"

BUSHING - side flange

1шт.

30

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

31

92-5

LOCK WASHER,5/16"

2шт.

32

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

33

L105615

COVER ASSY

COVER - steering column, black, if used

1шт.

33a

L111753

COVER

- steering column, brown, if used, not shown

1шт.

34

182-542

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

- pan head, 1/4" - 20 NC x 1/2"

2шт.

Выбрано товаров: 36
