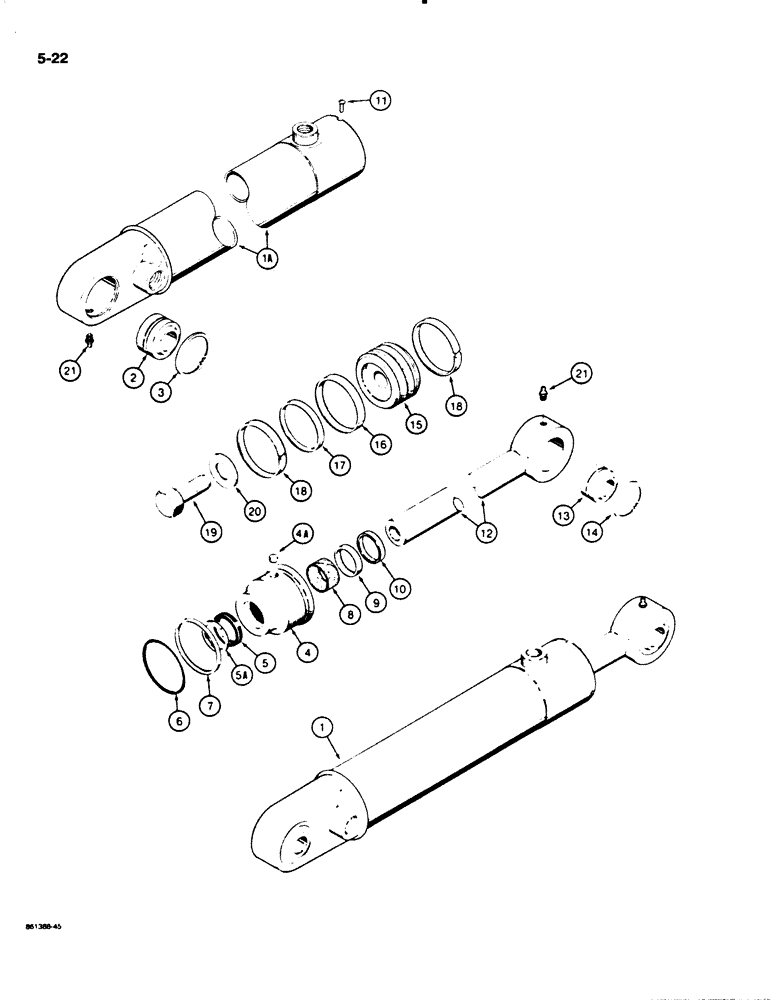

Запчасти Case W20C (5-22) - G101274 AND G101275 STEERING CYLINDERS (05) - STEERING

1

G101274

CYLINDER

- right-hand, 3" (76 mm) ID x 15" (381 mm) stroke, Includes: Ref. 1A - 21

1шт.

1

G101275

CYLINDER

- left-hand, 3" (76 mm) ID x 15" (381 mm) stroke, Includes: Ref. 1A - 21

1шт.

1a

G101702

TUBE,3 mm DIA x 610.10 mm L

- G101274 cylinder, Includes: Ref. 2 & 3

1шт.

1a

G101703

TUBE,3 mm DIA x 610.10 mm L

- G101275 cylinder, Includes: Ref. 2 & 3

1шт.

2

L12570

BUSHING

- self-aligning

1шт.

3

L12571

SNAP RING,#218, 2.321", Int, Spiral

- bushing

2шт.

G104222

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4a

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

5

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

U-CUP SEAL - piston rod, wide

1шт.

Part of seal kit P/N G105548

1шт.

5

G100776

SEAL

U-CUP SEAL - piston rod, service option - extreme heat or cold

1шт.

5a

G109093

SEAL,37.72mm ID x 50.98mm OD x 3.05mm Thk

- piston rod, narrow, used in addition to item 5 in some glands

1шт.

Part of seal kit P/N G105548

1шт.

6

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland

1шт.

Part of seal kit P/N G105548

1шт.

7

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

BACKUP RING - gland O-ring

1шт.

Part of seal kit P/N G105548

1шт.

8

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

- Center

1шт.

Part of seal kit P/N G105548

1шт.

9

NSS

NOT SOLD SEPARAT

RETAINING RING - gland

1шт.

10

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - rod, outer

1шт.

Part of seal kit P/N G105548

1шт.

11

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, No. 8 - 32 NC x 1/4", if used

1шт.

12

G33449

CYLINDER,38.1mm OD x 583.18mm L

ROD ASSEMBLY - piston, 1-1/2" (38 mm) diameter, Includes: Ref. 13 & 14

1шт.

13

L12570

BUSHING

- self-aligning

1шт.

14

L12571

SNAP RING,#218, 2.321", Int, Spiral

- bearing retaining

2шт.

15

G100442

PISTON

- cylinder

1шт.

16

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

- Piston

1шт.

Part of seal kit P/N G105548

1шт.

17

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING - piston

1шт.

Part of seal kit P/N G105548

1шт.

18

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear

2шт.

Part of seal kit P/N G105548

1шт.

19

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- hex head, 3/4" - 16 NF x 2-1/2", grade 8

1шт.

20

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - 1/8" NPT, straight

2шт.

G105548

KIT

- seal, Includes: Refs. 5, 5A, 6, 7, 8, 10, 16, 17 and 18, same as G102404 kit plus item 5A above

1шт.
