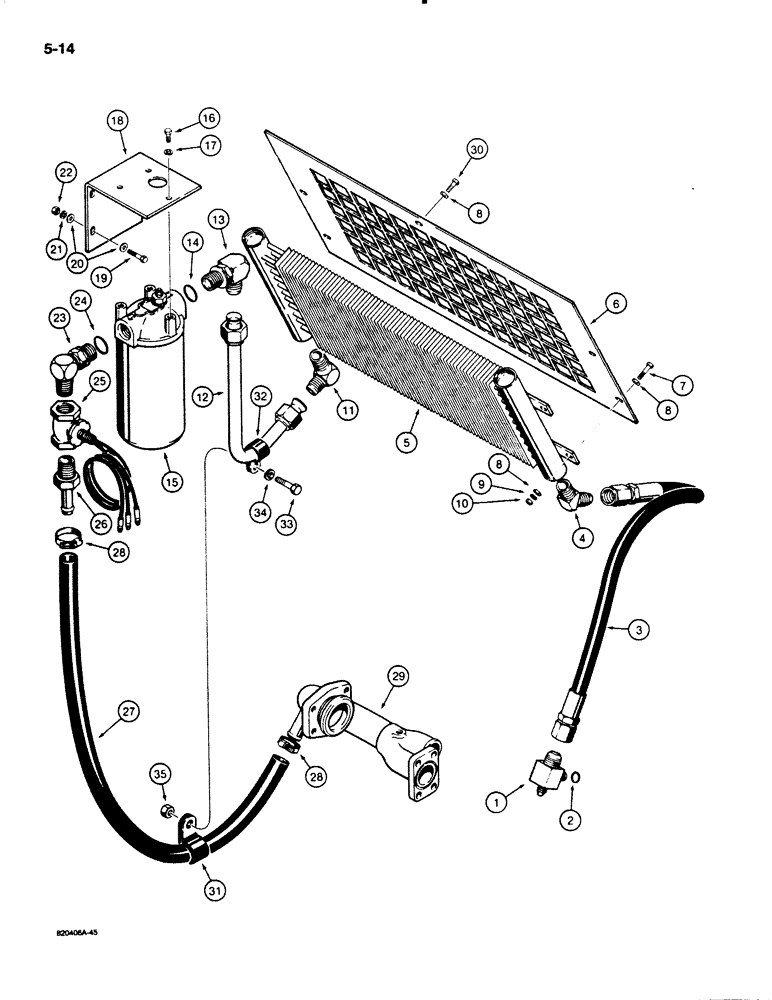

Запчасти Case W20C (5-14) - AUXILIARY STEERING HYDRAULIC CIRCUIT, RETURN LINES (05) - STEERING

1

L108729

TEE

- at flow control valve, for flow control valve and connecting tubes, see Figure 5-08

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- L108729 tee

1шт.

3

L109770

HOSE ASSY.

HOSE - to oil cooler, 26-1/2" (673 mm) long

1шт.

4

218-538

ELBOW,45 Degree, 1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF

- 45 degree, male

1шт.

5

L107484

COOLER

- hydraulic oil

1шт.

6

L109439

GRILLE

- oil cooler

1шт.

7

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

8

95-6

WASHER,3/8"

- flat, 3/8"

9шт.

9

92-6

LOCK WASHER,3/8"

4шт.

10

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

11

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- 90 degree, male

1шт.

12

L109299

TUBE ASSY.,1" OD x 16.55, 7.55" L

TUBE - oil cooler to filter

1шт.

13

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

filter, in port, Incl. Ref. 14 90º, 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

1шт.

14

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

15

L104785

FILTER

- hydraulic oil, parts list Figure 8-48

1шт.

16

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

17

92-6

LOCK WASHER,3/8"

3шт.

18

L109206

BRACKET

- filter mounting

1шт.

19

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

20

95-6

WASHER,3/8"

- flat, 3/8"

8шт.

21

92-6

LOCK WASHER,3/8"

4шт.

22

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

23

218-5307

FITTING

ELBOW - 90 degree, adjustable, Includes: Ref. 24

1шт.

24

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 218-5307 elbow

1шт.

25

L113437

SWITCH

- flow control

1шт.

26

217-156

FITTING,1" Hose Barb x 1" Male NPTF

STEM FITTING - straight

1шт.

27

L103708

LARGE HOSE

HOSE - return, 1" (25 mm) ID x 48" (1219 mm) long, cut to 42 inch length when used for this application

1шт.

28

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.

29

L109385

TUBE ASSY.,5.2" L

TUBE - suction, for connecting parts in basic hydraulic system, see Figure 8-04

1шт.

30

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

31

49773

CLAMP

- hose

1шт.

32

NLS

NO LONGER SERVICED

- tube

1шт.

33

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

34

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

35

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.
