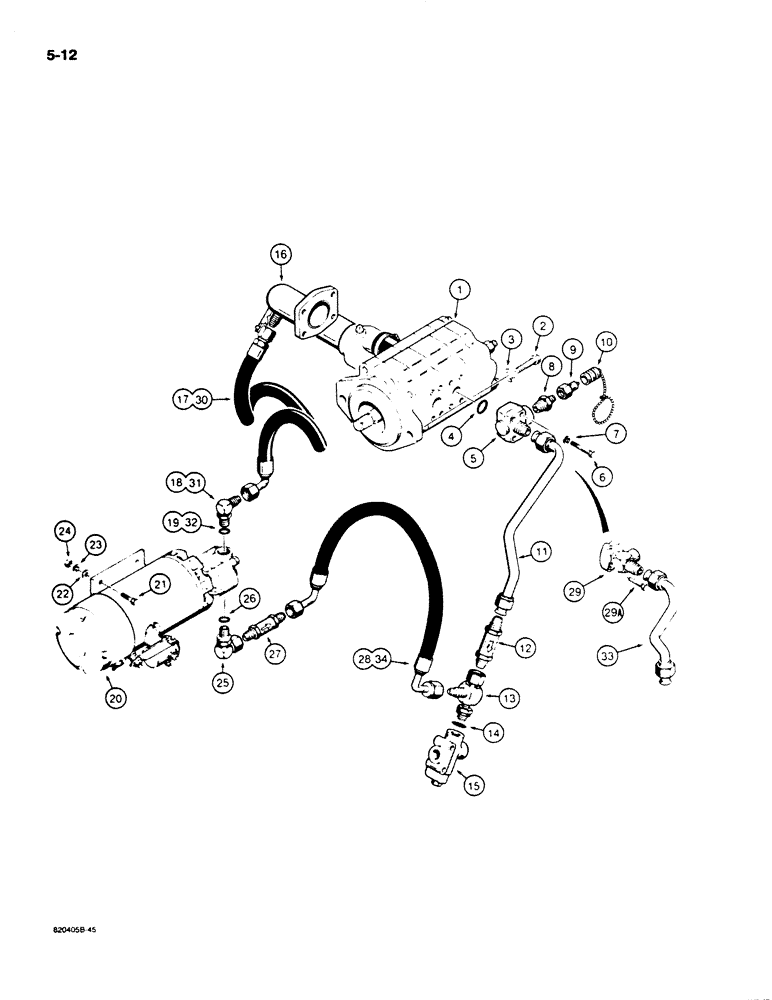

Запчасти Case W20C (5-12) - AUXILIARY STEERING HYDRAULIC CIRCUIT, PUMP TO FLOW CONTROL VALVE (05) - STEERING

1

L26895

PUMP

ASSEMBLY - hydraulic, parts list Figure 8-18

1шт.

L26895R

REMAN-HYD PUMP

W18B CASE WHEEL LOADER, W20C CASE WHEEL LOADER (NORTH AMERICA)

1шт.

L26895C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

2шт.

3

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

4

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

- pump outlet block

1шт.

5

L109578

BLOCK

- pump outlet, used on W18B and before W20C P.I.N. 9161745

1шт.

6

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

4шт.

7

92-6

LOCK WASHER,3/8"

4шт.

8

217-1092

HYD CONNECTOR,3/4"-14 NPTF x 1/4"-18 NPTF

ADAPTER - straight, male

1шт.

9

S206607

DISC

COUPLING - male

1шт.

10

D123387

DUST CAP

CAP - dust

1шт.

11

L109687

TUBE ASSY.,0.75" OD

TUBE - pump to check valve, used on W18B and before W20C P.I.N. 9161745

1шт.

12

L58391

VALVE

CHECK VALVE - steering, 1 1/16 " - 12 thread both ends

1шт.

13

L109697

TEE

- check valve to flow control valve, Includes: Ref. 14

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- tee

1шт.

15

L51457

VALVE

FLOW CONTROL VALVE - parts list Figure 5-16, for mounting bracket see Figure 5-08

1шт.

16

L109715

TUBE ASSY.,4.2, 5.2" L

TUBE - suction, for connecting parts in basic hydraulic system see Figure 8-04

1шт.

17

L73208

HOSE

- suction, 13" (330 mm) long, has 5/8" OD tube on one end, no longer available, order items 30 and 31 below

1шт.

18

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, used with item 17 L73208 hose, Incl. Ref. 19

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

20

L116118

PUMP, HYDRAULIC

PUMP ASSEMBLY - auxiliary steering, parts list Figure 5-18

1шт.

21

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

4шт.

22

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

23

92-6

LOCK WASHER,3/8"

4шт.

24

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

25

218-5460

FITTING

ELBOW - 90 degree, adjustable, Includes: Ref. 26

1шт.

27

L70819

VALVE

CHECK VALVE - steering

1шт.

28

L109726

HOSE ASSY.

HOSE - to flow control valve, 42" (1067 mm) long, used on W18B and before W20C P.I.N. 9161745

1шт.

29

L117972

TEE

- special, used on W20C P.I.N. 9161745 and after

1шт.

29a

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

30

L115704

HOSE

- suction, 13" (330 mm) long, has 3/4" OD tube on one end

1шт.

31

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, used with item 30 L115704 hose

1шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

33

L123684

TUBE ASSY.,0.75" OD

TUBE - pump to check valve, used on W20C P.I.N. 9161745 and after

1шт.

34

L123726

HOSE ASSY.

HOSE - to flow control valve, 42" (1067 mm) long, used on W20C P.I.N. 9161745 and after

1шт.

26

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.
