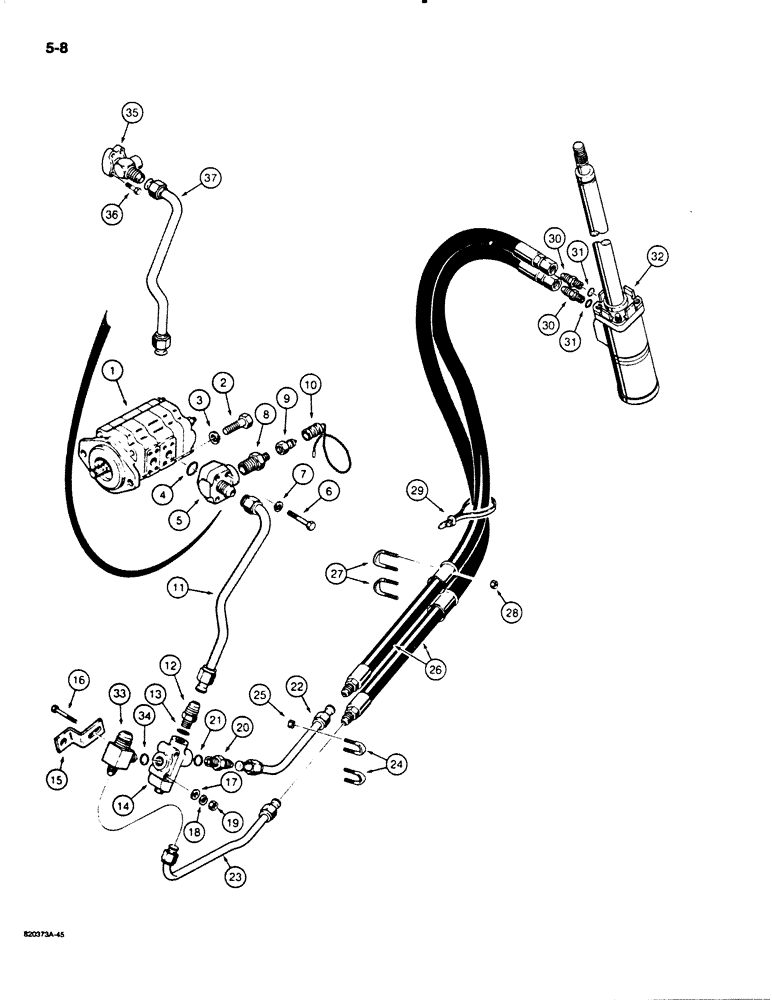

Запчасти Case W20C (5-08) - STEERING HYDRAULIC CIRCUIT, PUMP TO CONTROL VALVE, MODELS W/O AUXILIARY STERRING (05) - STEERING

1

L26895

PUMP

ASSEMBLY - loader and steering, parts list Figure 8-18

1шт.

L26895R

REMAN-HYD PUMP

W18B CASE WHEEL LOADER, W20C CASE WHEEL LOADER (NORTH AMERICA)

1шт.

L26895C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

- hex head, 5/8" - 11 NC x 2"

2шт.

3

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

4

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

- pump outlet block

1шт.

5

L109578

BLOCK

- pump outlet, used on W18B and before W20C P.I.N. 9161745

1шт.

6

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

If used Hex, 3/8"-16 x 2 1/4", G5

4шт.

7

92-6

LOCK WASHER,3/8"

4шт.

8

217-1092

HYD CONNECTOR,3/4"-14 NPTF x 1/4"-18 NPTF

ADAPTER - straight, male

1шт.

9

S206607

DISC

COUPLING - male

1шт.

10

D123387

DUST CAP

CAP - dust

1шт.

11

L109557

PIPE,0.75" OD

TUBE - pump to flow control valve, used on W18B and before W20C P.I.N. 9161745

1шт.

12

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - male, straight, Includes: Ref. 13

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

14

L51457

VALVE

FLOW CONTROL VALVE - parts list Figure 5-16

1шт.

15

L109574

BRACKET

- flow control valve

1шт.

16

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

1шт.

17

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

1шт.

18

92-5

LOCK WASHER,5/16"

1шт.

19

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

1шт.

20

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - male, straight, Includes: Ref. 21

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

22

L109563

PIPE,0.625" OD x 12.39, 3.29" L

TUBE - flow control valve to steering valve

1шт.

23

L109569

PIPE,0.625" OD

TUBE - from steering valve to tee at flow control valve

1шт.

24

L78949

U-BOLT

- steering tubes

2шт.

25

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

4шт.

26

L109573

HOSE

- steering valve circuit, 60" (1524 mm) long

2шт.

27

L78947

U-BOLT

- steering hoses

2шт.

28

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

4шт.

29

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

30

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , male, straight, Incl. Ref. 31 7/8"-14, 37º x 3/4"-16, O-Ring

2шт.

32

L79642

PUMP, HYDRAULIC

CONTROL VALVE - steering, see Figures 5-04 and 5-06 for correct valve

1шт.

33

L108729

TEE

- cooler line, for oil cooler lines without auxiliary steering, see Figure 5-10 for continuation of circuit, Includes: Ref. 34

1шт.

34

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- L108729 tee

1шт.

35

L117972

TEE

- special, used on W20C P.I.N. 9161745 and after

1шт.

36

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

If used Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

37

L118012

TUBE ASSY.,0.75 mm OD

TUBE - pump to flow control valve, used on W20C P.I.N. 9161745 and after

1шт.

31

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.
