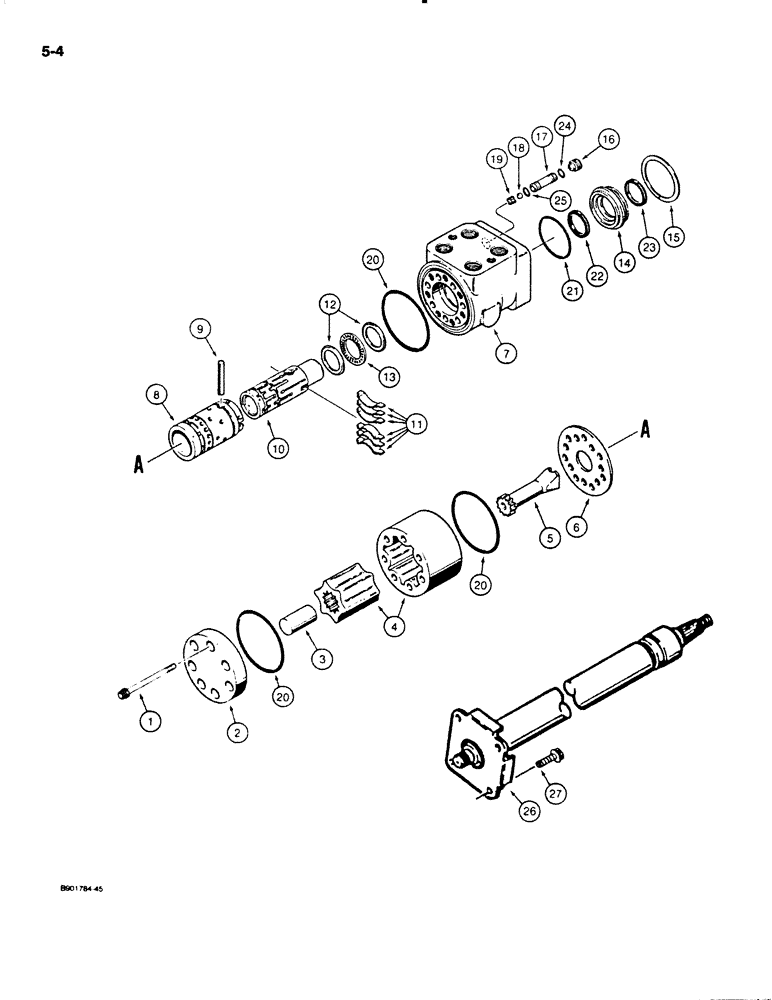

Запчасти Case W20C (5-04) - STEERING CONTROL VALVE AND COLUMN ASSEMBLY, USES D83218 CONTROL VALVE (05) - STEERING

L79642

PUMP, HYDRAULIC

VALVE ASSEMBLY - steering control, includes column

1шт.

Within L79642 steering control valve assembly, which includes the column, you may have either D83218 valve assembly shown in this figure or L128420 valve assembly shown in Figure 5-06. In order to determine which valve assembly you have, check the manufacturers number, which is located on the data plate on the valve housing. It is important that the correct number is identified because the bushing and seals are different in the two valves.

1шт.

D83218

GEAR

VALVE ASSEMBLY - steering control, manufacturers number 211-1041-001, see Figure 5-06 for L128420 valve assembly, manufacturers number 211-1041-002, Includes: Ref. 1 - 25

1шт.

1

D51217

BOLT,5/16" x 3 1/2"

- 12 pt. head, 5/16" - 24 NF x 4-15/16"

7шт.

2

D82809

COVER

- end

1шт.

3

D83220

SPACER

- drive shaft

1шт.

4

D83219

ROTOR

GEROTOR SET - valve

1шт.

5

L30878

DRIVE SHAFT

SHAFT - drive, valve

1шт.

6

S113037

PLATE

- spacer

1шт.

D83215

BODY

CONTROL ASSEMBLY - valve, Includes: Ref. 7 - 11

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - control assembly

1шт.

8

NSS

NOT SOLD SEPARAT

SLEEVE - control assembly

1шт.

9

L30888

PIN

- sleeve

1шт.

10

NSS

NOT SOLD SEPARAT

SPOOL - control assembly

1шт.

11

N14250

KIT

- spring, spool (set of 6)

1шт.

12

D82804

RACE

WASHER - thrust, bearing

2шт.

13

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST - Needle

1шт.

14

S110170

BUSHING

- spool

1шт.

15

S110169

WASHER

RING - retaining, bushing

1шт.

16

D82805

SET SCREW

SCREW - set, special

1шт.

17

D82806

VALVE SEAT

SPOOL - ball check

1шт.

18

211-9

BALL,5/16" Dia

- 5/16", grade 200, chrome alloy steel, check

1шт.

19

L35368

RETAINER

- ball

1шт.

D82802

SEAL PACKAGE

KIT - seal, Includes: Ref. 20 - 25

1шт.

20

N6392

O-RING,0.07" Thk x 2.864" ID, -40, Cl 5, 75 Duro

- cap and plate

3шт.

21

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

- body

1шт.

22

A72029

RING

SEAL - ring

1шт.

23

A28211

OIL SEAL

- bushing

1шт.

24

355967R1

O-RING,0.364" ID x 0.003" Width

- spool, outer

1шт.

25

L30893

O-RING,1/16" Thk x 5/16" ID

- spool, inner, 7/16 x 5/16 x 1/16 in

1шт.

26

L100706

CAP

COLUMN ASSEMBLY - steering, 4.865", individual components are not serviced separately

1шт.

27

166-43

12 PT SCREW,Flg, 3/8" - 16 x 3/4", Gr 8

BOLT - Ferry head, 3/8" - 16 NC x 3/4", grade 8

2шт.
