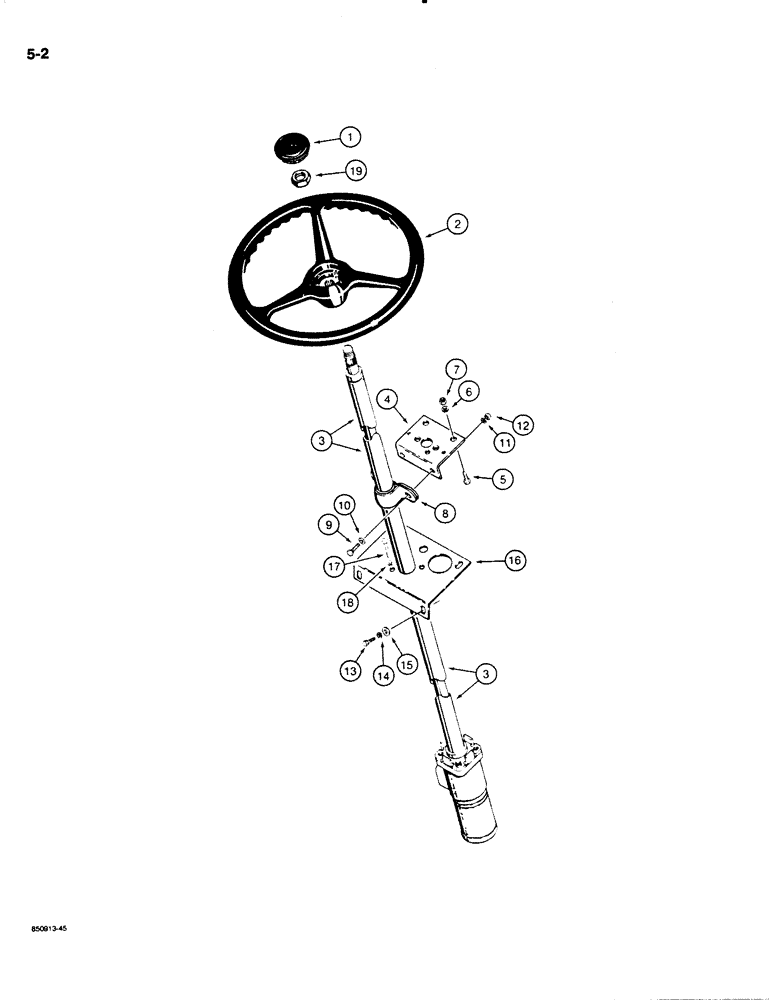

Запчасти Case W20C (5-02) - STEERING CONTROL VALVE AND WHEEL (05) - STEERING

1

L114276

CAP

- steering wheel

1шт.

2

L74518

WHEEL

STEERING WHEEL - tractor

1шт.

3

L79642

PUMP, HYDRAULIC

CONTROL VALVE - steering, see Figures 5-04 and 5-06 for correct valve

1шт.

4

L71696

BRACKET

SUPPORT - steering column

1шт.

5

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

6

92-6

LOCK WASHER,3/8"

2шт.

7

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

8

L105044

BEARING

- steering column support

1шт.

9

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

10

195-25

WASHER,3/8"

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

13

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

14

92-6

LOCK WASHER,3/8"

4шт.

15

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

16

L57727

BRACKET

PLATE - floor, steering alignment

1шт.

17

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

18

92-6

LOCK WASHER,3/8"

2шт.

19

F19646

LOCK NUT,13/16"-20, Thin

NUT - steering wheel

1шт.
