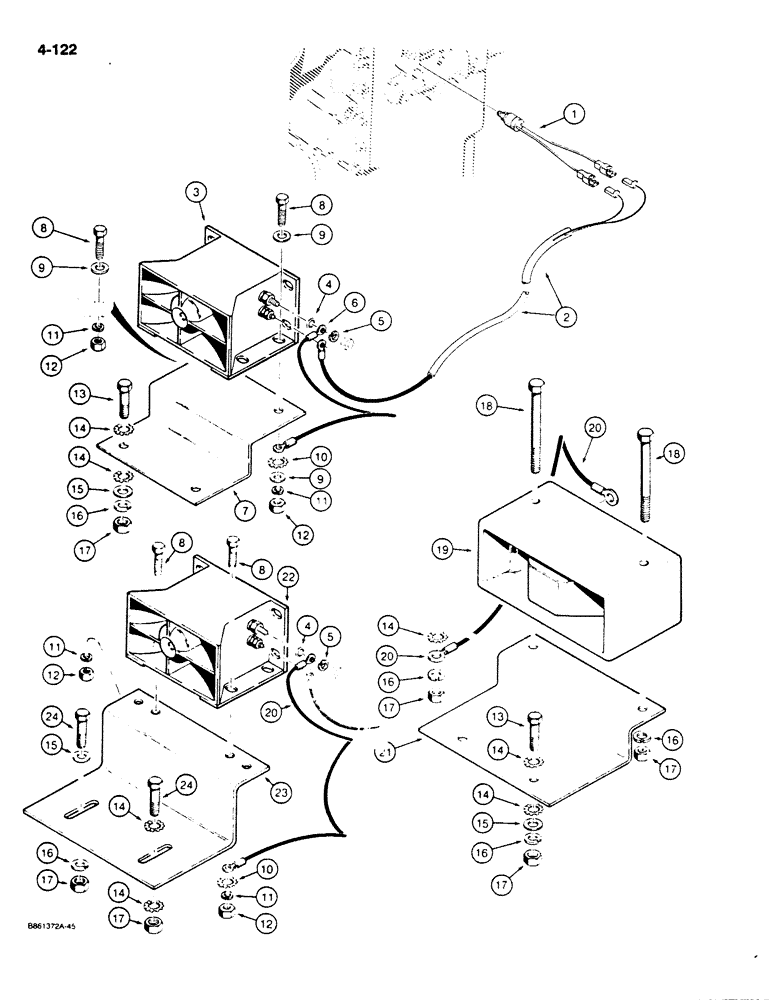

Запчасти Case W20C (4-122) - BACKUP ALARM, USED ON W20C P.I.N. 9155766 AND AFTER (04) - ELECTRICAL SYSTEMS

1

L112588

SWITCH

- backup alarm

1шт.

2

L114106

HARNESS

- rear, see Figure 4-050

1шт.

3

L109087

HOUSING

ALARM - backup, used before PIN 9158851

1шт.

4

193-91

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, Int Tooth, #8

2шт.

5

492-11008

LOCK WASHER,#8

Washer, Lock, #8

2шт.

6

L114718

HARNESS

WIRE - ground, used before PIN 9158851

1шт.

7

L71647

BRACKET

MOUNT - alarm, used before PIN 9158851

1шт.

8

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch, used with item 3, L109087 alarm, and item 22, D121972 alarm

2шт.

9

195-103

WASHER,5/16"

- flat, 3/8 x 7/8 x 5/64 inch, used with item 3, L109087 alarm only

3шт.

10

493-11033

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, , Used with item 3, L109087 alarm and item 22, D121972 alarm Ext-Int Tooth, 5/16"

1шт.

11

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , used with item 3, L109087 alarm, and item 22, D121972 alarm 5/16"

2шт.

12

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, Used with item 3, L109087 alarm, and item 22, D121972 alarm

2шт.

13

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

14

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

WASHER - internal-external tooth lock, 3/8 inch

2-5шт.

15

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1-2шт.

16

492-11038

LOCK WASHER,3/8"

1-4шт.

17

425-106

NUT,3/8"-16, Cl 5

2-4шт.

18

113-267

BOLT,Hex, 3/8" - 16 x 4", Gr 5

Used with item 19, L116668 alarm Hex, 3/8"-16 x 4", G5

2шт.

19

L116668

ALARM

- backup, used on PIN 9158851 and after, uses 3/8 inch hardware, no longer used, order D121972 alarm, L126702 bracket, (2) 413-624 bolt, (2) 413-516 bolts, (2) 492-11031 washers, (1) 493-11033 washer and (2) 425-105 nuts

1шт.

20

L115696

HARNESS

WIRE - ground, used on PIN 9158851 and after

1шт.

21

L116715

BRACKET

MOUNT - alarm, used on PIN 9158851 and after, used with L116668 alarm only

1шт.

22

D121972

ALARM

- backup, uses 5/16 inch hardware

1шт.

23

L126702

BRACKET

- mounting, backup alarm, used with D121972 alarm

1шт.

24

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.
