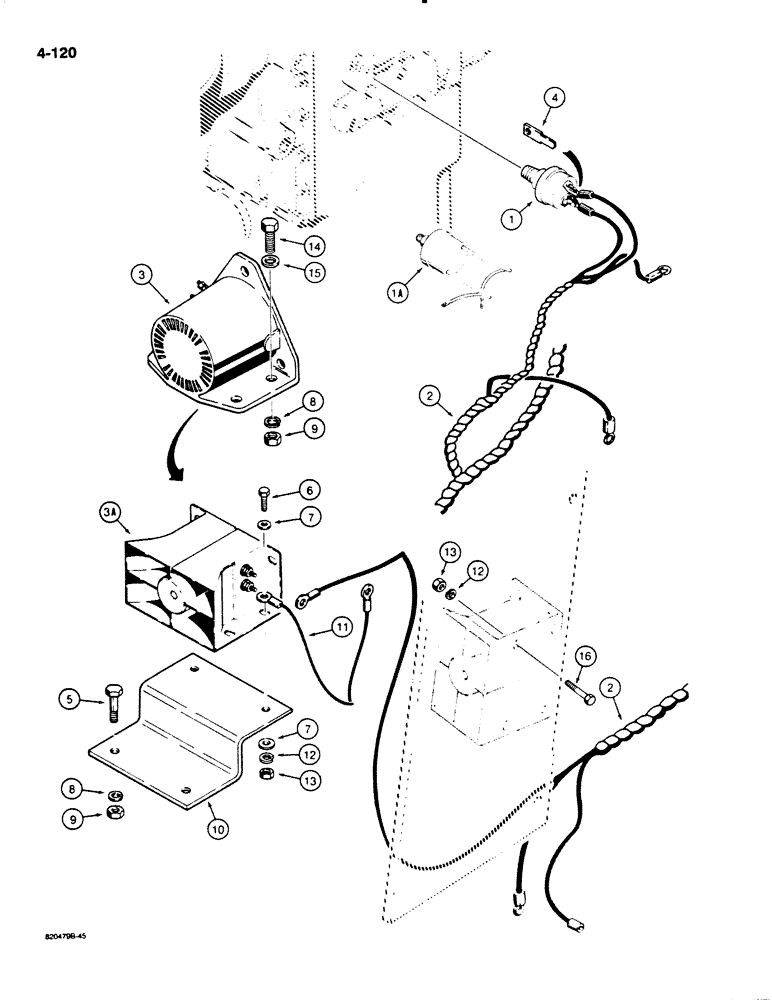

Запчасти Case W20C (4-120) - BACKUP ALARM, USED ON W18B AND BEFORE W20C P.I.N. 9155766 (04) - ELECTRICAL SYSTEMS

1

L57459

SWITCH

- backup alarm, has screw type terminals, order item 1A and L36238 kit below

1шт.

1a

L112588

SWITCH

- backup alarm, has spade type terminals

1шт.

2

REF

INSTRUCTION

HARNESS - rear, see Figures 4-036 through 4-048 for correct harness

1шт.

3

D75814

BUZZER

ALARM ASSEMBLY - backup, round type, if used

1шт.

3a

L109087

HOUSING

ALARM ASSEMBLY - backup, rectangular type, if used

1шт.

4

L59682

TERMINAL CONNECTOR

TERMINAL - straight

1шт.

5

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

6

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

If used Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

7

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16", if used

4шт.

8

92-6

LOCK WASHER,3/8"

2-4шт.

9

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2-4шт.

10

L71647

BRACKET

MOUNT - alarm, if used

1шт.

11

L59563

ELECTRICAL WIRE

WIRE - ground

1шт.

12

92-5

LOCK WASHER,5/16"

if used 5/16"

2шт.

13

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC, if used

2шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

If used Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

15

95-6

WASHER,3/8"

- flat, , if used 3/8"

2шт.

16

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

If used Hex, 5/16"-18 x 1 1/4", G5

2шт.

L36238

KIT

- electrical, includes parts to adapt different switches to different harnesses

1шт.
