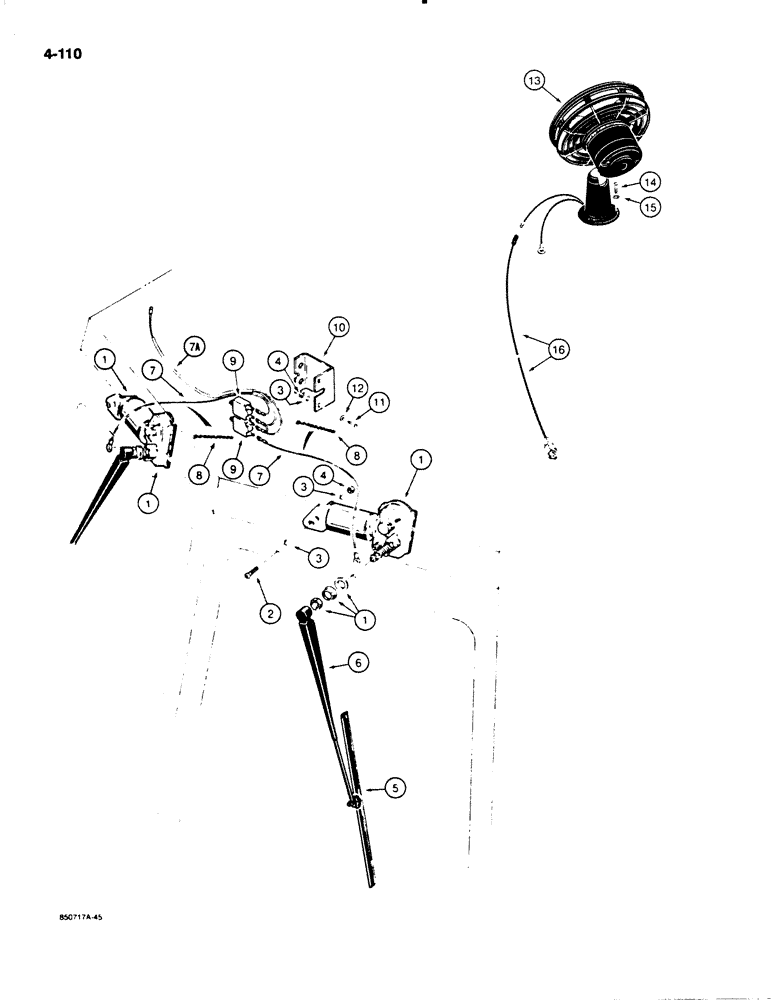

Запчасти Case W20C (4-110) - CAB REAR WIPERS AND DEFROSTER, USED ON W20C P.I.N. 9155766 (04) - ELECTRICAL SYSTEMS

1

L115054

WIPER MOTOR

MOTOR - wiper, rear

2шт.

2

463-11012

SCREW,Hex Hd, #10-24 x 3/4"

- machine, hex, No. 10 NC x 3/4 inch

2шт.

3

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

6шт.

4

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC

4шт.

5

F43517

WIPER BLADE

BLADE - wiper, 12" (533 mm) long

2шт.

6

F43516

ARM

- wiper, 6" - 10" (152 - 254 mm) long, adjustable

2шт.

7

L115417

HARNESS

WIRE - circuit, Serial Range: breaker-wiper

2шт.

7a

L77036

ELECTRICAL WIRE

WIRE - cab to circuit breaker

1шт.

8

A176851

CONDUIT

- flex, wire

2шт.

9

L76726

BREAKER

CIRCUIT BREAKER - 3 amp

2шт.

10

L115450

BRACKET

- circuit breaker

1шт.

11

182-561

SCREW,Slotted Pan Hd, #10-24 x 3/4"

MACHINE SCREW - pan head slotted, No. 10 - 24 NC x 3/4", plated

2шт.

12

195-12

WASHER,#10

- flat, No. 10, plated

2шт.

13

L126960

FAN

- defroster, parts list page 4-113 (replaces L116505 fan), mounting

1шт.

14

182-561

SCREW,Slotted Pan Hd, #10-24 x 3/4"

MACHINE SCREW - pan head slotted, No. 10 - 24 NC x 3/4", plated, defroster mounting

3шт.

15

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, , Defroster mounting Ext-Int Tooth, #10

3шт.

16

L123962

ELECTRICAL WIRE

WIRE - defroster (replaces L115208 wire), mounting

1шт.
