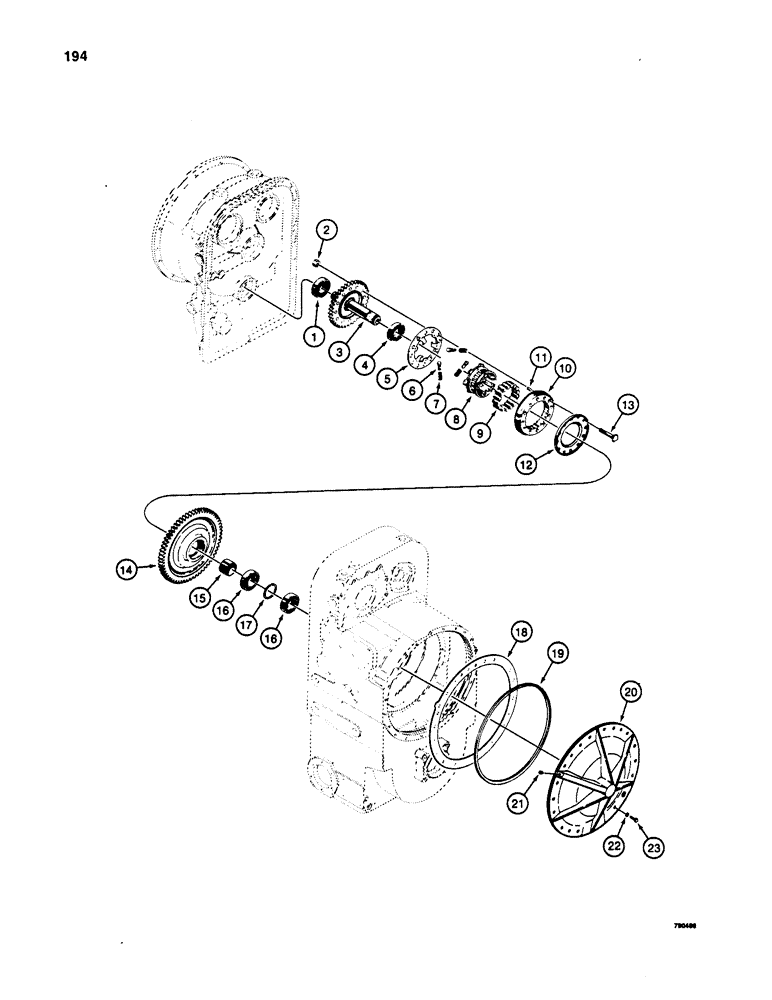

Запчасти Case W20B (194) - TRANSMISSION, TURBINE DRIVEN GEARS, FREEWHEEL UNITS, AND FRONT COVERS (06) - POWER TRAIN

1

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

- gear and shaft

1шт.

2

L31163

SPECIAL NUT

- hex lock, 3/8" - 24 NF, special

1шт.

3

L35508

GEAR

DRIVEN GEAR AND SHAFT ASSEMBLY - second turbine

1шт.

4

D47573

BALL BEARING

- shaft

1шт.

L35003

KIT

- free wheel clutch, Includes: Ref. 5 - 12

1шт.

Ref: 4 Kit - L35003 kit is for Allison TT2000 series transmission. It was found that the TT3000 series kit L36227 could be used on TT2000 equipped units & several units were converted.

1шт.

Kit components are different: Ex: The N6397 Cam/A used in L35003 Kit is 1 3/4" high. The N7931 Cam/A used in L36227 kit is 2" high. The N7931 also has an identification groove around the O.D. (The N6397 hasn't got a groove.) See Bills of Material for all differences. 24-June-96

1шт.

5

L33962

PLATE

- retaining

1шт.

6

D47644

PIN

- spring positioning

3шт.

7

D48863

SPRING

- plate

3шт.

8

L33963

NEEDLE BEARING CAGE

CAGE - freewheel roller

1шт.

9

L31161

ROLLER

- freewheel

15шт.

N6397

CAM

ASSEMBLY - freewheel, Includes: Ref. 10 & 11

1шт.

10

NSS

NOT SOLD SEPARAT

CAM - freewheel

1шт.

11

138-294

LOCK PIN,1/8" x 1/4", Slotted

Pin, , Cam 1/8" x 1/4", Slotted

1шт.

12

D47454

RESERVOIR

PLATE - bolt retainer

1шт.

13

D47455

SQUARE BOLT

- special

12шт.

14

D47456

GEAR

- first turbine, W18 and W20 only

1шт.

14

D77491

GEAR

- first turbine, W20B only

1шт.

15

D48331

BUSHING

SPACER - bearing

1шт.

16

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

- gear

2шт.

17

D47458

THRUST WASHER,36.58mm ID x 41.91mm OD x 1.32mm Thk

SPACER - bearing

1шт.

18

N7021

GASKET

- front cover

1шт.

19

L32412

RING

SEALING RING - bearing

1шт.

20

N6374

COVER

- rear

1шт.

21

221-23

PLUG

- square socket head, 3/8" NPT

1шт.

22

92-6

LOCK WASHER,3/8"

19шт.

23

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

19шт.
