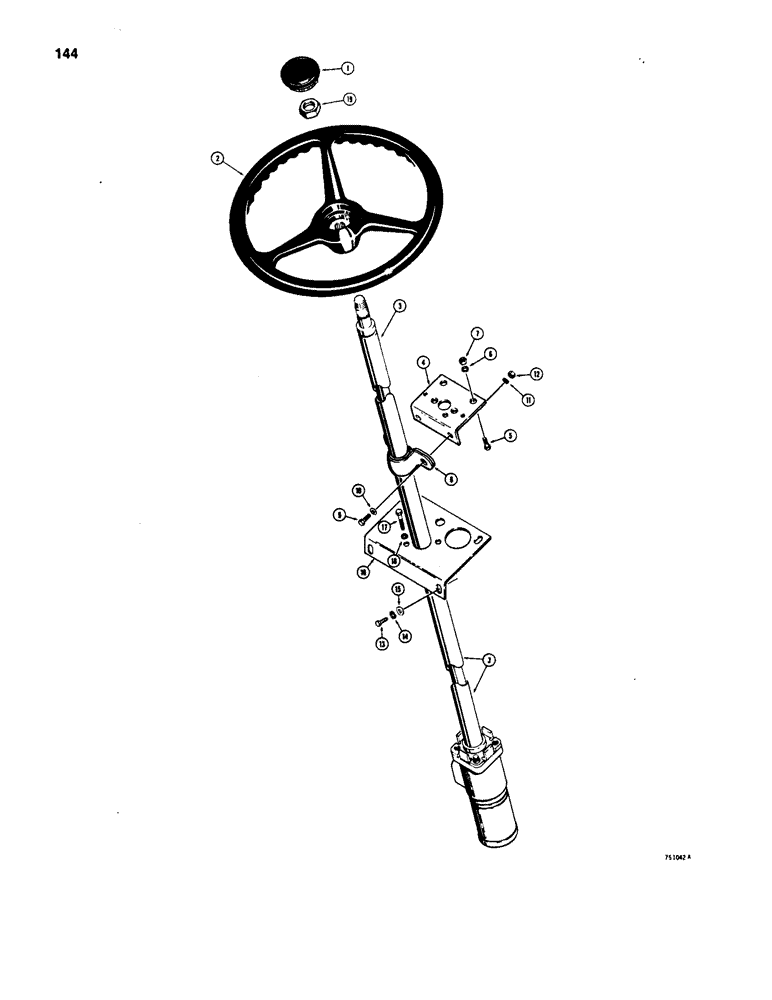

Запчасти Case W20B (144) - STEERING CONTROL VALVE AND RELATED PARTS (05) - STEERING

1

S105894

CAP

- steering wheel

1шт.

2

L74518

WHEEL

STEERING WHEEL - tractor

1шт.

3

REF

INSTRUCTION

VALVE ASSEMBLY - steering, parts list Figures 146 and 148

1шт.

4

L71696

BRACKET

SUPPORT - steering column

1шт.

5

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

6

92-6

LOCK WASHER,3/8"

2шт.

7

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

8

L105044

BEARING

- steering column support

1шт.

9

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

10

195-25

WASHER,3/8"

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

13

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

14

92-6

LOCK WASHER,3/8"

4шт.

15

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

16

L57727

BRACKET

PLATE - floor, steering alignment

1шт.

17

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

18

92-6

LOCK WASHER,3/8"

2шт.

19

REF

INSTRUCTION

NUT - hex, see Figures 146 and 148

1шт.
