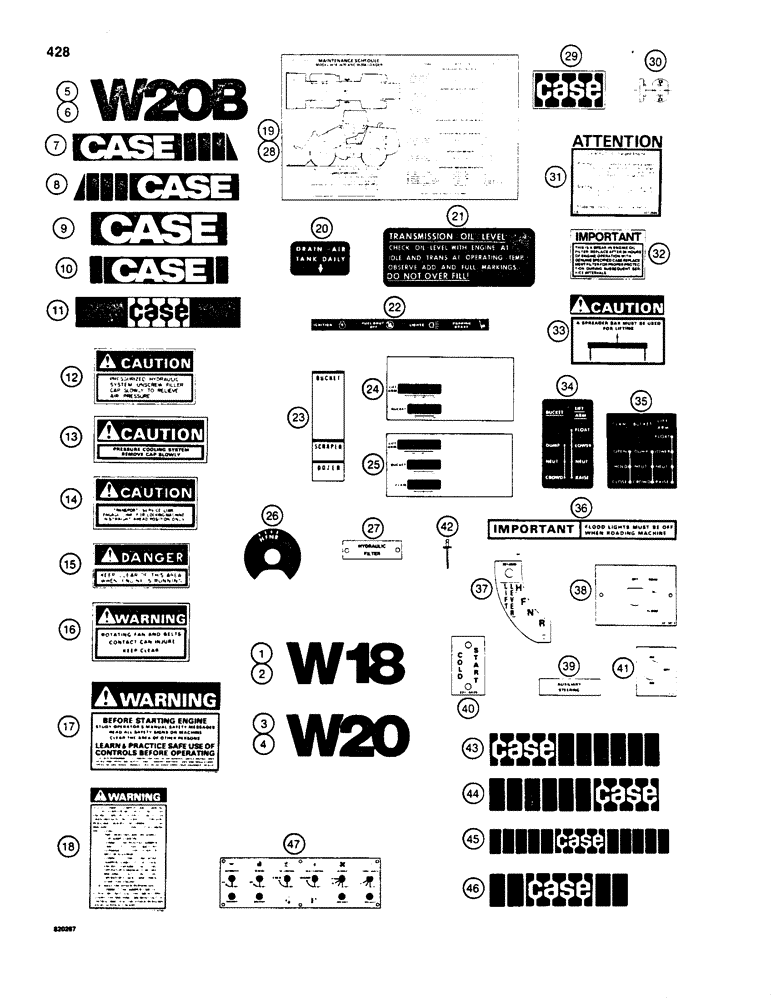

Запчасти Case W20B (428) - DECALS (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

KIT - decal

1шт.

26

321-1047

DECAL

- transmission control

1шт.

27

231-6313

PLATE - decal, hydraulic filter, not part of L36174 kit, order separately for W20B

1шт.

28

321-6408

DECAL

MAINTENANCE CHART - for use on and after the following models and serial numbers: W18 - SN 9142570, W20 - SN 9142570, and W20B - SN 9143074, if used, see page 427, item 19

1шт.

29

321-4739

EMBLEM

MEDALLION - Case

1шт.

30

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - special, push on

2шт.

31

321-2605

DECAL

- turbocharger protection

1шт.

32

321-3863

DECAL

- oil filter

1шт.

33

321-3574

DECAL

- Caution, lift and tie down instructions

1шт.

34

321-1075

DECAL

- loader controls, 2 spool, canopy models, see page 427, item 24 for cab models

1шт.

35

321-1663

DECAL

- loader controls, 3 spool, canopy models, see page 427, item 25 for cab models

1шт.

36

321-4632

DECAL

- important, flood lights

1шт.

37

321-6243

DECAL

PLATE - decal, transmission control

1шт.

38

321-5913

DECAL

PLATE - decal, Off-Road-All-Flood switch

1шт.

39

321-5009

DECAL

PLATE - decal, auxiliary steering

1шт.

40

321-4425

DECAL

PLATE - decal, cold start

1шт.

41

321-6037

DECAL

PLATE - decal, On-Off-On

1шт.

42

151-525

RIVET,Pop, 1/8" x .275"

POP RIVET - items, 27, 38, 39, 40, 41, 42, and 43

1шт.

43

321-5316

DECAL

- Case, right-hand hood, if used, order item 7 (replaces 321-3094)

1шт.

44

L110685

DECAL

- Case, left-hand hood, if used, order item 8 (replaces 321-3093)

1шт.

45

321-3126

DECAL

- Case, front, if used

1шт.

46

321-3098

DECAL

- Case, rear, if used

1шт.

47

321-4137

DECAL

- instrument panel, if used

1шт.
