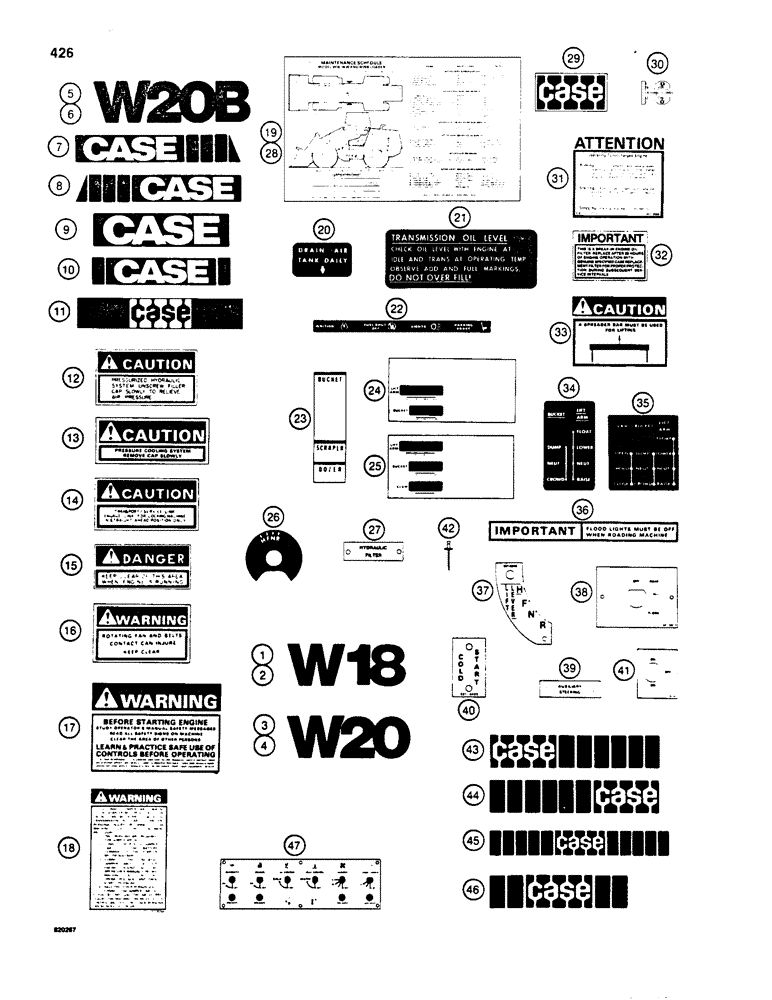

Запчасти Case W20B (426) - DECALS (09) - CHASSIS/ATTACHMENTS

L36169

KIT

- decal, W18, Includes: Ref. 1 - 27

1шт.

L36170

KIT

- decal, W20, Includes: Ref. 1 - 27

1шт.

L36174

KIT

- decal, W20B, Includes: Ref. 1 - 27

1шт.

1

321-3164

DECAL

K- W18, canopy models, in L36169 kit only

2шт.

2

321-3077

DECAL

- W18, cab models, in L36169 kit only

2шт.

3

321-3165

DECAL

- W20, canopy models, in L36170 kit only

2шт.

4

321-3078

DECAL

- W20, cab models, in L36170 kit only

2шт.

5

321-4297

DECAL

- W20B, canopy models, in L36174 kit only

2шт.

6

321-4298

DECAL

- W20B, cab models, in L36174 kit only

2шт.

7

321-5316

DECAL

- Case, right-hand hood, if used

1шт.

8

321-5315

DECAL

- Case, left-hand hood, if used

1шт.

9

321-5306

DECAL

- Case, front, if used

1шт.

10

321-5305

DECAL

- Case, rear, if used

1шт.

11

L57685

DECAL

- Case, instrument panel

1шт.

12

321-3598

DECAL

- Caution, hydraulic tank

1шт.

13

321-3061

DECAL

- Caution, pressure cap

1шт.

14

321-3206

DECAL

- Caution, safety link

1шт.

15

321-3205

DECAL

- Danger

2шт.

16

321-3596

DECAL

- Warning, fan

1шт.

17

321-3705

DECAL

- Warning, before operation of machine

1шт.

18

321-6244

DECAL

- Warning, jump start

1шт.

19

321-4306

DECAL

MAINTENANCE CHART - for use before the following models and serial numbers: W18 - SN 9142570, W20 - SN 9142570, and W20B - SN 9143074, this decal is part of L36174 kit only, order separately for W18 and W20 models, if used, see Figure 428

1шт.

20

321-1077

DECAL

- drain air tank daily

1шт.

21

321-1980

DECAL

- transmission oil level

1шт.

22

321-2613

DECAL

- instrument cluster

1шт.

23

321-2090

DECAL

- 4-in-1 Bucket Position

1шт.

24

321-4139

DECAL

- loader controls, 2 spool, cab models, see ref 34, for canopy models

1шт.

25

321-4138

DECAL

- loader controls, 3 spool, cab models, see ref 35, for canopy models

1шт.

26

321-1047

DECAL

- transmission control

1шт.

27

231-6313

PLATE - decal, hydraulic filter, not part of L36174 kit, order separately for W20B

1шт.

28

321-6408

DECAL

MAINTENANCE CHART - for use on and after the following models and serial numbers: W18 - SN 9142570, W20 - SN 9142570, and W20B - SN 9143074, if used, see item 19

1шт.

29

321-4739

EMBLEM

MEDALLION - Case

1шт.

30

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - special, push on

2шт.

31

321-2605

DECAL

- turbocharger protection

1шт.

32

321-3863

DECAL

- oil filter

1шт.

33

321-3574

DECAL

- Caution, lift and tie down instructions

1шт.

34

321-1075

DECAL

- loader controls, 2 spool, canopy models, see ref 24 for cab models

1шт.

35

321-1663

DECAL

- loader controls, 3 spool, canopy models, see ref 25 for cab models

1шт.

36

321-4632

DECAL

- important, flood lights

1шт.

37

321-6243

DECAL

PLATE - decal, transmission control

1шт.

38

321-5913

DECAL

PLATE - decal, Off-Road-All-Flood switch

1шт.

39

321-5009

DECAL

PLATE - decal, auxiliary steering

1шт.

40

321-4425

DECAL

PLATE - decal, cold start

1шт.

41

321-6037

DECAL

PLATE - decal, On-Off-On

1шт.

42

151-525

RIVET,Pop, 1/8" x .275"

POP RIVET - refs, 27, 38, 39, 40, 41, 42, and 43

1шт.

43

321-5316

DECAL

- Case, right-hand hood, if used, order ref 7 (replaces 321-3094)

1шт.

44

L110685

DECAL

- Case, left-hand hood, if used, order ref 8 (replaces 321-3093)

1шт.

45

321-3126

DECAL

- Case, front, if used

1шт.

46

321-3098

DECAL

- Case, rear, if used

1шт.

47

321-4137

DECAL

- instrument panel, if used

1шт.
