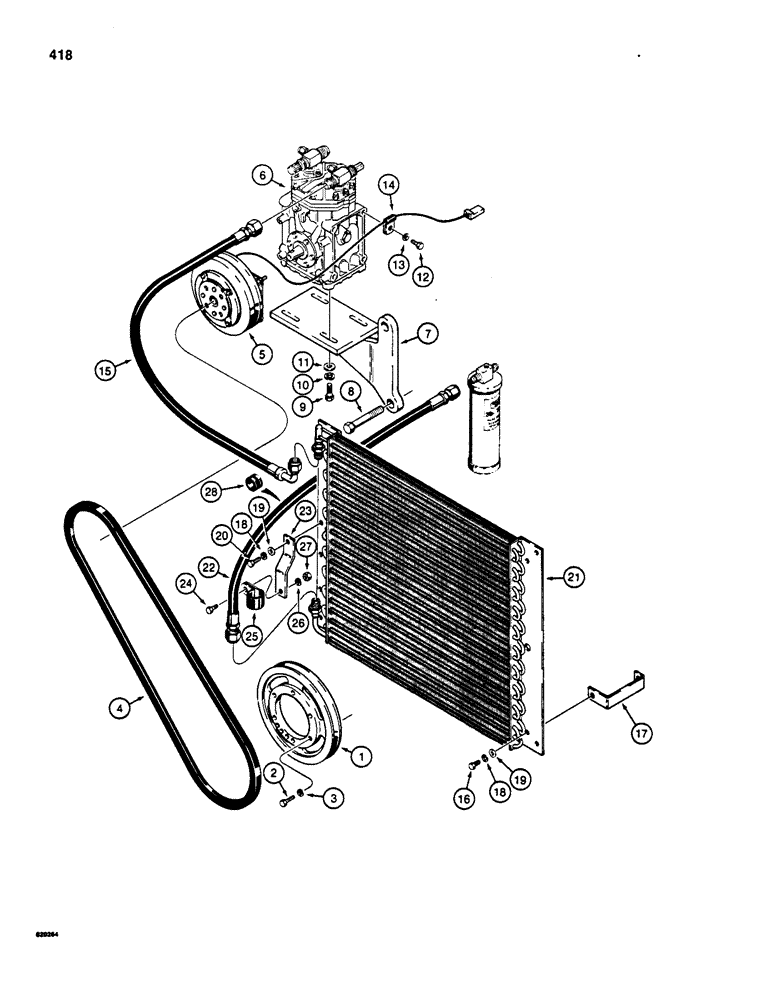

Запчасти Case W20B (418) - AIR CONDITIONING LINES (09) - CHASSIS/ATTACHMENTS

1

L72402

PULLEY

SPARE PART PULLEY - air conditioning drive

1шт.

2

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

6шт.

3

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

6шт.

4

L59258

V-BELT,0.60" W x 57.75" L

Compressor

1шт.

5

L70226

CLUTCH

CLUTCH ASSEMBLY - parts list Figure 422

1шт.

6

A141060

COMPRESSOR

COMPRESSOR - air conditioning, parts list Figure 422

1шт.

6

417888C93

AIRCOND. COMPRESSOR

Compressor Assy., A/C

1шт.

6

1924004C2

REMAN-A/C COMPRESSOR

Reman For New P/N 417888C93

1шт.

6

1924005C1

CORE-A/C COMPRESSOR

Return Number

1шт.

7

L70981

SUPPORT ASSY.

SPARE PART SUPPORT - compressor

1шт.

8

13-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

BOLT, Hex, 3/4"-10 x 3 1/2", G5

2шт.

9

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

BOLT, Hex, 3/8"-16 x 1 3/4", G5

4шт.

10

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

11

95-6

WASHER,3/8"

WASHER - flat, 3/8"

4шт.

12

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT - hex head, 3/8" - 16 NC x 1/2"

1шт.

13

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.

14

D43839

CLAMP

CLAMP - wire

1шт.

15

L59206

HOSE ASSY.

SPARE PART HOSE, Serial Range: --condenser

1шт.

16

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT - hex head, 3/8" - 16 NC x 1/2"

4шт.

17

L71017

BRACKET

SPARE PART BRACKET - condenser

4шт.

18

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

19

95-6

WASHER,3/8"

WASHER - flat, 3/8"

6шт.

20

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

21

L59400

CONDENSER

CONDENSER - air conditioner

1шт.

22

L59153

A/C HOSE,0.41" ID x 18.00", SAE J51 Type A

1шт.

23

L70335

BRACKET

SPARE PART BRACKET - hose support

1шт.

24

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

25

D20302

CLAMP,7/8", Insul, 3/8" Bolt

CLAMP - hose

1шт.

26

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.

27

25-106

NUT,3/8"-16, G5

NUT - hex, 3/8" - 16 NC

1шт.

28

D35078

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

GROMMET

1шт.
