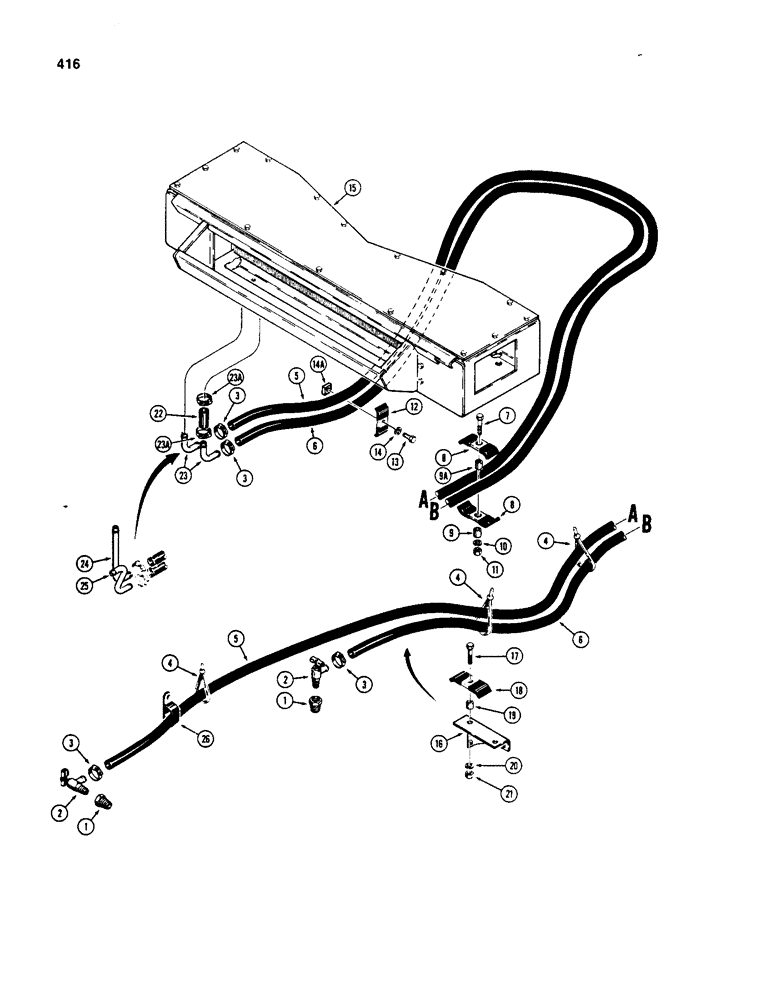

Запчасти Case W20B (416) - HEATER LINES (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
221-1089
REDUCER,Hex, 1/2" x 3/8" NPT
BUSHING - reducer
2шт.
2
A16764
VALVE
- shutoff
2шт.
3
214-253
HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm
CLAMP - hose
4шт.
4
L18331
CABLE TIE,375.9mm L, Nylon, Black
TIE STRAP - hose
1шт.
5
L52721
HOSE,3124.00 mm, SAE 20R3
- 5/8" (16 mm) ID x 158" (4013 mm) long, use A42610 hose
1шт.
6
A19943
HOSE
- 5/8" (16 mm) ID x 123" (3124 mm) long, use A42610 hose
1шт.
7
13-640
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5
- hex head, 3/8" - 16 NC x 2-1/2"
1шт.
8
D40236
CLAMP
- hose
2шт.
9
D29040
BUSHING
SPACER - clamp
1шт.
9a
33126
BUSHING
SPACER - clamp
1шт.
10
92-6
LOCK WASHER,3/8"
1шт.
11
25-106
NUT,3/8"-16, G5
- hex, 3/8" - 16 NC
1шт.
12
D40236
CLAMP
- hose
1шт.
13
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
1шт.
14
92-6
LOCK WASHER,3/8"
1шт.
14a
25-286
NUT,Sq, 3/8"-16, G2, Hvy
SQUARE NUT - 3/8"
1шт.
15
REF
INSTRUCTION
PLENUM - see figures 412 and 414
1шт.
16
L73911
BRACKET
- hose support
1шт.
17
413-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
1шт.
18
D40236
CLAMP
- hose
1шт.
19
33126
BUSHING
SPACER - clamp
1шт.
20
92-6
LOCK WASHER,3/8"
1шт.
21
25-106
NUT,3/8"-16, G5
- hex, 3/8" - 16 NC
1шт.
22
REF
INSTRUCTION
HOSE - heater, 5/8" (16 mm) ID x 2" (51 mm) long, cut from A42610 hose, see below, used with box type plenum, see figure 412
1шт.
23
A60823
ELBOW
- 90 degree, used with box type plenum, see figure 412
2шт.
23a
214-253
HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm
CLAMP - hose, used with box type plenum, see figure 412
2шт.
24
L100842
HEATER TUBE,147.5, 63.5 mm L
TUBE - inlet, used with open type plenum, see figure 414
1шт.
25
L100843
HEATER TUBE,127, 95 mm L
TUBE - outlet, used with open type plenum, see figure 414
1шт.
26
51200320
CLAMP
- hose, used with open type plenum, see figure 414
1шт.
A42610
LARGE HOSE
HOSE - bulk roll, not shown, 5/8" (16 mm) ID x 50 ft. (15.2 m) long, used with open type plenum, see figure 414
1шт.
Выбрано товаров: 30
