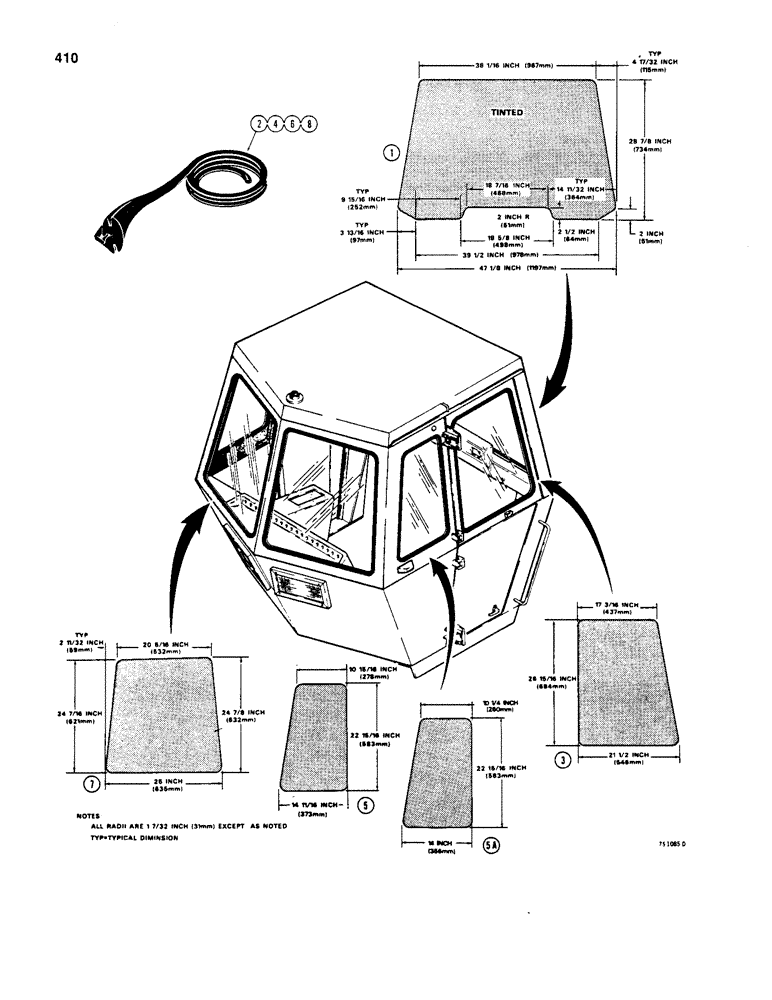

Запчасти Case W20B (410) - CAB GLASS AND MOLDINGS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

GLASS - windshield

1шт.

All cab glass must be obtained from local sources. Order laminated safety glass to dimensions shown on opposite figure.

1шт.

2

REF

INSTRUCTION

MOLDING - windshield, 149" (3785 mm) long, cut from A42677 bulk, used before cab SN 27750

1шт.

2

REF

INSTRUCTION

MOLDING - windshield, 149" (3785 mm) long, cut from L35717 bulk, used on cab SN 27750 and after

1шт.

3

REF

INSTRUCTION

GLASS - door

2шт.

All cab glass must be obtained from local sources. Order laminated safety glass to dimensions shown on opposite figure.

1шт.

4

REF

INSTRUCTION

MOLDING - door, 96" (2438 mm) long, cut from A42677 bulk, used before cab SN 27750

2шт.

4

REF

INSTRUCTION

MOLDING - door, 96" (2438 mm) long, cut from L35717 bulk, used on cab SN 27750 and after

2шт.

5

REF

INSTRUCTION

GLASS - side panel, used before cab SN 27750

2шт.

All cab glass must be obtained from local sources. Order laminated safety glass to dimensions shown on opposite figure.

1шт.

5a

REF

INSTRUCTION

GLASS - side panel, used on cab SN 27750 and after

2шт.

All cab glass must be obtained from local sources. Order laminated safety glass to dimensions shown on opposite figure.

1шт.

6

REF

INSTRUCTION

MOLDING - side panel, 73" (1854 mm) long, cut from A42677 bulk, used before cab SN 27750

2шт.

6

REF

INSTRUCTION

MOLDING - side panel, 73" (1854 mm) long, cut from L35717 bulk, used on cab SN 27750 and after

2шт.

7

REF

INSTRUCTION

GLASS - rear window

2шт.

All cab glass must be obtained from local sources. Order laminated safety glass to dimensions shown on opposite figure.

1шт.

8

REF

INSTRUCTION

MOLDING - rear window, 98" (248 mm) long, cut form A42677 bulk, used before cab SN 27750

2шт.

8

REF

INSTRUCTION

MOLDING - rear window, 98" (2489 mm) long, cut from L35717 bulk, used on cab SN 27750 and after

2шт.

9

A42677

MOLDING

- bulk, 50 ft. (15.2 m) roll, not shown

1шт.

9

L35717

GASKET

MOLDING - bulk, 50 ft. (15.2 m) roll, not shown

1шт.
