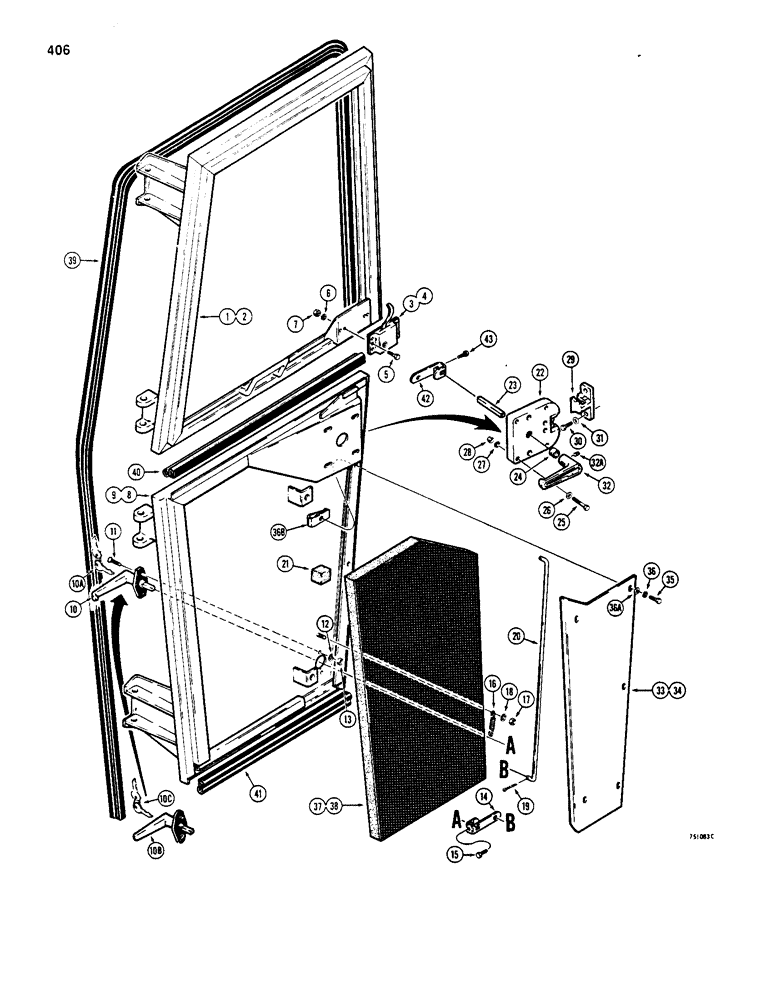

Запчасти Case W20B (406) - CAB DOORS (09) - CHASSIS/ATTACHMENTS

1

N6994

DOOR

ASSEMBLY - upper, right-hand, service replacement, not shown, also includes refs 24 - 29 on Figure 398, and all refs on Figure 400

1шт.

2

N6995

DOOR

ASSEMBLY - upper, left-hand, service replacement, also includes refs 24 - 29 on Figure 338, all refs on Figure 400

1шт.

3

D71511

LATCH

- upper door, left-hand, not shown

1шт.

4

D71512

LATCH

- upper door, right-hand

1шт.

5

187-582

SELF-TAP SCREW,0.19"-32 x 1/2"

BOLT - hex head, No. 10 - 32 NF x 1/2"

4шт.

6

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

7

129-37

NUT,#10-32

4шт.

8

N7007

DOOR

ASSEMBLY - lower, right-hand, service replacement, not shown, also 24 - 29 on Figure 398, all refs on Figure 400, and refs 29 - 31 below

1шт.

9

N7008

DOOR

ASSEMBLY - lower, left-hand, service replacement, not shown

1шт.

10

D71525

HANDLE

ASSEMBLY - outside, locking, mounting holes on 1-3/4" centers, if used, no longer available, order D83139 handle assembly, Includes: Ref. 10A

2шт.

10a

42653

KEY - D71525 handle only, set of 2

1шт.

10b

D83139

HANDLE

ASSEMBLY - outside, locking, mounting holes on 1-13/16" centers, includes D83205 keys, Includes: Ref. 10C

2шт.

10c

D83205

KEY

- D83139 handle only, set of 2

1шт.

11

163-23

SCREW,Hex, #10 - 32 x 3/4"

MACHINE SCREW - hex head slotted, No. 10 - 32 NF x 3/4"

4шт.

12

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

13

129-37

NUT,#10-32

4шт.

14

D73710

ARM

- latch, bottom

2шт.

15

22-48

SELF-TAP SCREW,Hex, 1/4" - 20 x 1/2", Gr 2

BOLT - hex, self-tapping, 1/4" - 20 NC x 1/2"

2шт.

16

L35748

SPRING

- arm return, if used

2шт.

17

131-47

LOCK NUT,Prev Torque, Hex, #10 - 32, Gr B

NUT - hex, self-locking, No. 10 - 32 NF, if used

2шт.

18

92-3

LOCK WASHER,#10

WASHER, LOCK, , If used #10

2шт.

19

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4", used with D71516, early production

4шт.

20

D71516

ROD

- latch pull, may or may not require cotter pins, ref 19

2шт.

21

REF

INSTRUCTION

STRIP - foam, 1" (25 mm) long, if used, cut from D70610 bulk, see bottom of Figure 408

2шт.

22

F89824

LATCH

- door

2шт.

23

D72728

SPLINE

SHAFT - door latch

2шт.

24

D72729

BUSHING

SPACER - door latch

2шт.

25

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"- 20 x 1 1/2", G5

8шт.

26

195-102

WASHER,1/4"

- flat, 1/4"

8шт.

27

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

28

25-104

NUT,1/4"-20, G5

8шт.

29

F63580

PLATE

STRIKER - door

2шт.

30

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

31

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

32

F63925

HANDLE

- inside, includes set screw, Includes: Ref. 32A

2шт.

32a

176-48

SET SCREW,5/16"-18 x 1 1/4", Slotted

- slotted, cone point, 5/16" - 18 NC x 1/4"

1шт.

33

D87159

PANEL

- door cover, right-hand, not shown

1шт.

34

D87160

PANEL

- door cover, left-hand

1шт.

35

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

10шт.

36

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

10шт.

36a

195-102

WASHER,1/4"

- flat, 1/4"

10шт.

36b

131-646

SPRING NUT,Tinn, U, 1/4"-20

- U-type

10шт.

37

D71514

FOAM

- lower door, right-hand, not shown

1шт.

38

D71515

INSULATOR

FOAM - lower door, left-hand

1шт.

39

REF

INSTRUCTION

SEAL - door frame, 136" (3454 mm) long, cut from F43086 bulk seal, see below

2шт.

40

REF

INSTRUCTION

SEAL - top of lower door, 24" (610 mm) long, cut from F43086 bulk seal, see below

2шт.

41

REF

INSTRUCTION

SEAL - bottom of lower door, 17" (432 mm) long, cut from F43086 bulk seal, see below

2шт.

42

D73710

ARM

- latch, top

2шт.

43

22-48

SELF-TAP SCREW,Hex, 1/4" - 20 x 1/2", Gr 2

BOLT - hex head, self-tapping, 1/4" - 20 NC x 1/2"

2шт.

D70610

GASKET

FOAM - bulk, 50 ft. (15.2 m) long

1шт.

F43086

SEAL

- bulk roll, 100 ft. (3048 cm) long

1шт.
