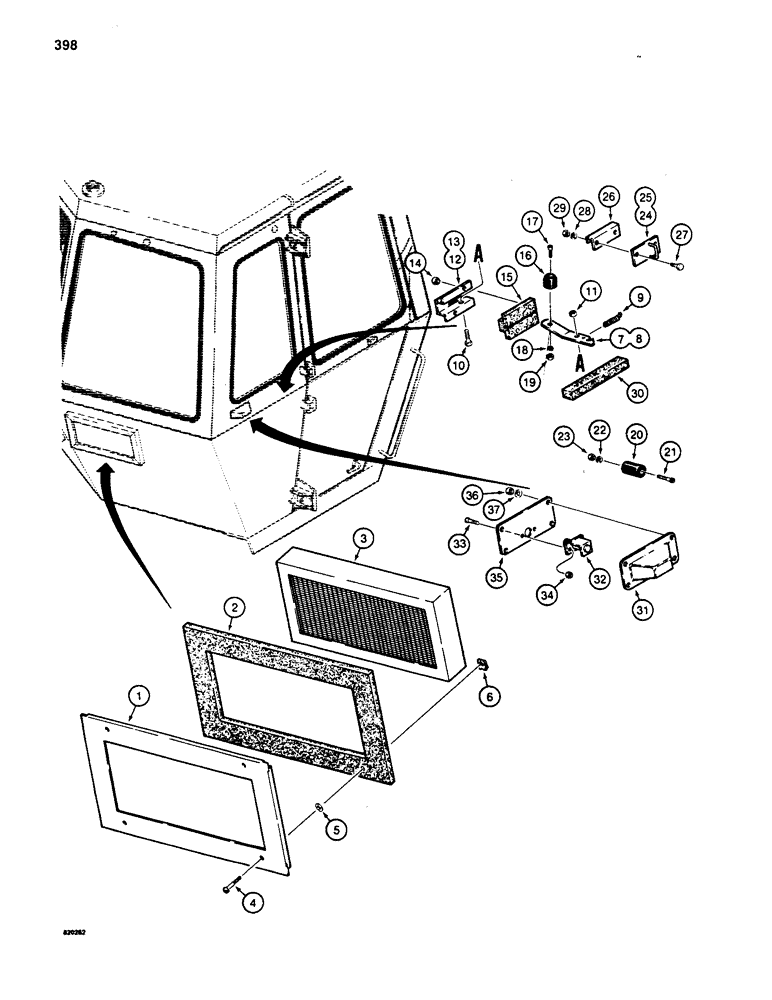

Запчасти Case W20B (398) - CAB FILTER AND LATCHES (09) - CHASSIS/ATTACHMENTS

1

D78394

COVER

FRAME - filter, cab SN 27750 and after

2шт.

1

D71530

FUNNEL

FRAME - filter, before cab SN 27750

2шт.

2

D78395

SEAL

SEAL - D78394 frame

2шт.

2

F43190

SEAL

- D71530 frame, if used

2шт.

3

D80562

AIR CLEANER

ELEMENT - filter

2шт.

4

173-231

SCREW,Sl Rnd Hd, 5/16" - 18 x 1 1/2"

MACHINE SCREW - round head, 5/16" - 18 NC x 1-1/2", used with D78394 frame

8шт.

4

D72843

SCREW

- special, D71530 frame, if used

8шт.

5

A61045

RETAINER

WASHER - special, if used

6шт.

6

131-639

SPRING NUT,U, Rtnr, 5/16" - 18

- U-type, 5/16" - 18 NC

8шт.

6

A61046

CLIP

RETAINER - D72843 screw, if used

6шт.

7

D76957

LATCH

- door, holdback, right-hand

1шт.

8

D76956

LATCH

- door, holdback, left-hand, not shown

1шт.

9

L35748

SPRING

- door latch

2шт.

10

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

11

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

12

D76959

BRACKET

- door, holdback, right-hand

1шт.

13

D76958

BRACKET

- door, holdback, left-hand, not shown

1шт.

14

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC

4шт.

15

D78396

SEAL

- holdback

2шт.

16

L35871

FENDER

CUSHION - rubber

2шт.

17

163-23

SCREW,Hex, #10 - 32 x 3/4"

- pan head, No. 10 - 32 NF x 3/4"

2шт.

18

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

19

129-37

NUT,#10-32

2шт.

20

D78393

CUSHION

- rubber

2шт.

21

182-151

SCREW,Sl Pan Hd, #10 - 32 x 1 1/4"

MACHINE SCREW - round head, No. 10 - 32 NF x 1-1/4"

2шт.

22

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

23

129-37

NUT,#10-32

2шт.

24

NSS

NOT SOLD SEPARAT

LATCH ASSEMBLY - door, holdback, right-hand, if used

1шт.

Must be gotten from sims their part nos. in order are 1300-1632, 1300-1702, and 1400-9665.

1шт.

25

NSS

NOT SOLD SEPARAT

LATCH ASSEMBLY - door, holdback, left-hand, if used, not shown

1шт.

Must be gotten from sims their part nos. in order are 1300-1632, 1300-1702, and 1400-9665.

1шт.

26

NSS

NOT SOLD SEPARAT

BRACKET - door, holdback, if used

2шт.

Must be gotten from sims their part nos. in order are 1300-1632, 1300-1702, and 1400-9665.

1шт.

27

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

If used Hex, 1/4"-20 x 1/2", G5, Full Thd

4шт.

28

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , If used 1/4"

4шт.

29

129-104

NUT,7/16"-14, G5

- hex, 1/4" - 20 NC, if used

4шт.

30

D78389

INSULATOR

SEAL - panel, if used

2шт.

31

F43505

COVER

- window latch, if used

2шт.

32

F43506

LATCH ASSY.

LATCH - holdback, if used

2шт.

33

182-143

SCREW,Cross Pan Hd, #10 - 32 x 3/8"

- pan head, No. 10 - 32 NF x 3/8", if used

4шт.

34

129-37

NUT,#10-32

If used #10-32

4шт.

35

D71513

PLATE

- latch, if used

2шт.

36

25-104

NUT,1/4"-20, G5

If used 1/4"-20, G5

8шт.

37

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , If used 1/4"

8шт.
