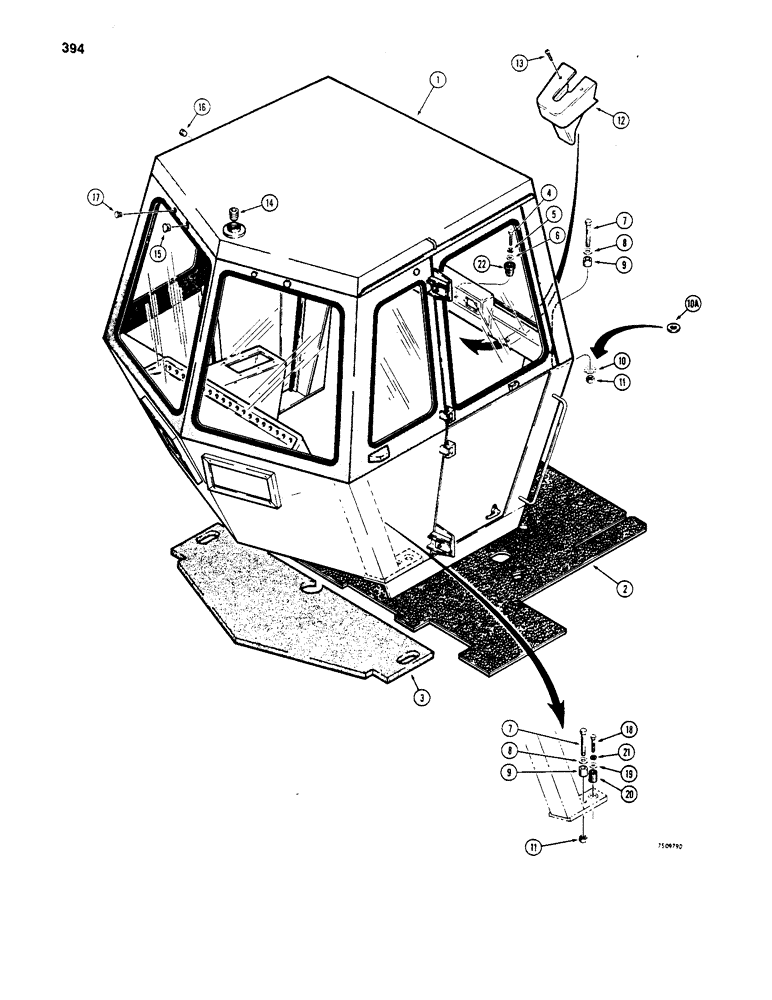

Запчасти Case W20B (394) - CAB MOUNTING (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CAB - operators, machinery item, see Figure 2 for ordering

1шт.

2

L76769

FLOOR MAT

MAT - floor

1шт.

3

L71329

SEAL

- floor

1шт.

4

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1шт.

5

92-8

LOCK WASHER,1/2"

1шт.

6

D25022

WASHER

- flat, before Sims cab SN 21953

1шт.

6

195-2054

WASHER,17/32" x 2" x .238"

- flat, Sims cab SN 21953 and after

1шт.

7

26-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 8

- hex head, 3/4" - 10 NC x 4"

4шт.

8

F42895

WASHER

- flat

4шт.

9

F42894

BUSHING

SPACER - mounting

4шт.

10

L74506

WASHER

- external tooth lock, 3/4", hardened, if used

2шт.

10a

L79179

WASHER

- hardened, 3/4", if used

2шт.

11

129-572

NUT,3/4"-10, G8

4шт.

12

L105615

COVER ASSY

COVER - steering column

1шт.

13

182-542

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

- self-tapping, 1/4" - 20 NC x 1/2"

2шт.

14

353-679

PLUG,Hex Soc, 1"-11 1/2 NPT

- pipe, 3/4" NPT

1шт.

15

353-406

PLUG,Dome, .625" hole, Nylon

- button, 5/8"

2шт.

16

353-405

PLUG,Dome, .562" hole, Nylon

- button, 9.16"

2шт.

17

353-421

PLUG,Dome, .187" hole, Nylon

2шт.

18

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

2шт.

19

195-2055

WASHER,17/32" x 2 1/4" x .180"

- flat, 1/2"

2шт.

20

D74445

RUBBER MOUNTING

CUSHION - rubber mount

2шт.

21

92-8

LOCK WASHER,1/2"

2шт.

22

D74446

BUSHING

CUSHION - rubber mount

1шт.
