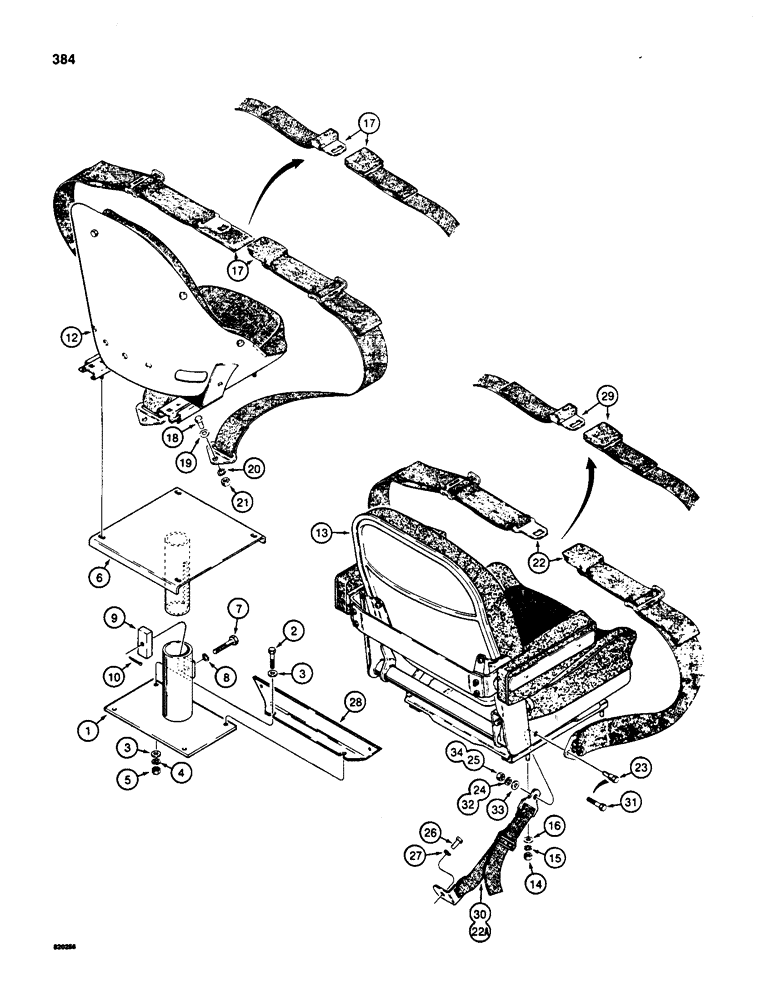

Запчасти Case W20B (384) - SEAT AND MOUNTING PARTS (09) - CHASSIS/ATTACHMENTS

1

L59942

BRACKET

SUPPORT - seat, lower

1шт.

2

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

3

95-6

WASHER,3/8"

- flat, 3/8"

8шт.

4

92-6

LOCK WASHER,3/8"

4шт.

5

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

6

L59946

BRACKET

SUPPORT - seat, upper

1шт.

7

L59949

BOLT (SPREADER)

BOLT - special

1шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

9

L59950

NUT

- special

1шт.

10

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

11

L109872

SEAT

ASSEMBLY - one-piece shell, not shown, parts list Figure 388

1шт.

12

L7247

SEAT - front adjustment lever, parts list Figure 386

1шт.

12

L46484

SEAT

- side adjustment lever, parts list Figure 386

1шт.

13

L73447

SEAT

- suspension, ROPS canopy, parts list Figure 388 and 390

1шт.

13

L73448

SEAT ASSY.

SEAT - suspension, cab, parts list Figure 388 and 390

1шт.

14

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

4шт.

15

92-5

LOCK WASHER,5/16"

4шт.

16

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

4шт.

17

D83760

SAFETY BELT

SEAT BELT - 3" (76 mm) wide

1шт.

17

D75428

SAFETY BELT

SAFETY BELT, 2" (51 mm) wide

1шт.

18

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

19

95-8

WASHER,1/2"

flat 1/2"

2шт.

20

92-8

LOCK WASHER,1/2"

2шт.

21

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

L70502

SAFETY BELT

SAFETY BELT, Suspension seats, Includes Ref. 22 - 25

1шт.

22

NSS

NOT SOLD SEPARAT

SEAT BELT - operator retaining, 3" (76 mm) wide

1шт.

22a

NSS

NOT SOLD SEPARAT

BELT - seat retaining

2шт.

23

A32042

STEP BOLT

BOLT - shoulder, 7/16" - 14 NC x 1-1/2", grade 8

2шт.

These are not part of the L70502. See T/S #300-86D.

1шт.

24

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

These are not part of the L70502. See T/S #300-86D.

1шт.

25

129-104

NUT,7/16"-14, G5

2шт.

These are not part of the L70502. See T/S #300-86D.

1шт.

26

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

27

92-8

LOCK WASHER,1/2"

2шт.

28

L71330

RETAINER

ANGLE - stiffener

1шт.

29

D75997

SAFETY BELT ,1.80" W

1.80" W

1шт.

30

L78471

SAFETY BELT

SAFETY BELT, Seat retaining

2шт.

31

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

2шт.

32

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

33

95-7

WASHER,7/16"

- flat, 7/16"

2шт.

34

129-104

NUT,7/16"-14, G5

2шт.
