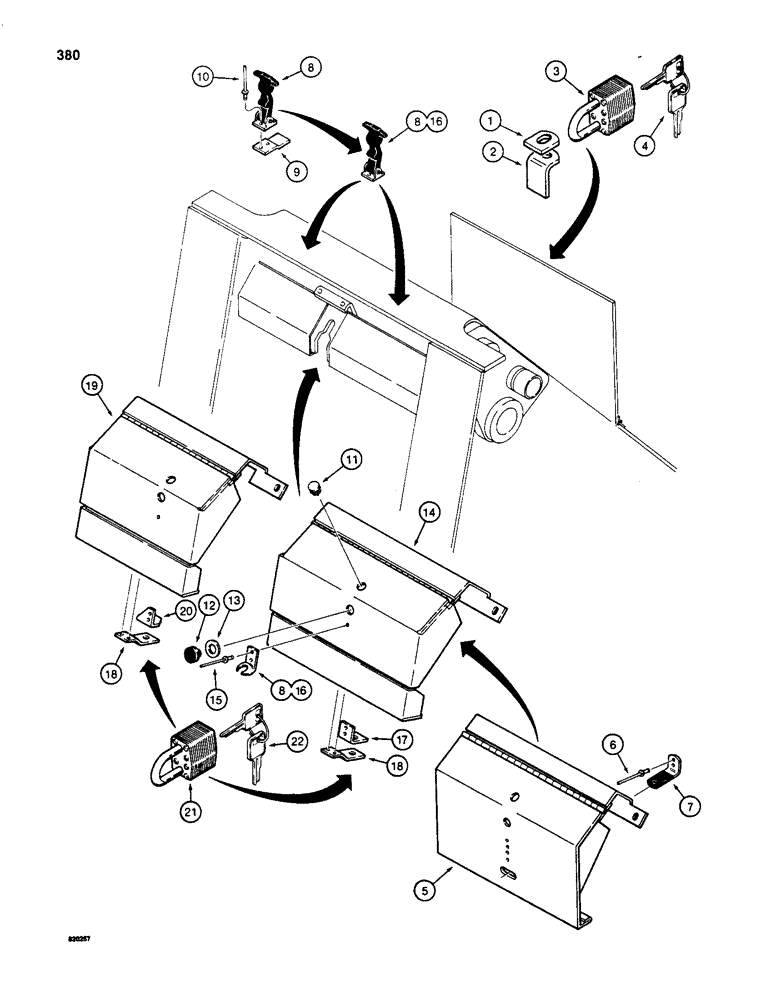

Запчасти Case W20B (380) - FRONT FRAME LOCK UP PARTS (09) - CHASSIS/ATTACHMENTS

1

L76805

STRIP

TAB - hydraulic access door

1шт.

2

L49004

BRACKET

- hydraulic access door

1шт.

3

D93753

PADLOCK

- hydraulic access door, Includes: Ref. 4

1шт.

4

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

4

R29555

KEY

- for Master padlock only

2шт.

5

L71960

COVER

- instrument panel, used before W18 and W20 tractor SN 9142570 and before W20B tractor SN 9143074, if used

1шт.

6

151-526

RIVET,Pop, 1/8" x .337"

- Latch Pop, 1/8" x .337"

3шт.

7

L71962

BRACKET

- lock, if used

1шт.

L72697

LATCH ASSY.

LATCH ASSEMBLY - instrument panel lock up, if used, Includes: Ref. 8 - 10

1шт.

8

L55329

CATCH

HOOK AND LATCH - latch assembly

1шт.

9

L73121

SPACER

- hook and latch, if used

1шт.

10

151-526

RIVET,Pop, 1/8" x .337"

- Latch, if used Pop, 1/8" x .337"

2шт.

11

353-405

PLUG,Dome, .562" hole, Nylon

- cover 9/16

2шт.

12

L60224

BUMPER

- cover

2шт.

13

195-33

WASHER,1/2"

- flat, 1/2"

2шт.

14

L100879

COVER ASSY

COVER - instrument panel, right-hand, used on W18 and W20 tractor SN 9142570 and after and on W20B tractor SN 9143074, and after if used

1шт.

15

151-526

RIVET,Pop, 1/8" x .337"

- Cover Pop, 1/8" x .337"

10шт.

16

L55329

CATCH

HOOD AND LATCH - cover

2шт.

17

L100880

BRACKET

- lock, right-hand cover, if used

1шт.

18

L100881

BRACKET

- lock, if used

2шт.

19

L100877

COVER ASSY

COVER - instrument panel, left-hand, used on W18 and W20 tractor SN 9142570 and after and on W20B tractor SN 9143074 and after

1шт.

20

L105041

STRIP

BRACKET - lock, left-hand cover, if used

1шт.

21

D93753

PADLOCK

- instrument panel cover, Includes: Ref. 22

2шт.

22

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

22

R29555

KEY

- for Master padlock only

2шт.
