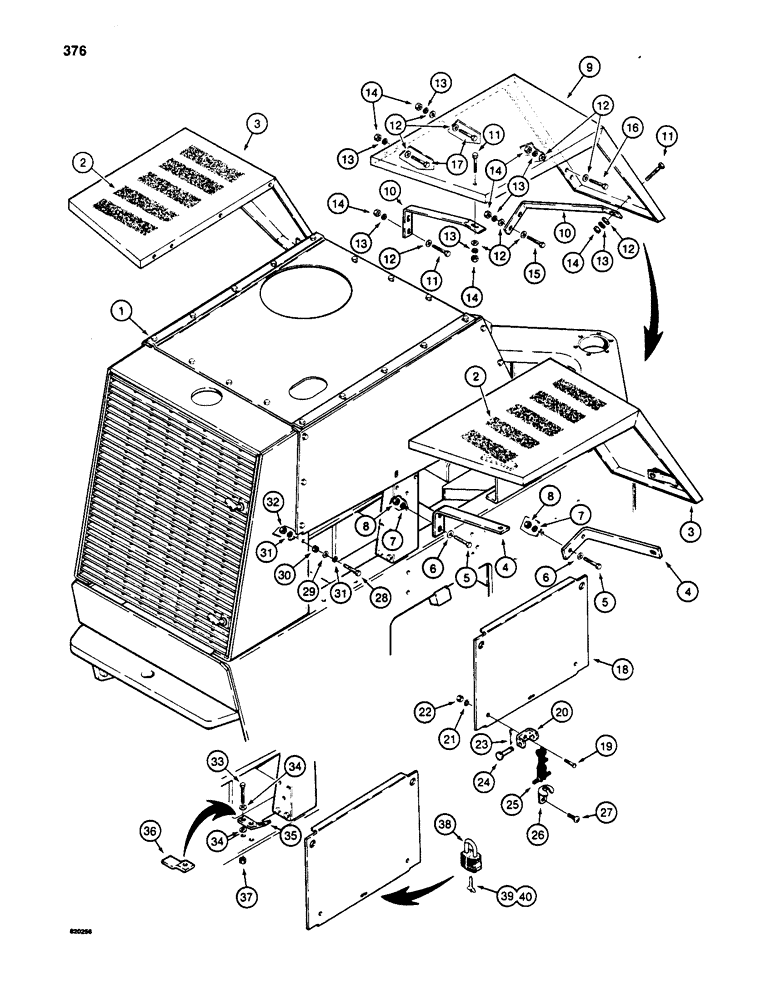

Запчасти Case W20B (376) - REAR FENDERS AND SIDE PANELS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

HOOD - engine, see Figure 372 for related parts

1шт.

2

D55216

PAD,2" x 9"

PAD - non-skid

10шт.

3

L48279

REAR FENDER

FENDER - rear, if used, no longer available, order refs 9 and 10

2шт.

4

L48282

BRACE

- rear fender to frame, used with ref 3

4шт.

5

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

14шт.

6

95-6

WASHER,3/8"

- flat, 3/8"

14шт.

7

92-6

LOCK WASHER,3/8"

14шт.

8

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

14шт.

9

L105705

FENDER

- rear, if used

2шт.

10

L104139

BRACE

- fender, used with ref 9

4шт.

11

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

8шт.

12

95-6

WASHER,3/8"

- flat, 3/8"

26шт.

13

92-6

LOCK WASHER,3/8"

18шт.

14

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

18шт.

15

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

16

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

2шт.

17

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

18

L47146

PANEL ASSY.

PANEL - engine side, 3 on models with air conditioner

3-4шт.

18

L71346

PANEL

- engine side, air conditioner, not shown, if used

1шт.

19

182-242

SCREW,Sl Pan Hd, 5/16" - 18 x 3/4"

- slotted pan head, 5/16" - 18 NC x 3/4"

8шт.

20

L47159

BRACKET

- anchor, hood panel

8шт.

21

92-5

LOCK WASHER,5/16"

8шт.

22

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

8шт.

23

132-45

COTTER PIN,1/8" x 5/8"

Pin, Split (Cotter), 1/8" x 5/8"

8шт.

24

T11232

PIN

- anchor hood panel

8шт.

25

L47157

HOOK

- hood panel

8шт.

26

L47158

BRACKET

- hook, hood panel

8шт.

27

151-552

RIVET,Pop, 3/16" x .825"

- 3/16" x 5/8"

16шт.

28

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

29

95-6

WASHER,3/8"

- flat, 3/8"

8шт.

30

L16674

SLEEVE

- panel support

8шт.

31

92-6

LOCK WASHER,3/8"

8шт.

32

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

6шт.

33

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex head, 5/16" - 18 NC x 1-1/4", if used

8шт.

34

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16", if used

8шт.

35

L51011

BRACKET - engine side panel locking, if used

4шт.

36

L104187

BRACKET

- engine side panel locking, weld on, if used

4шт.

37

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC, if used

8шт.

38

D93753

PADLOCK

- includes keys, if used, Includes: Ref. 39 & 40

4шт.

39

D93751

SET OF 2 KEYS

KEY - for Yale padlock only, if used

2шт.

40

R29555

KEY

- for Master padlock only, if used

2шт.
