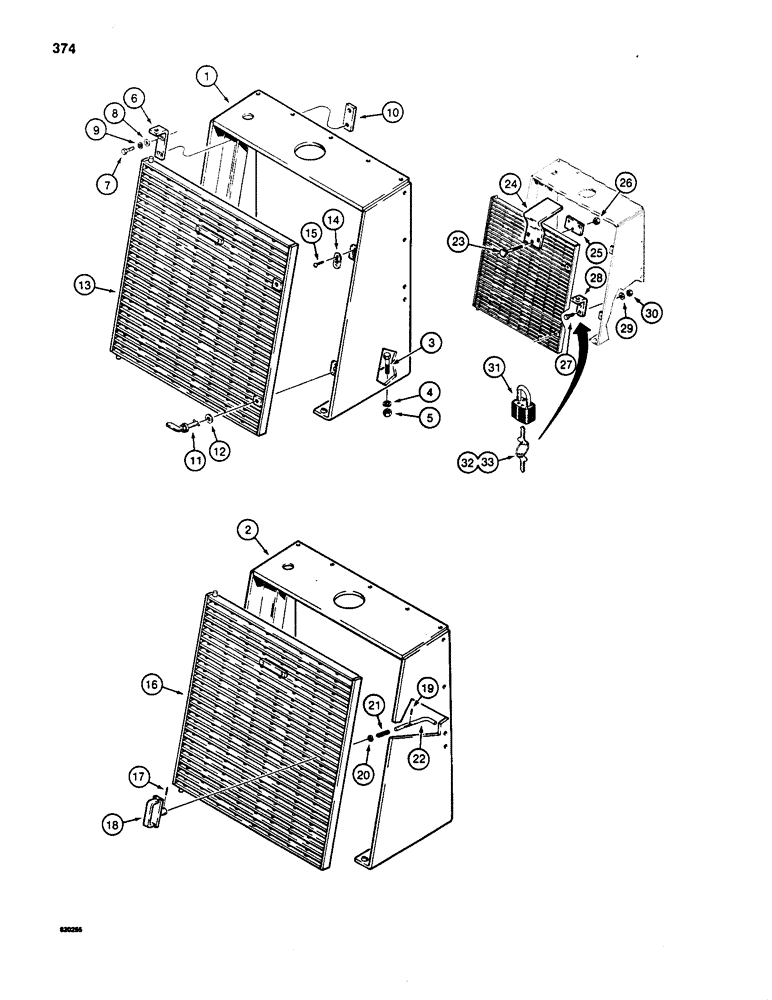

Запчасти Case W20B (374) - GRILLE AND RADIATOR GUARD (09) - CHASSIS/ATTACHMENTS

1

L78589

GUARD ASSY.

GUARD - radiator, used before W18 and W20 tractor SN 9138452 and used before W20B tractor SN 9139130

1шт.

2

L106980

GUARD

- radiator, used on W18 and W20 tractor SN 9138452 and after and used on W20B tractor SN 9139130 and after

1шт.

3

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

4шт.

4

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

5

25-1010

NUT,5/8"-11, G5

4шт.

6

L48386

BRACKET

SUPPORT - grille, upper

1шт.

7

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

8

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

9

92-6

LOCK WASHER,3/8"

2шт.

10

L48698

BLOCK ASSY.

BLOCK - tapped, grille support

1шт.

11

L55533

RETAINER

- grille, L78589 guard

2шт.

12

L48760

WASHER

- special, grille retainer, L78589 guard

2шт.

13

L101359

GRILLE

- radiator, L78589 guard

1шт.

14

L48759

CONNECTION,ELECTRIC

RETAINER - L78589 guard

2шт.

15

151-548

RIVET,Pop, 1/8" x .462"

- blind, L78589 guard

4шт.

16

L105257

RADIATOR GRILLE

GRILLE - radiator, L106980 guard

1шт.

17

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, , L106980 guard 1/8" x 3/4", Slotted

1шт.

18

L73738

HANDLE

- grille latch, L106980 guard

1шт.

19

138-55

LOCK PIN,1/8" x 5/8", Slotted

PIN, , L106980 guard 1/8" x 5/8", Slotted

1шт.

20

195-25

WASHER,3/8"

- flat, 7/8", L106980 guard

1шт.

21

L76665

SPRING

- latch, L106980 guard

1шт.

22

L73742

ROD

- latch, L106980 guard

1шт.

23

11-528

BOLT,Short NK, 5/16"-18 x 1 3/4", G2

CARRIAGE, 5/16"-18 x 1 3/4", G2, If used

3шт.

24

L50933

COVER

- radiator cap access hole, if used

1шт.

25

L50932

PLATE

cover mounting, if used

1шт.

26

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC, if used

3шт.

27

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

If used Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

28

L50176

BRACKET - grille lock, if used

1шт.

29

95-6

WASHER,3/8"

- flat, , if used 3/8"

2шт.

30

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, if used

2шт.

31

D93753

PADLOCK

- includes keys, if used, Includes: Ref. 32 & 33

1шт.

32

D93751

SET OF 2 KEYS

KEY - for Yale padlock only, if used

2шт.

33

R29555

KEY

- for Master padlock only, if used

2шт.
