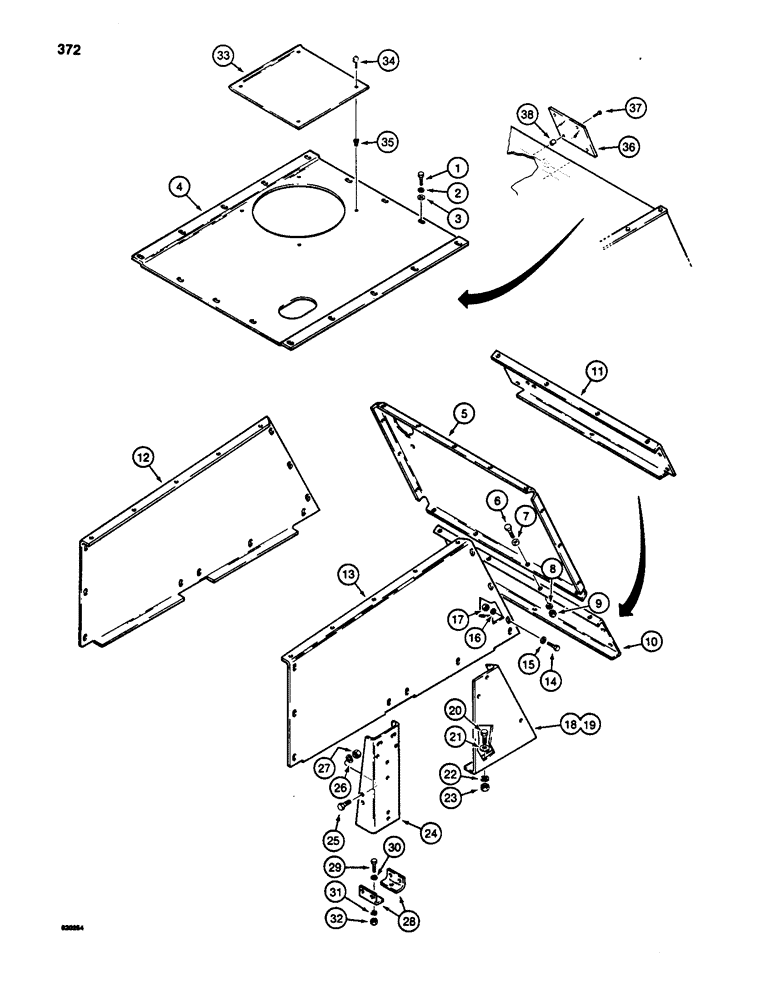

Запчасти Case W20B (372) - HOOD AND FRONT PANEL (09) - CHASSIS/ATTACHMENTS

1

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

16шт.

2

92-6

LOCK WASHER,3/8"

16шт.

3

95-6

WASHER,3/8"

- flat, 3/8"

16шт.

4

L107273

TOP

- hood, non turbocharged models

1шт.

4

L70190

HOOD

TOP - hood, turbocharged models, not shown

1шт.

5

L70049

PANEL - front, upper

1шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

7

95-6

WASHER,3/8"

- flat, 3/8"

8шт.

8

92-6

LOCK WASHER,3/8"

8шт.

9

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

8шт.

10

L46198

STRAP

PANEL - front, lower, used on W18 and W20 before tractor SN 9142496 and used on W20B before tractor 9142917

1шт.

11

L106063

STRAP

PANEL - front, lower, used on W18 and W20 tractor SN 9142496 and after and used on W20B tractor SN 9142917 and after

1шт.

12

L78779

PANEL, SIDE

SIDE PANEL - hood, left-hand

1шт.

13

L109304

PANEL

SIDE PANEL - hood, right-hand

1шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

18шт.

15

95-6

WASHER,3/8"

- flat, 3/8"

18шт.

16

92-6

LOCK WASHER,3/8"

18шт.

17

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

6шт.

18

L46196

SUPPORT - hood, front, right-hand

1шт.

19

L100714

SUPPORT

- hood, front, left-hand, not shown

1шт.

20

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

21

95-8

WASHER,1/2"

flat 1/2"

4шт.

22

92-8

LOCK WASHER,1/2"

4шт.

23

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

24

L109530

POST

- hood mounting, center

2шт.

25

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

26

92-6

LOCK WASHER,3/8"

8шт.

27

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

8шт.

28

L47950

SUPPORT

BRACKET - center post to frame, if used

4шт.

29

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

4шт.

30

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

31

92-6

LOCK WASHER,3/8"

4шт.

32

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

33

L55339

COVER

- air cleaner

1шт.

34

183-111

SCREW - winged, 1/4" - 20 NC x 3/4"

4шт.

35

L107270

NUT

- special

4шт.

36

L54570

COVER

- tachometer, front panel, if used

1шт.

37

187-491

SELF-TAP SCREW,Hex Hd, 1/4" x 1"

SCREW - self-tapping, No. 14 - 10 NC x 1", if used

4шт.

38

L72459

SPACER

- cover, if used

4шт.
