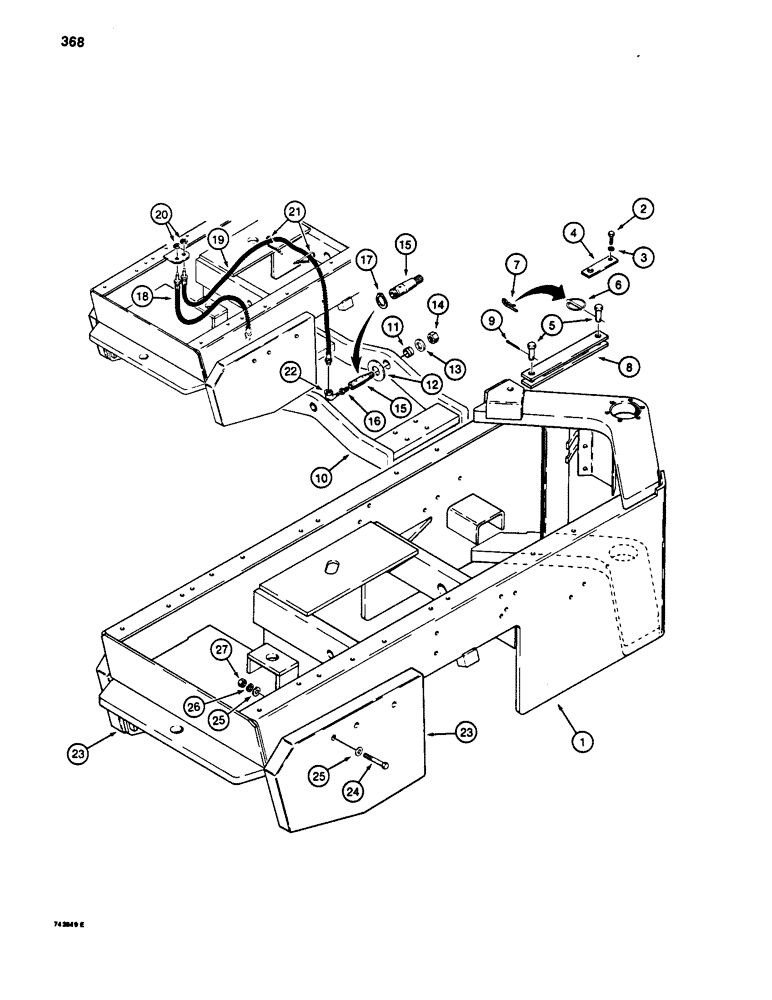

Запчасти Case W20B (368) - REAR FRAME AND TRUNNION (09) - CHASSIS/ATTACHMENTS

1

L100727

CHASSIS

REAR FRAME - models with four batteries

1шт.

1

L107963

CHASSIS

REAR FRAME - models with two batteries

1шт.

2

26-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

- hex head, 5/8" - 11 NC x 2"

1шт.

3

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

4

L47536

BRACKET

- storage, safety link

1шт.

5

L14050

PIN

- use L77379 pin and 136-164 hair pin

2шт.

5

L77379

PIN

- link retaining

2шт.

6

A30338

PIN

- self-locking, L14050 pin

1шт.

7

136-164

COTTER PIN,Int, 5/16" x .120"

HAIR PIN - L77379 pin

1шт.

8

L47533

BAR

LINK - safety, front to rear frame

1шт.

9

132-150

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), , L14050 pin 1/4" x 1 1/2"

1шт.

9

132-52

COTTER PIN,1/8" x 1 1/2"

- 5/32" x 1-1/2", L77379 pin

1шт.

L58933

TRUNNION

ASSEMBLY - rear frame, Includes: Ref. 10 & 11

1шт.

10

NSS

NOT SOLD SEPARAT

TRUNNION - rear frame

1шт.

11

L71372

BUSHING,51.03mm ID x 63.65mm OD x 44.45mm L

- trunnion

2шт.

12

L47422

WASHER,51.3mm ID x 114mm OD x 6.35mm Thk

SHIM - 1/4" (6 mm) thick

1шт.

12

L47423

WASHER

SHIM - 1/8" (3 mm) thick

1шт.

12

L47424

WASHER,51.3mm ID x 114mm OD x 4.76mm Thk

SHIM - 3/16" (5 mm) thick

1шт.

13

L47224

WASHER

- special

2шт.

14

131-43

LOCK NUT,1 1/2"-12

NUT - hex, self-locking, 1-1/2" - 12 NF

2шт.

15

L73076

PIVOT

PIN - trunnion pivot

2шт.

Pin replaced by L77580 Pin-trunion pivot, was adopted for a short time but Terre Haute switched back to L73076 Pin. Per ECS #5977-8.

1шт.

16

L52499

BOLT

FITTING - special

2шт.

17

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

2шт.

18

L54693

HOSE

- grease, 27" (686 mm) long

1шт.

19

L54694

HOSE,4.8mm ID x 1041mm L

- grease, 41" (1041 mm) long

1шт.

20

F53473

LOCK NUT,1/8-27 NPSM

- lock

2шт.

21

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - grease hose retaining

2шт.

22

219-402

ADAPTER,90 Degree, 1/4"-1/8 NPTF

STREET ELBOW - 90 degree

2шт.

23

L53315

WEIGHT

COUNTERWEIGHT - rear frame

2шт.

24

15-1696

CAPSCREW,Hex, 1" - 8 x 6"

BOLT - hex head, 1" - 8 NC x 6", counterweight

4шт.

25

195-53

WASHER,1" x 2" x .134"

- flat, 1", counterweight

8шт.

26

92-16

LOCK WASHER,1"

WASHER, LOCK, , Counterweight 1"

4шт.

27

25-1016

NUT,1"-8, G5

Counterweight 1"-8, G5

4шт.
