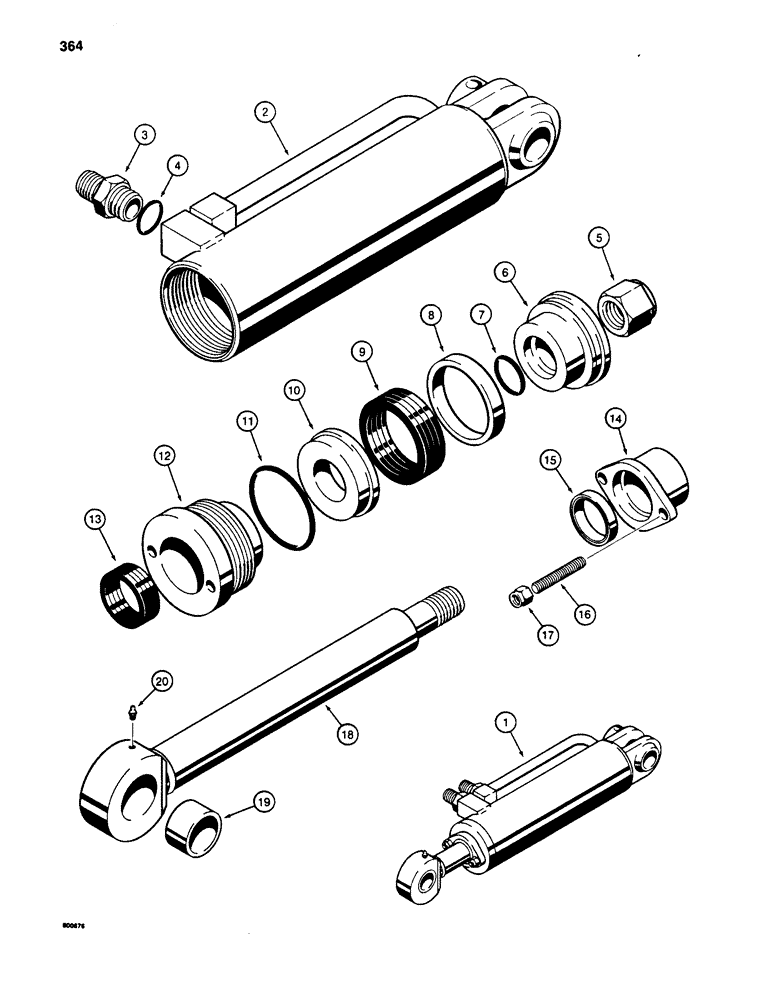

Запчасти Case W20B (364) - A17668 AND A17669 CLAM CYLINDERS, GLAND HAS BOLT ON FLANGE (09) - CHASSIS/ATTACHMENTS

1

A17668

CYLINDER

ASSEMBLY - clam, right-hand, 4" (102 mm) ID x 10" (254 mm) stroke, Includes: Ref. 2 - 20

1шт.

1

A17669

CYLINDER

ASSEMBLY - clam, left-hand, 4" (102 mm) ID x 10" (254 mm) stroke, Includes: Ref. 2 - 20

1шт.

2

A17682

CYLINDER

TUBE ASSEMBLY - right-hand, Includes: Ref. 3 & 4

1шт.

2

A17683

CYLINDER

TUBE ASSEMBLY - left-hand, Includes: Ref. 3 & 4

1шт.

3

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , male, special, Incl. Ref. 4 7/8"-14, 37º x 3/4"-16, O-Ring

2шт.

4

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, connector

1шт.

5

131-22

LOCK NUT,1 1/4"-12, GB

NUT, LOCK, 1 1/4"-12, GB

1шт.

6

A17681

PISTON

- half, nut end

1шт.

7

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

- seal

1шт.

Part of seal kit P/N L32708

1шт.

8

A17686

RING

- wiper

1шт.

Part of seal kit P/N L32708

1шт.

9

A17676

CYLINDER HEAD

PACKING - piston

1шт.

Part of seal kit P/N L32708

1шт.

10

A17678

PISTON

- half, eye end

1шт.

11

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- seal

1шт.

Part of seal kit P/N L32708

1шт.

12

A17676

CYLINDER HEAD

GLAND - packing, outer

1шт.

13

A17675

PACKING

- gland

1шт.

Part of seal kit P/N L32708

1шт.

14

A17674

GLAND

- packing, inner

1шт.

15

A17672

SEAL

SEAL - wiper

1шт.

Part of seal kit P/N L32708

1шт.

16

A17673

STUD

- flange

2шт.

17

131-181

LOCK NUT,3/8"-24, GC

NUT - hex, self-locking, 3/8" - 24 NF

2шт.

18

A17671

ROD

- cylinder, Includes: Ref. 19 & 20

1шт.

19

S23796

BUSHING

- rod

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

L32708

CYLINDER

KIT - seal, Includes: Refs. 7, 8, 9, 11, 13 and 15

1шт.
