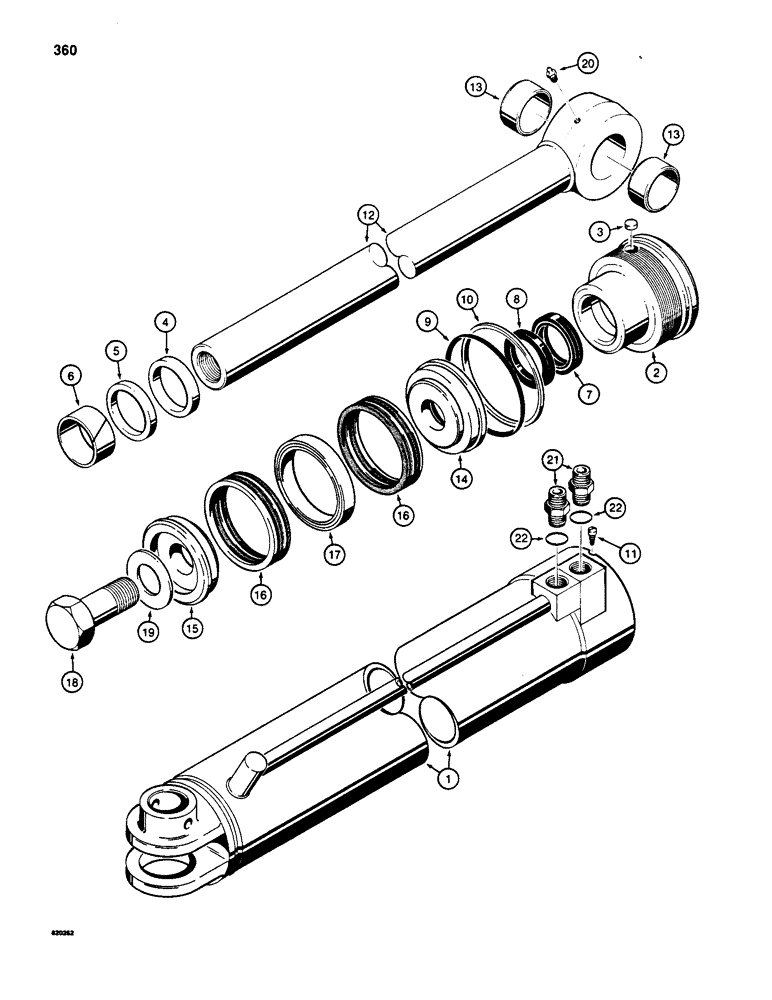

Запчасти Case W20B (360) - G33624 AND G33625 CLAM CYLINDERS, WITH TWO PIECE PISTON (09) - CHASSIS/ATTACHMENTS

G33624

CYLINDER

- left-hand, 4" (102 mm) ID x 10" (254 mm) stroke, order G101565, Figure 362, Includes: Ref. 1 - 20

1шт.

G33625

HYDRAULIC CYLINDER

CYLINDER - right-hand, 4" (102 mm) ID x 10" (254 mm) stroke, order G101564, Figure 362, Includes: Ref. 1 - 20

1шт.

1

G31964

HYD TUBE,18.69" L

TUBE - G33625 cylinder

1шт.

1

G31965

HYD TUBE

TUBE - G33624 cylinder

1шт.

G104407

GLAND

ASSEMBLY - replaces earlier glands without nylon plug, Includes: Ref. 2 - 10

1шт.

2

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

3

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

4

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer

1шт.

Part of seal kit P/N G32299

1шт.

5

NSS

NOT SOLD SEPARAT

RETAINING RING - center bushing

1шт.

6

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BUSHING - center

1шт.

7

D36971

RING

SEAL - piston rod

1шт.

Part of piston rod seal service option P/N G100778

1шт.

Part of seal kit P/N G32299

1шт.

8

G102647

SEAL

- piston rod, narrow, used in addition to ref 6 in some glands

1шт.

9

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- gland

1шт.

Part of seal kit P/N G32299

1шт.

10

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

- Gland

1шт.

Part of seal kit P/N G32299

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, No. 8 - 32 NC x 1-1/4", if used

1шт.

12

G33626

ROD

- piston, 2" (51 mm) diameter, Includes: Ref. 13

1шт.

13

D33127

BUSHING,38.33mm ID x 47.63mm OD x 12.7mm L

- piston rod

2шт.

14

G33159

PISTON

- split, rod end

1шт.

15

D46930

PISTON

- split, bolt end

1шт.

16

D47204

PACKING,89.15mm ID x 100.86mm OD

ASSEMBLY - piston, V-type

2шт.

Part of seal kit P/N G32299

1шт.

17

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

SPACER - packing

1шт.

18

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

- Hex, 1-1/4"-12 NF x 2-1/2", G8

1шт.

19

G32351

WASHER

- hardened

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

21

218-5056

HYD CONNECTOR,1/2"-20, 37 Degree x 1/2"-20, O-Ring

CONNECTOR - straight, Includes: Ref. 22

2шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

G32299

KIT

- seal, Includes: Refs. 4, 7, 9, 10 and 16

1шт.

G100778

SEAL

- piston rod, service option - extreme heat or cold, Includes: Ref. 7

1шт.
