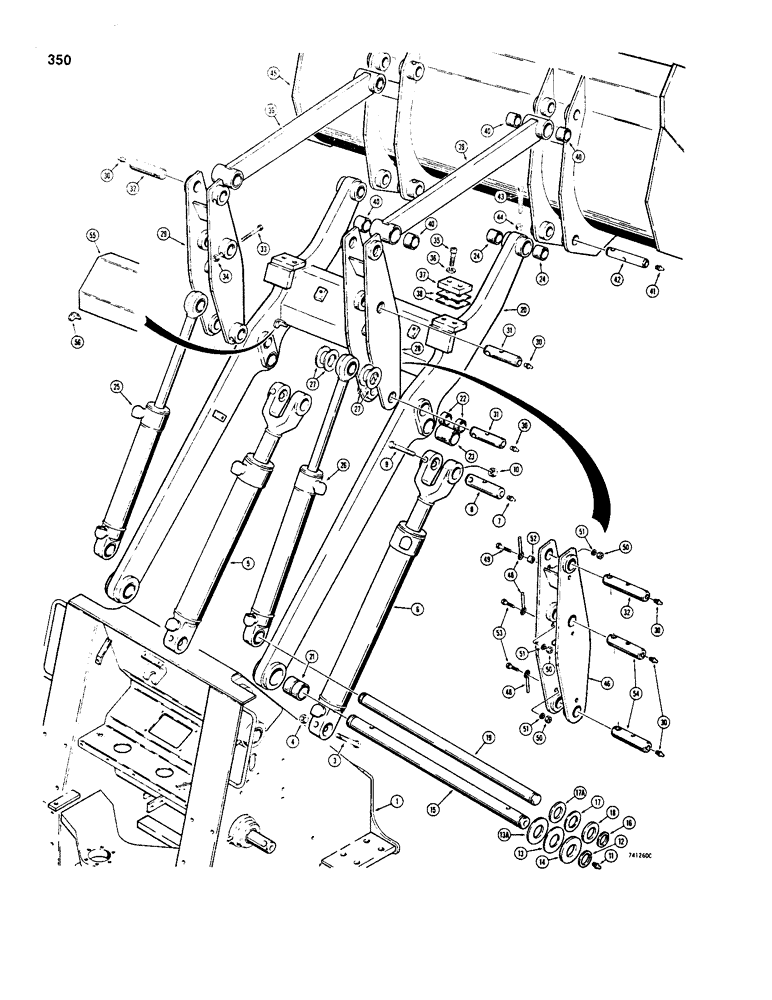

Запчасти Case W20B (350) - LOADER LIFT FRAME AND RELATED PARTS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

FRONT FRAME ASSEMBLY - articulated loader, see Figure 378 for bushings and proper frame

1шт.

3

26-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 8

- hex head, 5/8" - 11 NC x 5-1/2", grade 8

2шт.

4

131-656

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8" - 11 NC

2шт.

5

REF

INSTRUCTION

CYLINDER - left-hand lift, parts list Figure 324

1шт.

6

REF

INSTRUCTION

CYLINDER - right-hand lift, parts list Figure 324

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

8

L15725

PIN

- mounting, lift cylinder to lift frame

2шт.

9

26-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 8

- hex head, 5/8" - 11 NC x 5"

2шт.

10

131-656

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8" - 11 NC

2шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

12

L16016

RING

- pin retaining, lift frame

2шт.

13

L47559

SHIM

WASHER - .312" (7.925 mm) thick

1шт.

13a

L103854

SHIM

THRUST WASHER - lift cylinder, .078" (1.98 mm) thick

1шт.

14

L47699

SHIM

WASHER - .375" (9.525 mm) thick

1шт.

15

L47566

SHAFT

- lift frame pivot

1шт.

16

L16015

RING

- pin retaining, tilt cylinder, closed end

2шт.

17

L47700

WASHER

- .312" (7.925 mm) thick

1шт.

17a

L103855

WASHER

THRUST WASHER - tilt cylinder, .078" (1.98 mm) thick

1шт.

18

L47701

WASHER

- .375" (9.525 mm) thick

1шт.

19

L47565

SHAFT

- tilt cylinder pivot

1шт.

L108185

ARM ASSY.

FRAME ASSEMBLY - loader lift, Includes: Ref. 20 - 24

1шт.

20

NSS

NOT SOLD SEPARAT

FRAME - loader lift

1шт.

21

L47560

BUSHING,76.45mm ID x 88.14mm OD x 88.9mm L

- lift, Serial Range: frame-chassis

2шт.

22

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

- lift, Serial Range: frame-bellcrank

4шт.

23

L15802

BUSHING,63.75mm ID x 75.48mm OD x 89mm L

- lift frame to lift cylinder

2шт.

24

D33023

BUSHING,51.02mm ID x 63.5mm OD x 50.8mm L

- lift, Serial Range: frame-bucket

4шт.

25

REF

INSTRUCTION

CYLINDER - left-hand tilt, see Figures 326 and 328

1шт.

26

REF

INSTRUCTION

CYLINDER - right-hand tilt, see Figures 326 and 328

1шт.

27

L45013

WASHER

- special, tilt, Serial Range: cylinder-bellcrank

1шт.

28

L53725

ARTICULATION

BELLCRANK - right-hand, used with block (ref 37), order L100608 bellcrank, R17756 pins, and related parts

1шт.

29

L53726

ARTICULATION

BELLCRANK - left-hand, used with block (ref 37), order use L100608 bellcrank, R17756 pins, and related parts

1шт.

30

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

6шт.

31

L40421

PIN,50.8mm OD x 202.44mm L

- bellcrank to lift frame and tilt cylinder

4шт.

32

L100624

PIN,50.8mm OD x 214.12mm L

- bellcrank to bucket link

2шт.

33

26-880

BOLT,Hex, 1/2" - 13 x 5", Gr 8

- hex head, 1/2" - 13 NC x 5", grade 8

4шт.

34

131-654

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

6шт.

35

61-824

HEX SOC SCREW,1/2"-13 x 1 1/2"

- hex socket head, 1/2" - 13 NC x 1-1/2", if used

4шт.

36

92-8

LOCK WASHER,1/2"

if used 1/2"

4шт.

37

L41558

BLOCK

- spacer, at bellcrank and lift frame, if used

2шт.

38

L14452

SHIM

- block, if used

1шт.

39

L47561

LINK

- bucket, Includes: Ref. 40

2шт.

40

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

- link

4шт.

41

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

4шт.

42

L15800

PIN,50.8mm OD x 274.32mm L

- loader arm and, Serial Range: link-bucket

4шт.

43

26-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

- hex head, 5/8" - 11 NC x 4-1/2"

4шт.

44

131-64

LOCK NUT,5/8"-11, GC

NUT - hex, self-locking, 5/8" - 11 NC

4шт.

45

REF

INSTRUCTION

BUCKET - loader, parts list figures 354 thru 358

1шт.

46

L100608

DIPPER

BELLCRANK - loader, used without ref 37 block

2шт.

48

R17756

ROD,12.7mm OD x 109.54mm L

PIN - bellcrank

6шт.

49

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex head, 1/2" - 13 NC x 2-1/4"

2шт.

50

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

6шт.

51

92-8

LOCK WASHER,1/2"

2шт.

52

L58752

TUBE SPACER,13.53mm ID x 19.05mm OD x 18.28mm L

SPACER - rod, link end

2шт.

53

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4"

4шт.

54

L100623

PIN

- tilt cylinder and lift cylinder, rod end

4шт.

55

L47352

PLATE - lift frame, spacer, if used, see service bulletin 49-81

2шт.

56

L48317

TUBE

BRACKET - lift frame, if used, see service bulletin 49-81

2шт.
