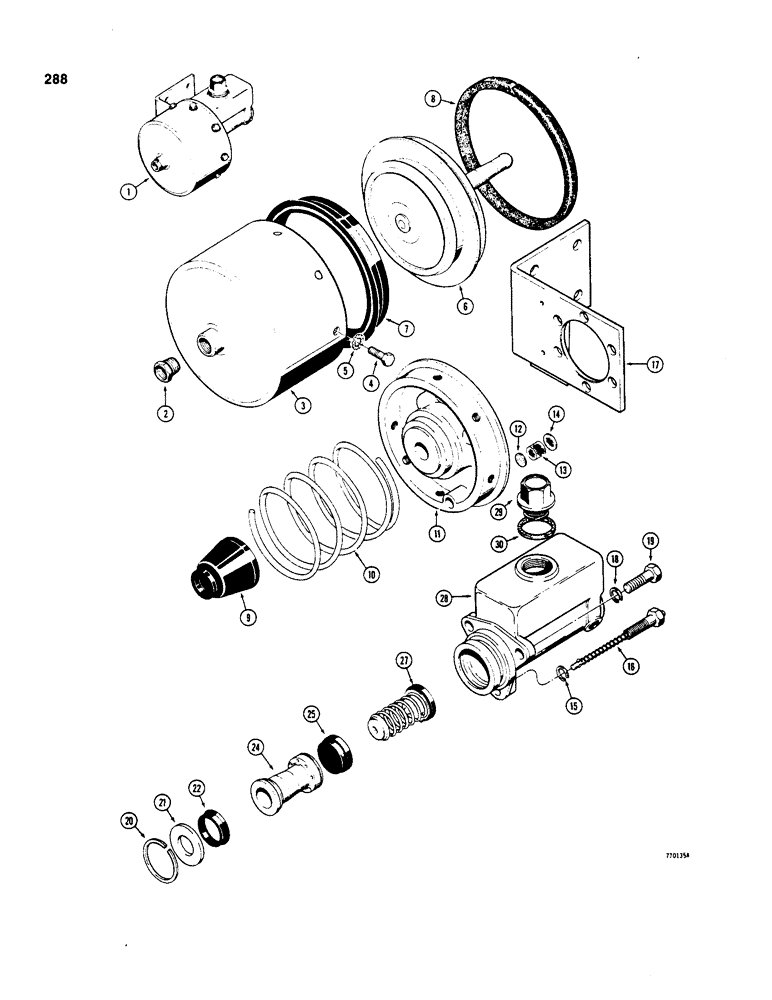

Запчасти Case W20B (288) - L73987 BRAKE ACTUATOR, USED ON W20B (07) - BRAKES

1

L73987

CYLINDER

BRAKE ACTUATOR ASSEMBLY - rear axle, no longer available for service, order L36212 kit, see below, Includes: Ref. 2 - 30

1шт.

Part of brake actuator kit P/N L36212

1шт.

L32533

AIR TANK

AIR CHAMBER ASSEMBLY - brake, Includes: Ref. 2 - 16

1шт.

2

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

BUSHING - 3/8" NPT x 1/4" NPT

1шт.

3

L32534

SHELL

COVER - air chamber assembly

1шт.

4

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

8шт.

5

193-50

LOCK WASHER,Ext-Int Tooth, 5/8"

WASHER - external-internal tooth lock, 5/16"

8шт.

6

L32535

PISTON ASSY.

PISTON AND ROD ASSEMBLY - air chamber

1шт.

7

L32548

CUP ASSY.

SEAL - piston packing, air chamber

1шт.

8

L32549

WIPER

SEAL - piston, air chamber

1шт.

9

L32550

BOOT

- piston rod

1шт.

10

L32536

SPRING

- return, piston

1шт.

L32537

HEAD

ASSEMBLY - air chamber, Includes: Ref. 11 - 14

1шт.

11

NSS

NOT SOLD SEPARAT

HEAD - air chamber

1шт.

12

L32538

SCREEN

- filter

2шт.

13

L32539

FILTER CARTRIDGE

FILTER - air

1шт.

14

L32540

RETAINER

- filter

1шт.

15

92-6

LOCK WASHER,3/8"

1шт.

16

D77620

INDICATOR

- stroke

1шт.

17

L32542

BRACKET

- mounting, brake actuator

1шт.

18

92-6

LOCK WASHER,3/8"

2шт.

19

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

2шт.

D77615

MASTER CYLINDER

ASSEMBLY - hydraulic, Includes: Ref. 20 - 30

1шт.

20

A19760

RING

RETAINING RING - master cylinder

1шт.

Part of repair kit P/N D83208

1шт.

21

A19759

PLATE

- stop, piston

1шт.

22

A19757

CUP

SEAL - piston packing, master cylinder, Includes: Ref. 24 - 30

1шт.

Part of repair kit P/N D83208

1шт.

24

NSS

NOT SOLD SEPARAT

PISTON ASSEMBLY - master cylinder

1шт.

25

NSS

NOT SOLD SEPARAT

SEAT - piston and spring

1шт.

Part of repair kit P/N D83208

1шт.

27

D77616

VALVE

ASSEMBLY - check (includes spring)

1шт.

Part of repair kit P/N D83208

1шт.

28

NSS

NOT SOLD SEPARAT

HOUSING - master cylinder

1шт.

29

D77618

CAP

PLUG - filler, special

1шт.

30

D46693

GASKET

- plug

1шт.

Part of repair kit P/N D83208

1шт.

D83208

KIT

- repairr, Includes: Refs. 20, 22, 25, 27 and 30

1шт.

L36212

MASTER CYLINDER

KIT - brake actuator, includes (1) 218-444 adapter and (1) L107985 brake actuator, parts list Figures 292 and 294, Includes: Ref. 1

1шт.
