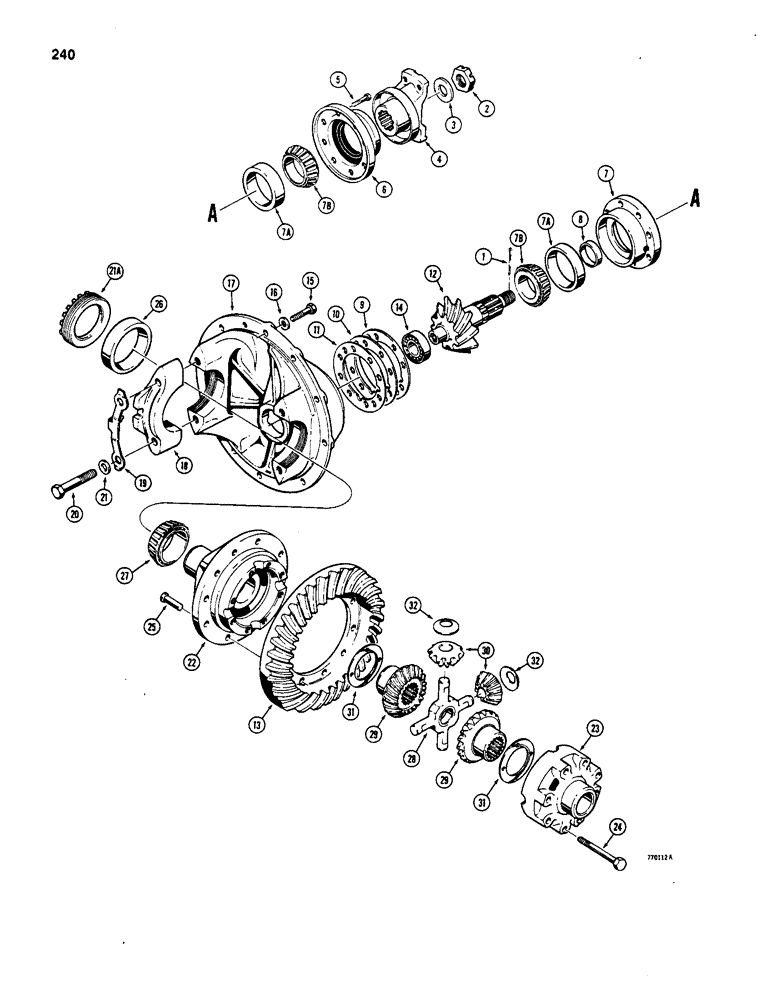

Запчасти Case W20B (240) - L71360 AND L78001 W20B AXLE DIFFERENTIAL (06) - POWER TRAIN

L71360

AXLE

ASSEMBLY - front and rear, see figure 230, Includes: Ref. 1 - 32

2шт.

L78001

AXLE HOUSING

AXLE ASSEMBLY - front and rear, see figure 230, Includes: Ref. 1 - 32

2шт.

N8797

DIFFERENTIAL

ASSEMBLY - axle, Includes: Ref. 1 - 4

1шт.

1

632-135

COTTER PIN,M3.2 x 45

- 3 mm x 45 mm

1шт.

2

D74513

SLOTTED NUT

CASTLE NUT - yoke

1шт.

3

D74512

WASHER

- flat

1шт.

4

D74480

FORK

YOKE AND SLINGER - coupling, all (4) bolt holes are tapped 3/8"-24 UNF.

1шт.

5

514-701

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

- hex head, 10 mm - 1.5 x 45 mm, (10.9), self-locking, Includes: Ref. 6 - 32

8шт.

6

D74479

COVER

AND SEAL - pinion shaft

1шт.

7

D74478

CAGE

AND BEARINGS - pinion shaft, Includes: Ref. 7A & 7B

1шт.

7a

F61284

BEARING CUP

CUP - bearing

1шт.

7b

A44210

ROLLER BEARING,1.75" ID x 1.25"

CONE - bearing

1шт.

D80557

SET

KIT - spacer, set of 7, Includes: Ref. 8

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER - .2145" 95.450 mm)

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER - .2155" (5.475 mm)

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER - .2165" (5.500 mm)

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER - .2175" (5.525 mm)

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER - .2185" (5.550 mm)

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER - .2195" (5.575 mm)

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER - .2244" (5.700 mm)

1шт.

9

D74481

SHIM,.076mm Thk

(.003") .076mm Thk

1шт.

10

D74482

SHIM,0.127mm Thk

(.005") 0.127mm Thk

1шт.

11

D74483

SHIM,0.254mm Thk

(.010") 0.254mm Thk

1шт.

D80555

GEAR WHEEL

GEAR AND PINION - differential, Includes: Ref. 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

PINION SHAFT - differential

1шт.

13

NSS

NOT SOLD SEPARAT

RING GEAR - differential

1шт.

14

A18182

BALL BEARING,27.75mm ID x 62mm OD x 18mm W

BEARING - pinion shaft

1шт.

15

526-5602

BOLT

- hex head, 12 mm - 1.75 x 35 mm (6), self-locking

10шт.

16

D74508

WASHER

- flat

10шт.

D80558

DIFFERENTIAL

CARRIER ASSEMBLY - differential, Includes: Ref. 17 - 21A

1шт.

17

NSS

NOT SOLD SEPARAT

CASE - carrier

1шт.

18

NSS

NOT SOLD SEPARAT

CAP - bearing

2шт.

19

D74484

PLATE ASSY.

PLATE - lock

2шт.

20

826-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

- hex head, 16 mm - 2 x 90 mm (10.9)

4шт.

21

D74504

WASHER

- flat

4шт.

21a

D74477

NUT

- special

2шт.

D74449

CAGE ASSY.

CASE ASSEMBLY, Includes: Ref. 22 - 24

1шт.

22

NSS

NOT SOLD SEPARAT

CASE - flange half

1шт.

23

NSS

NOT SOLD SEPARAT

CASE - plain half

1шт.

24

514-807

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

- hex head, 12 mm - 1.75 x 100 mm (10.9), self-locking

8шт.

25

D74511

RIVET

- ring gear

12шт.

26

A7890

BEARING CUP,112.738 mm OD x 23.81 mm

CUP - bearing

2шт.

27

A37160

ROLLER BEARING

CONE - bearing

2шт.

28

D74476

U-JOINT SPIDER

SPIDER - differential

1шт.

29

D74472

GEAR

SIDE GEAR - differential

2шт.

30

D74473

BEVEL GEAR

PINION GEAR - differential

4шт.

31

D74474

WASHER

THRUST WASHER - side gear

2шт.

32

D74475

WASHER

THRUST WASHER - pinion

4шт.
