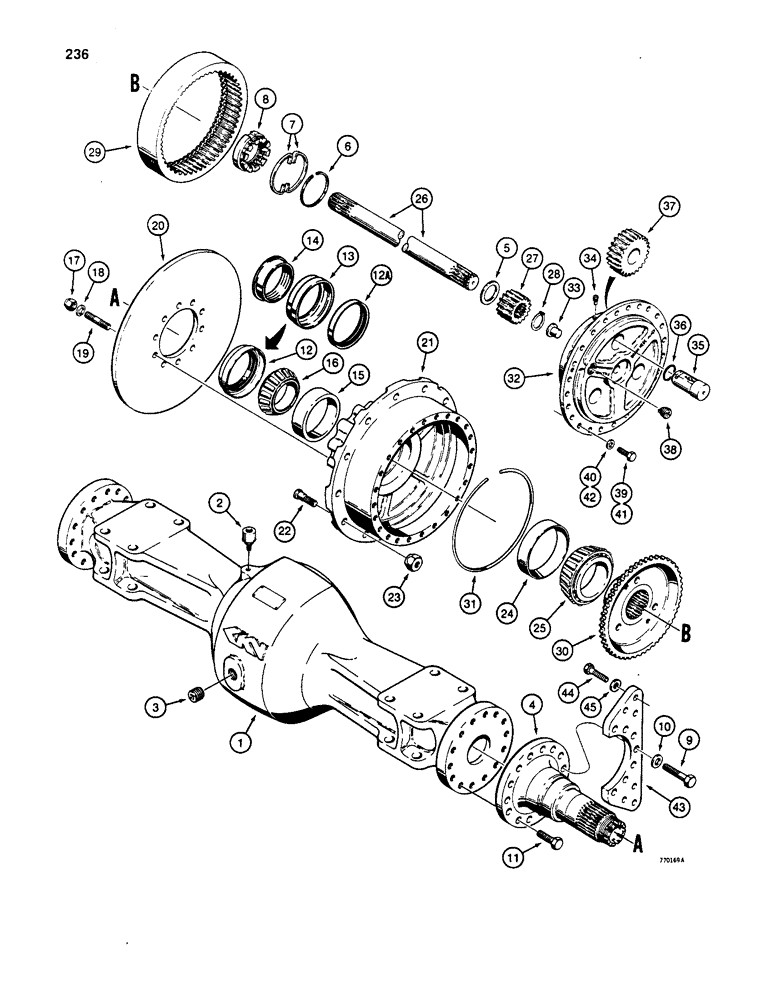

Запчасти Case W20B (236) - W20B L78001 AXLE HOUSING AND PLANETARY, USED ON TRACTOR SN. 9127510 AND AFTER (06) - POWER TRAIN

L78001

AXLE HOUSING

AXLE ASSEMBLY - front and rear, see Figure 230, Includes: Ref. 1 - 26

2шт.

1

D74468

HOUSING

- axle

1шт.

2

D74469

BREATHER

- axle

1шт.

3

K12362

PLUG

- housing

1шт.

4

D77567

SPINDLE

- axle, order N7769 kit

2шт.

N7769

KIT

- spindle, Includes: Ref. 4 - 8

2шт.

4

N6813

SPINDLE

- axle, if used

1шт.

Spindle is induction Hardened.

1шт.

5

D77572

WASHER

THRUST WASHER - spindle

1шт.

6

D77570

RING

- spring

2шт.

7

D77571

VALVE SPRING

RETAINING RING - spring

1шт.

8

D77568

LOCK NUT

- locking

1шт.

9

514-1203

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

- hex head, 20 mm - 2.5 x 80 mm, (10.9), self-locking

14шт.

10

D80556

WASHER

- flat

14шт.

11

514-1202

BOLT,Hex, M20 x 2.5 x 55mm, Cl 10.9

- hex head, 20 mm - 2.5 x 55 mm, (10.9), self-locking

14шт.

12

D80561

OIL SEAL

SEAL - spindle, one piece, 102 mm ID, if used

2шт.

L36208

SLEEVE

KIT - seal, spindle, used with D77567 spindle, see 19-80 service bulletin, Includes: Ref. 12A - 14

2шт.

L105250

SLEEVE

ASSEMBLY - wear, Includes: Ref. 12A & 13

1шт.

N6593

SEAL RETAINER

SEAL ASSEMBLY - spindle, two piece, if used

1шт.

12a

NSS

NOT SOLD SEPARAT

OIL SEAL - spindle, 110 mm ID

1шт.

13

NSS

NOT SOLD SEPARAT

RETAINER - oil seal

1шт.

14

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

15

A7892

BEARING, CUP

CUP - bearing

2шт.

16

A7893

ROLLER BEARING,3.375" ID x 1.172"

CONE - bearing

2шт.

17

D74505

NUT

- lock

20шт.

18

D74504

WASHER

- flat

20шт.

19

D74503

STUD

- hub

20шт.

20

D74461

DISC

- brake

2шт.

21

D74450

HUB

- wheel

2шт.

22

D80560

STUD

BOLT - press in

24шт.

23

A12522

WHEEL NUT

- hex

24шт.

24

A14985

BEARING CUP

CUP - bearing

2шт.

25

A14984

ROLLER BEARING

CONE - bearing

2шт.

26

D74465

SHAFT

- axle, left-hand front and right-hand rear, 39.724" (1009 mm) long

1шт.

26

D74466

SHAFT

- axle, right-hand front and left-hand rear, 42.008" (1067 mm) long

1шт.

REF

INSTRUCTION

AXLE ASSEMBLY - front and rear, Includes: Ref. 27 - 43

2шт.

27

D74464

GEAR

SUN GEAR - planetary

2шт.

28

K12922

RING, SNAP

SNAP RING - ring gear

2шт.

29

D74454

GEAR

RING GEAR - planetary

2шт.

30

D77569

GEAR

RING GEAR - hub

2шт.

31

D74456

RING

SNAP RING - sun gear

2шт.

32

D74451

COVER

SPIDER - planetary

2шт.

33

D74467

PLUG

BUTTON - thrust

2шт.

34

D74502

SET SCREW,M10 x 1.5 x 1.50mm, Gr 8.8

SET SCREW - spider

6шт.

35

D74453

SHAFT

- pinion

6шт.

36

D80559

O-RING,41.6 mm ID

- shaft seal

6шт.

37

D74452

PINION

GEAR - planetary

6шт.

38

D74516

PLUG

- spider

2шт.

39

514-806

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9

- hex head, 12 mm - 1.75 x 35 mm, (10.9), self-locking

46шт.

40

D74508

WASHER

- flat, 13 mm (replaces D74503)

46шт.

41

514-901

BOLT,Hex, M14 x 2 x 35mm, Cl 10.9

- hex head, 14 mm - 2 x 35 mm, (10.9), self-locking, oil drain

2шт.

42

D74509

WASHER

- flat, 15 mm

2шт.

43

D74463

PLATE ASSY.

PLATE - caliper mount

2шт.

44

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex head, 3/4" - 10 NC x 2-1/2", grade 8

24шт.

45

L79179

WASHER

- flat

24шт.
