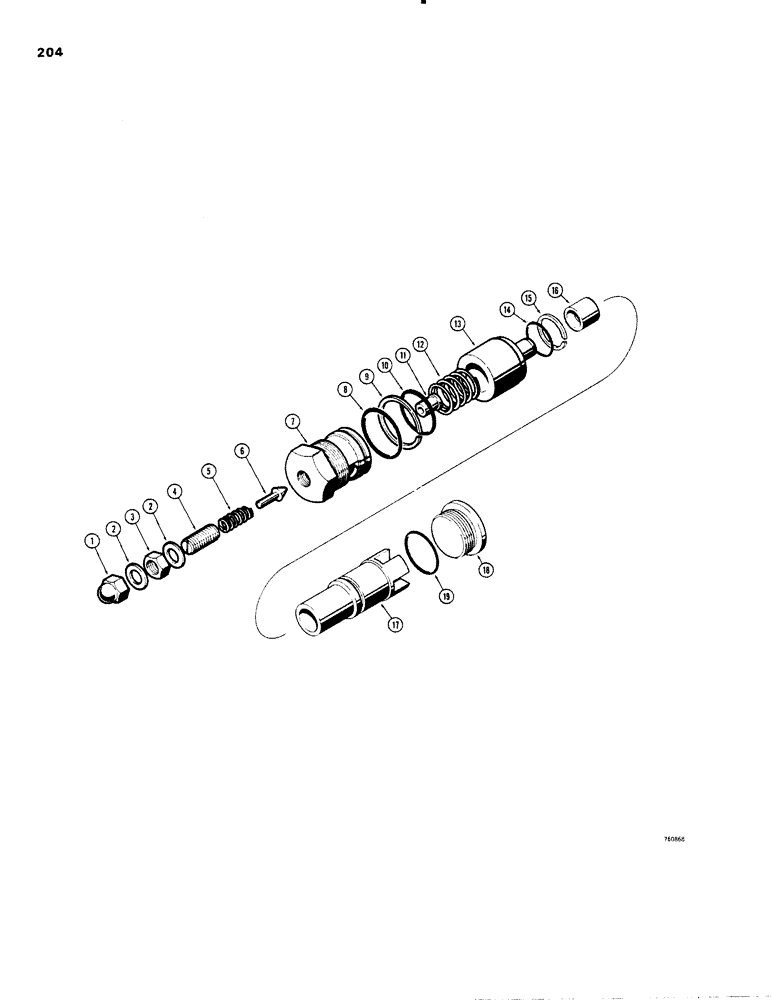

Запчасти Case W20 (204) - MAIN RELIEF VALVE (08) - HYDRAULICS

L32614

VALVE

ASSEMBLY - main relief ( replaced NSS ), Includes: Ref. 1 - 19

1шт.

1

219-514

NUT - acorn (5/16" - 24 NF)

1шт.

2

D26270

WASHER, SEALING

WASHER - special

2шт.

3

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex., jam (5/16" - 24 NF)

1шт.

4

176-298

SCREW,Sl Hdls, 5/16" - 24 x 1 1/2", Flat Pt

- set, relief valve

1шт.

5

D26268

SPRING

- pilot

1шт.

6

D26267

PLUNGER

- relief valve

1шт.

7

L32615

CAP

- relief valve

1шт.

8

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - O-ring, valve cap (Large)

1шт.

9

L32619

RING

- backup, valve cap

1шт.

10

A30843

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

SEAL - O-ring, valve cap (Small)

1шт.

11

D26266

SEAT

- plunger

1шт.

12

L32617

SPRING

- relief valve

1шт.

13

L32620

VALVE POPPET

POPPET - relief valve

1шт.

14

A30843

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

SEAL - O-ring

1шт.

15

L32619

RING

- backup

1шт.

16

L32616

SLEEVE

- relief valve

1шт.

17

L32618

VALVE

SEAT - relief valve

1шт.

18

218-5213

PLUG,Hex Soc, 1 3/16"-12 ORB

end, spool, Includes Ref 19 Hex Soc, 1 3/16"-12 ORB

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.
