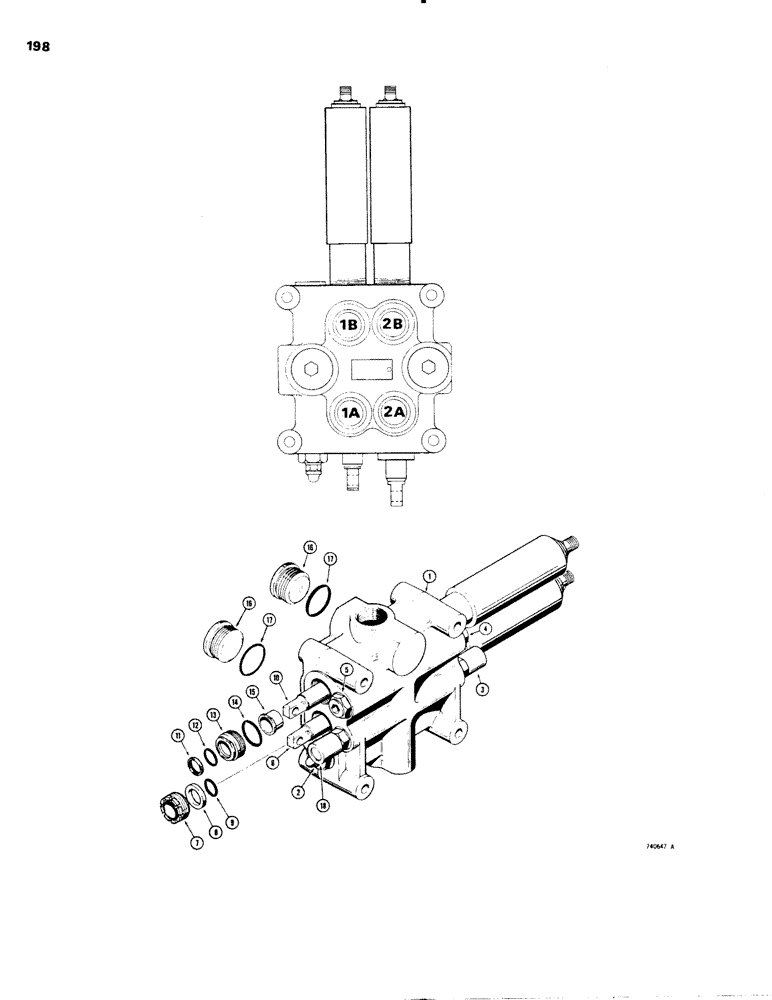

Запчасти Case W20 (198) - L70410 LOADER CONTROL VALVE (2 SPOOL) (08) - HYDRAULICS

L70410

SPOOL

VALVE - loader control, 2 spool, Includes: Ref. 1 - 18

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

2

NSS

NOT SOLD SEPARAT

VALVE - main relief, parts list figure 204

1шт.

3

L35319

VALVE

- secondary relief (Used at port 1B) Parts list figure 206

1шт.

4

L35320

VALVE

- check (Used at port 2B) Parts list figure 206

1шт.

5

L35321

VALVE

- check, regeneration (Used at port 2A) Parts list figure 206

1шт.

6

D63369

SPOOL

- valve, tilt (Parts list figure 202)

1шт.

NSS

NOT SOLD SEPARAT

SEAL ASSEMBLY - tilt spool, Includes: Ref. 7 - 9

1шт.

7

L32608

RETAINER

AND WIPER - spool

1шт.

8

L32604

RETAINER,1.007" ID x 1.672" OD x 0.187"

RETAINER - seal

1шт.

9

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SEAL - "O"ring, special

1шт.

10

D63370

SPOOL

- valve, lift (Parts list figure 200)

1шт.

NSS

NOT SOLD SEPARAT

SEAL ASSEMBLY - lift spool, Includes: Ref. 11 - 15

1шт.

11

A28211

OIL SEAL

WIPER - spool

1шт.

12

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SEAL - "O"ring, small

1шт.

13

L32612

RETAINER

- seal

1шт.

14

L32613

O-RING

SEAL - "O"ring, large

1шт.

15

L32611

SLEEVE

- spool

1шт.

16

218-5215

PLUG,Hex Soc, 1 5/8"-12 ORB

- pipe, hex. socket head, Includes: Ref. 17

1шт.

17

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

18

L35386

VALVE

- secondary relief (Used at port 1A) Parts list figure 206

1шт.
