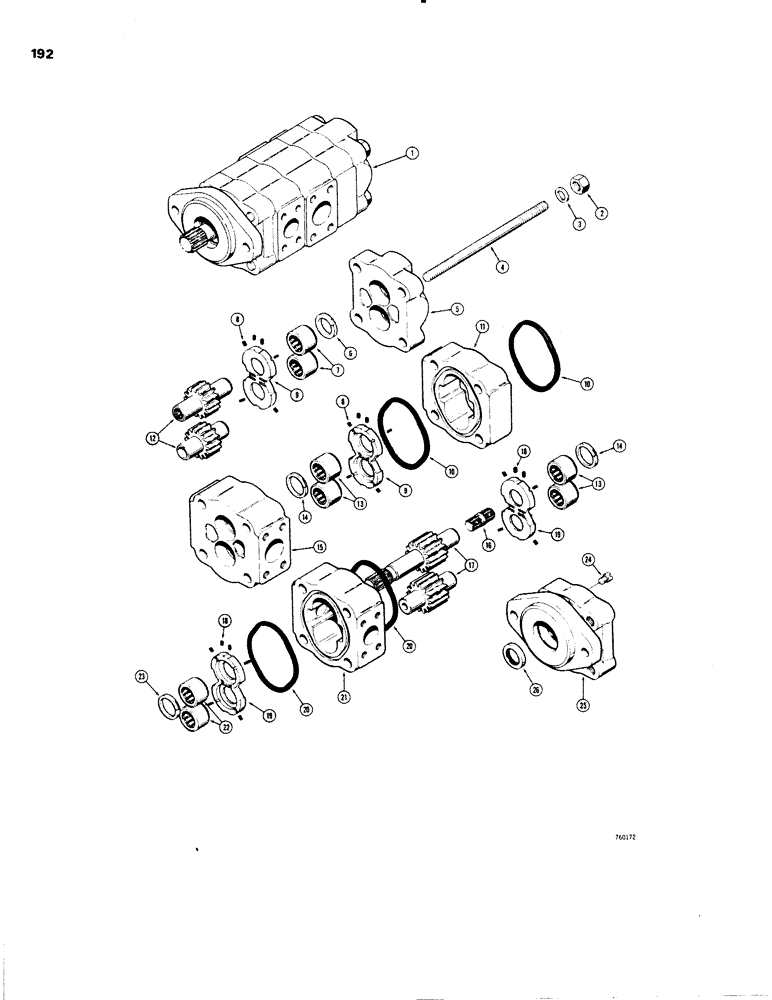

Запчасти Case W20 (192) - L26895 LOADER AND STEERING PUMP (08) - HYDRAULICS

1

L26895

PUMP

ASSEMBLY - hydraulic, loader and steering (Commercial Shearing #C-P50B-14), Includes: Ref. 2 - 26

1шт.

L26895R

REMAN-HYD PUMP

W20 CASE WHEEL LOADER W/POD CAB - NEW YORK STATE SPECIAL

1шт.

L26895C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

86625068

NUT,5/8"-11, G8

- hex. 5/8" - 11 NC

4шт.

3

D31957

WASHER

- special

4шт.

4

L32328

STUD

- special (5/8" - 11 NC x 10-3/4")

4шт.

L32327

KIT

COVER ASSEMBLY - closed end, Includes: Ref. 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

COVER - closed end

1шт.

6

L32319

SEALING RING,32.68mm ID x 44.88mm OD x 3.81mm Thk

RING - seal, bronze

1шт.

7

D31942

ROLLER BEARING,1.29" ID x 1.9375" OD x 1.125"

BEARING - roller

2шт.

L35391

HOUSING

ASSEMBLY - 1" (25.4 mm) gears, closed end, Includes: Ref. 8 - 11

1шт.

8

L32099

SEAL

- pocket, thrust plate

12шт.

9

D31955

PLATE

- thrust

2шт.

10

D41391

O-RING

SEAL - ring, square edge

2шт.

11

L32326

HOUSING

- gear

1шт.

12

L32325

GEAR

S - matched set, drive and driven, 1" (25.4 mm) wide gears

1шт.

L32323

BEARING WASHER

CARRIER ASSEMBLY - bearing, Includes: Ref. 13 - 15

1шт.

13

D31942

ROLLER BEARING,1.29" ID x 1.9375" OD x 1.125"

BEARING - roller

4шт.

14

L32319

SEALING RING,32.68mm ID x 44.88mm OD x 3.81mm Thk

RING - seal, bronze

2шт.

15

NSS

NOT SOLD SEPARAT

CARRIER - bearing

1шт.

16

L32324

SHAFT

- connecting, drive gears

1шт.

17

L32321

GEAR

AND SHAFT SET - 2" (51 mm) wide matched, integral shaft

1шт.

L35390

KIT

HOUSING ASSEMBLY - 2" (51 mm) gears, shaft end, Includes: Ref. 18 - 21

1шт.

18

L32099

SEAL

- pocket, thrust plate

12шт.

19

D31955

PLATE

- thrust

2шт.

20

D41391

O-RING

SEAL - ring, square edge

2шт.

21

NSS

NOT SOLD SEPARAT

HOUSING - gear

1шт.

L32317

COVER

ASSEMBLY - shaft end, Includes: Ref. 22 - 26

1шт.

22

D31942

ROLLER BEARING,1.29" ID x 1.9375" OD x 1.125"

BEARING - roller

2шт.

23

L32319

SEALING RING,32.68mm ID x 44.88mm OD x 3.81mm Thk

RING - seal, bronze

1шт.

24

L32320

PLUG

- special (7/16" - 20 NF)

1шт.

25

NSS

NOT SOLD SEPARAT

COVER - shaft end

1шт.

26

L32318

SEAL

- shaft, double lip

1шт.
